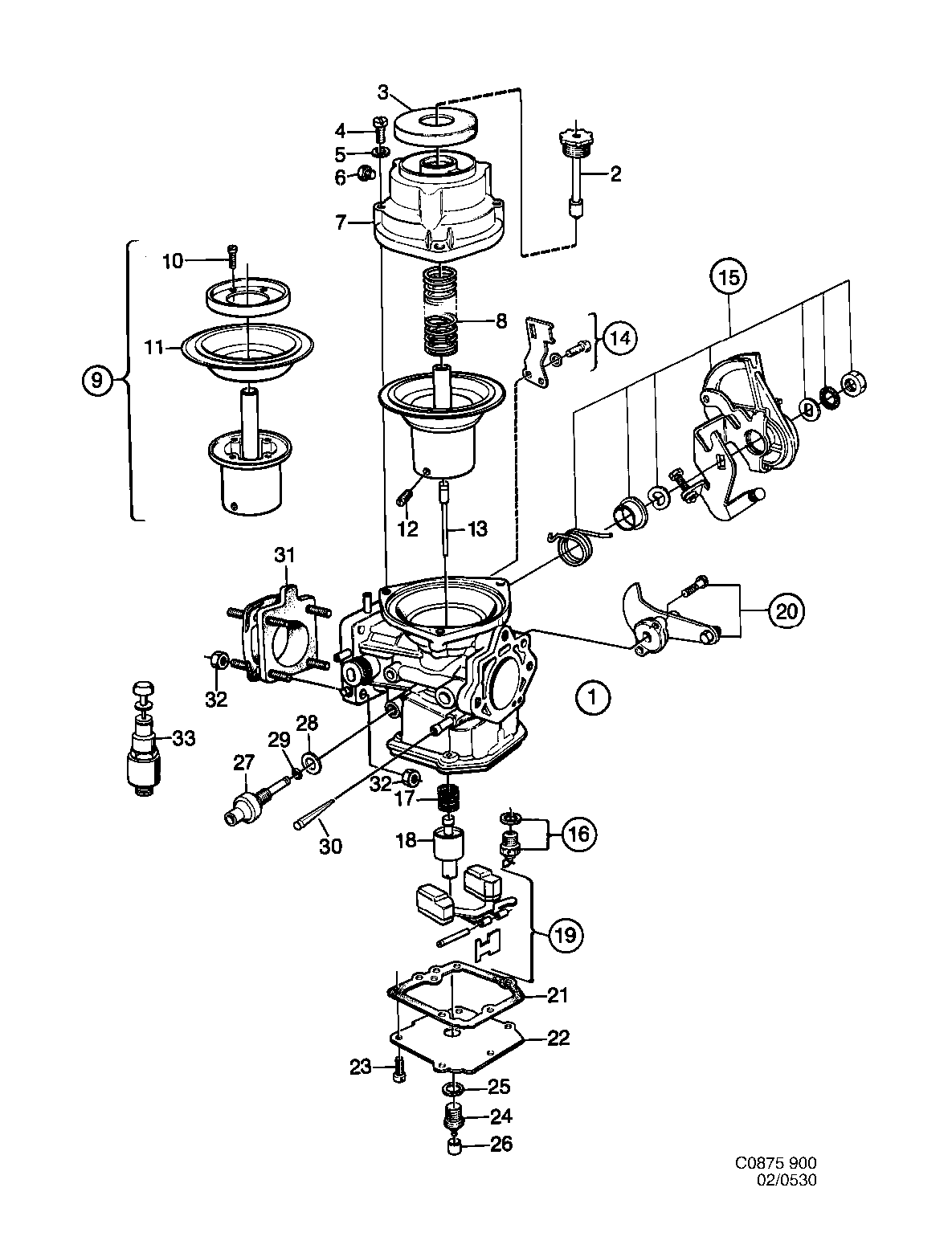

Group 2 Engine, section 530
| Pos | Article | Part No. |
|---|---|---|
| 1 | Carburetor | 7581093 |
| 2 | Damping piston | 7584725 |
| 3 | Cover | 7584717 |
| 4 | Screw | 7584691 |
| 5 | Washer | 7584709 |
| 6 | Screw | 7584683 |
| 7 | Carburetor cover | 7584675 |
| 8 | Spring | 7584667 |
| 9 | Piston | 7584618 |
| 10 | Screw | 7584634 |
| 11 | Diaphragm | 7584626 |
| 12 | Screw | 7584659 |
| 13 | Metering needle | 7584642 |
| 14 | Bracket | 7584733 |
| 15 | Lever | 7584493 |
| 16 | Float valve | 7584535 |
| 17 | Spring | 7584519 |
| 18 | Nozzle | 7584527 |
| 19 | Float | 7584543 |
| 20 | Choke | 7584501 |
| 21 | Gasket | 7584550 |
| 22 | Cover | 7584568 |
| 23 | Screw | 7584600 |
| 24 | Adjustment screw | 7584576 |
| 25 | O-ring | 7584584 |
| 26 | Plug | 7537806 |
| 27 | Valve | 7584741 |
| 28 | Gasket | 7584758 |
| 29 | O-ring | 7584766 |
| 30 | Fuel filter | 7584485 |
| 31 | Flange | 7581473 |
| 32 | Nut | 11900429 (replaces 8151326) |
| 33 | Valve | 9315466 |
