Saab 900 1994-1997 Transmission

Group 2 Engine, section 510

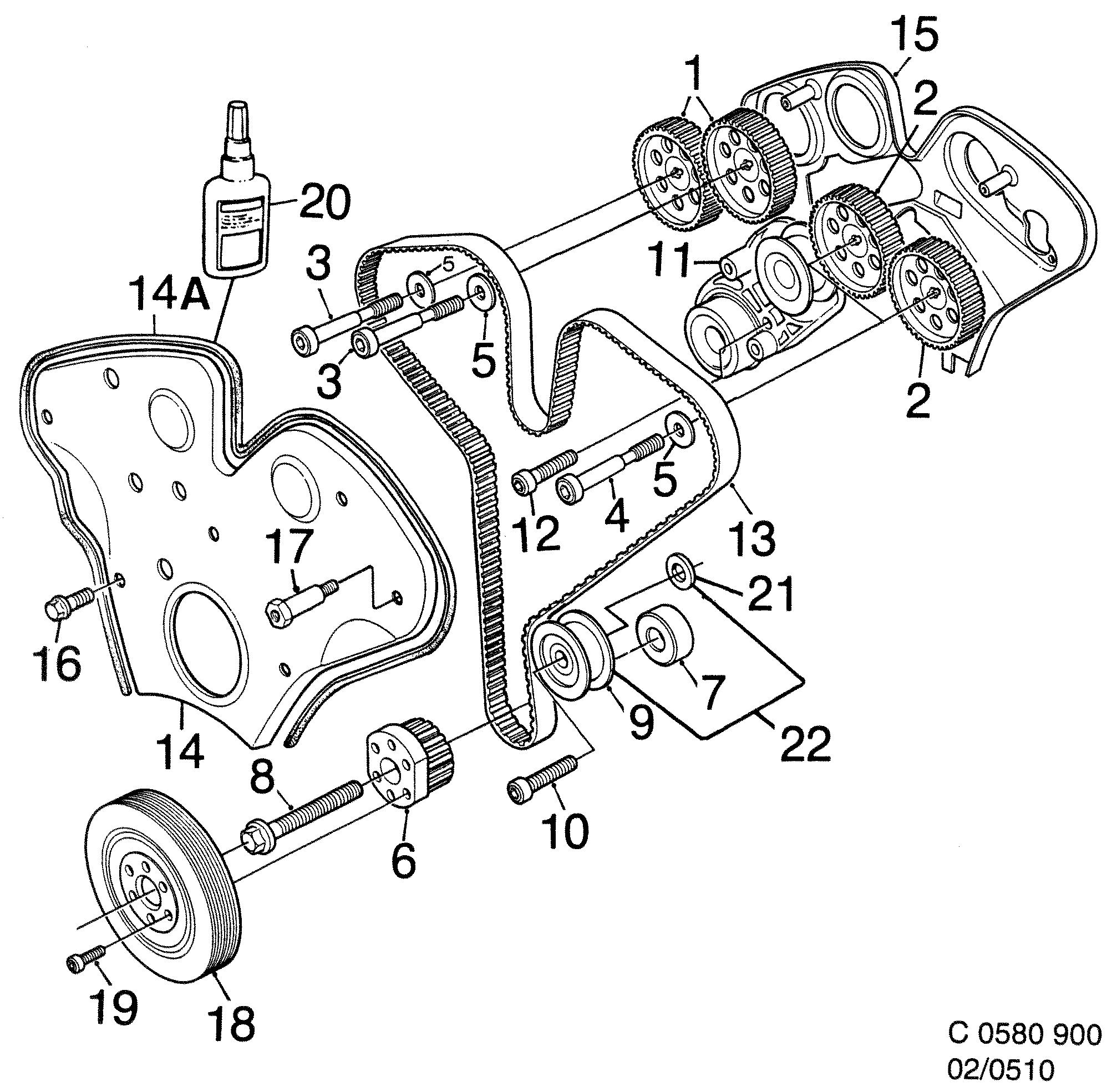

Saab 900 Transmission diagram

Pos	Article	Part No.
1	Chain gear	90466551 (replaces 4503991)
2	Chain gear	90573286 (replaces 4504007)
2	Chain gear	90573286 (replaces 4623898)
3	Screw	90466737
4	Screw	90466738
5	Thrust washer	90108392 (replaces 4504049)
6	Crankshaft gear	90409548 (replaces 4504056)
7	Thrust ring	90298202 (replaces 4504064)
8	Screw	4504072
9	Guide roller	90543739 (replaces 4504080)
9	Guide roller	90543739 (replaces 4770459)
10	Screw	4504106
11	Bracket	11094031 (replaces 4504114)
11	Bracket	11094031 (replaces 4623906)
11	Bracket	11094031 (replaces 4770509)
12	Screw	11094021 (replaces 4504130)
13	Tooth belt	9128500 (replaces 4621348)
13	Tooth belt	9128500 (replaces 4770491)
14	Timing gear casing	90530528 (replaces 4620043)
14	Timing gear casing	90530528 (replaces 4770517)
14A	Seal	90409614 (replaces 4502845)
15	Timing gear casing	90573770 (replaces 4502803)
15	Timing gear casing	90573770 (replaces 4770467)
15	Timing gear casing	90573770 (replaces 4770525)
15	Timing gear casing	90573770 (replaces 4726980)
16	Screw	11093971 (replaces 4502076)
16	Screw	11096901 (replaces 4623724)
17	Screw	4502829
18	Pulley	13101722 (replaces 4443214)
19	Screw	11093601 (replaces 4346854)
20	Glue	93165228 (replaces 4620084)
21	Thrust ring	4770475
21	Washer	90529188
22	Guide roller	90543739 (replaces 4770558)
22	Guide roller	90543739 (replaces 4771085)
