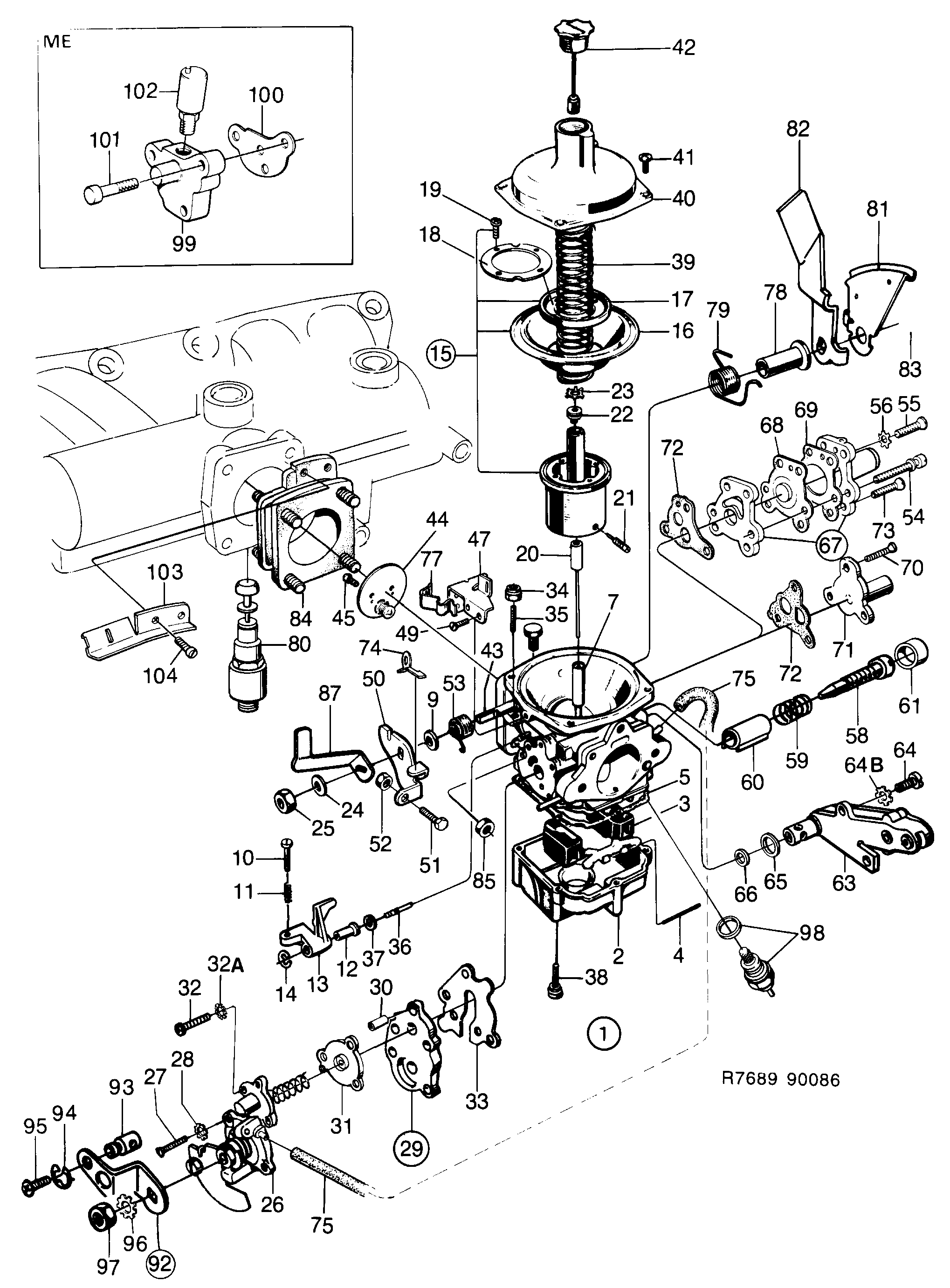

Group 2 Engine, section 490
| Pos | Article | Part No. |
|---|---|---|
| 1 | Carburetor | 7517907 |
| 1 | Carburetor | 7517956 |
| 2 | Float bowl | 8369894 |
| 3 | Float | 8310393 |
| 4 | Float spindle | 8305807 |
| 5 | Gasket | 8305849 |
| 7 | Nozzle | 8365850 |
| 9 | Washer | 8366809 |
| 10 | Idle screw | 8361743 |
| 11 | Spring | 8361768 |
| 12 | Bushing | 8361735 |
| 13 | Lever | 8366411 |
| 14 | Lock ring | 8361776 |
| 15 | Piston | 9306317 |
| 16 | Diaphragm | 8388670 |
| 17 | Bracket | 8351330 |
| 18 | Washer | 8305633 |
| 19 | Screw | 8305641 |
| 20 | Metering needle | 8366312 |
| 21 | Lock screw | 8364200 |
| 22 | Screw | 9308792 |
| 23 | Lock ring | 8364192 |
| 24 | Washer | 8305328 |
| 25 | Nut | 8305344 |
| 26 | Choke | 7521669 |
| 27 | Screw | 9352071 |
| 28 | Washer | 8305484 |
| 29 | Choke | 7521651 |
| 30 | Sleeve | 7508732 |
| 31 | Diaphragm | 7509136 |
| 32 | Screw | 7972789 |
| 32A | Washer | 7515802 |
| 33 | Gasket | 7508203 |
| 34 | Nut | 8364069 |
| 35 | Screw | 8364051 |
| 36 | Shaft | 9355777 |
| 37 | Washer | 9356114 |
| 38 | Screw | 8369902 |
| 39 | Return spring | 8305658 |
| 40 | Cover | 8305666 |
| 41 | Screw | 8308892 |
| 42 | Damping piston | 9359142 |
| 43 | Shutter shaft | 8361602 |
| 44 | Throttle | 7560915 |
| 45 | Screw | 8305369 |
| 47 | Bracket | 7561491 |
| 49 | Screw | 8322364 |
| 50 | Stop arm | 9352105 |
| 51 | Idle screw | 8305294 |
| 52 | Lock nut | 8305302 |
| 53 | Return spring | 8366304 |
| 54 | Screw | 8308983 |
| 55 | Screw | 8309031 |
| 56 | Star washer | 8309049 |
| 58 | Screw | 7503188 |
| 59 | Spring | 7502958 |
| 60 | Sleeve | 7502966 |
| 61 | Plug | 7502974 |
| 63 | Temperature compensator | 9307778 |
| 64 | Screw | 8309080 |
| 64B | Star washer | 8309098 |
| 65 | Seal | 8309064 |
| 66 | Seal | 8309072 |
| 67 | Valve | 8365546 |
| 68 | Diaphragm | 7519572 |
| 69 | Gasket | 7519580 |
| 70 | Screw | 8369654 |
| 71 | Spring retainer | 8369910 |
| 72 | Gasket | 8369647 |
| 74 | Clip | 9310186 |
| 75 | Hose | 7521677 |
| 77 | Clip | 8352395 |
| 78 | Sleeve | 8315392 |
| 79 | Spring | 8355026 |
| 80 | Valve | 9315466 |
| 81 | Cam disc | 9309261 |
| 82 | Lever | 8313793 |
| 83 | Nut | 11900440 (replaces 8074288) |
| 84 | Flange | 7561491 (replaces 7562077) |
| 85 | Nut | 11900429 (replaces 8125882) |
| 87 | Lever | 9313131 |
| 92 | Lever | 7561111 |
| 93 | Sleeve | 8322166 |
| 94 | Retaining ring | 8123473 |
| 95 | Screw | 8019531 |
| 96 | Washer | 8351405 |
| 97 | Nut | 9313008 |
| 98 | Needle valve set | 8361644 |
| 99 | Adapter | 7521453 |
| 102 | Solenoid valve | 8334005 |
| 103 | Bracket | 7561137 |
| 104 | Screw | 8097859 |
| Gasket kit | 8364234 | |
| Gasket kit | 8364242 | |
| Gasket kit | 8364259 | |
| Diaphragm | 7509128 | |
| Repair kit | 8818767 |
