Saab 900 1990-1993 Oil pump, oil filter,

Group 2 Engine, section 470

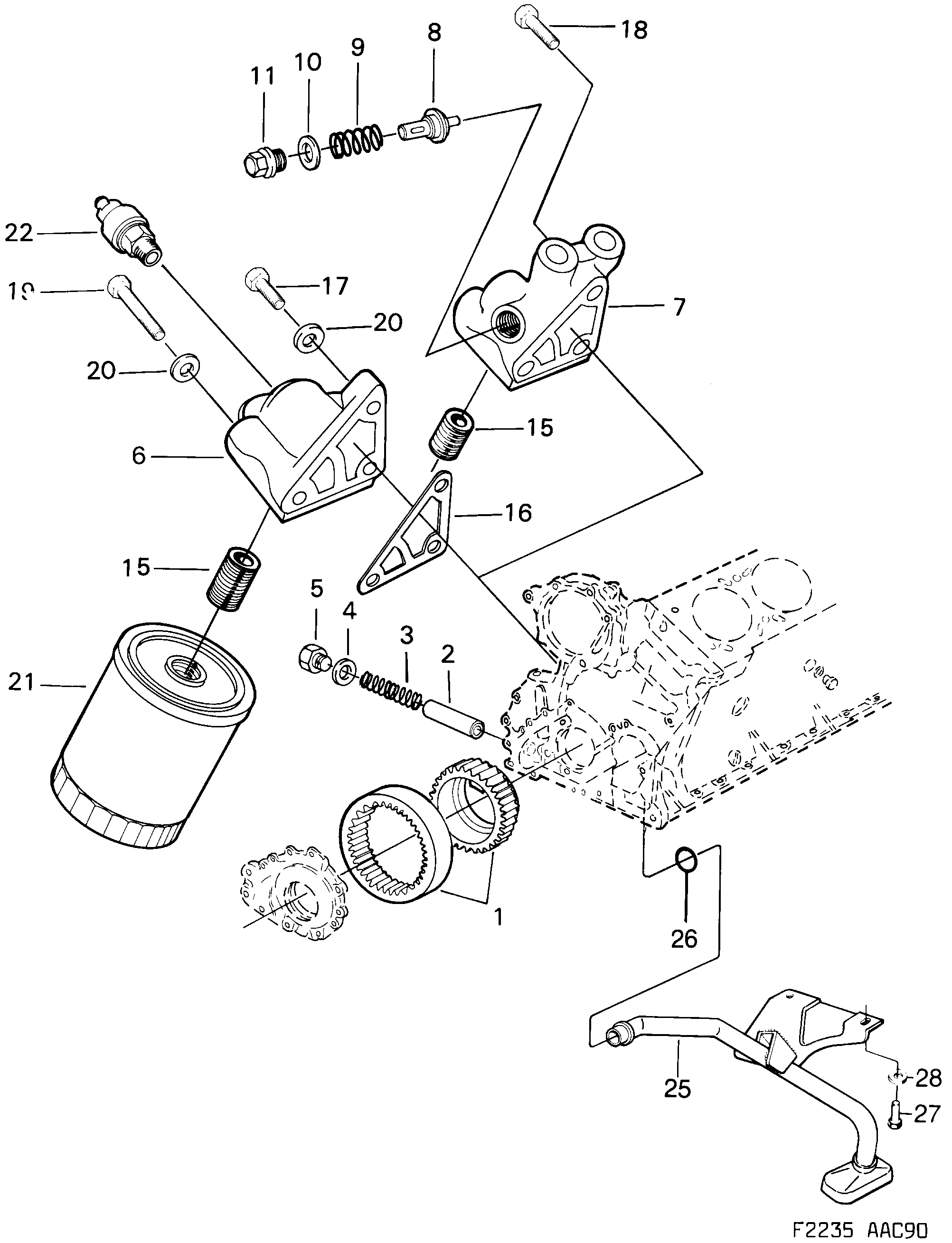

Saab 900 Oil pump, oil filter, diagram

Pos	Article	Part No.
1	Pump kit	8817561
1	Pump kit	9321779
2	Brake piston	7508328
3	Spring	9309998
4	Gasket	9355389
5	Plug	9310004
6	Connector	7560048
7	Connector	7560071
8	Thermostat	55557392 (replaces 9301540)
9	Spring	9300591
10	Gasket	30520353 (replaces 9109182)
11	Plug	7520372
15	Junction pipe	8348609
16	Gasket	7566433
17	Screw	8125197
19	Screw	8125304
21	Filter	93186554 (replaces 9309576)
22	Engine oil pressure sensor	30520357 (replaces 9112459)
25	Oil pipe	7526874
25	Oil pipe	7526502
26	O-ring	9146598 (replaces 7972698)
27	Screw	8082935 (replaces 8082919)
28	Washer	92153033 (replaces 7916497)
	Service kit	8817348
	Service kit	8819864
	Service kit	9321746
	Service kit	8817686
