Saab 900 1994-1997 Cylinder block

Group 2 Engine, section 450

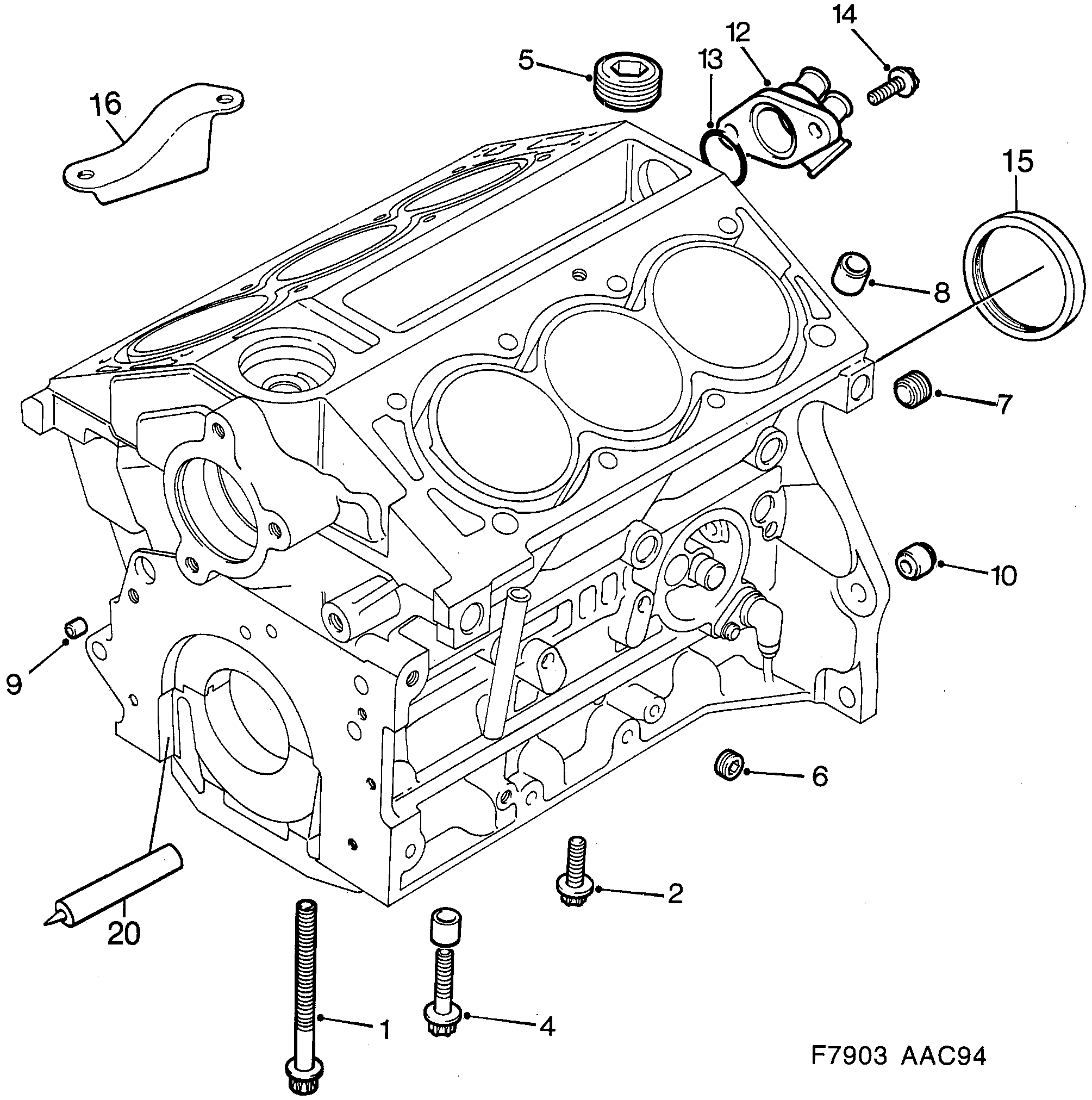

Saab 900 Cylinder block diagram

Pos	Article	Part No.
1	Screw	90412156 (replaces 4500302)
2	Screw	11093961 (replaces 4500351)
4	Screw	90412158 (replaces 4500401)
5	Screw plug	11085731 (replaces 4500229)
6	Screw plug	11095512 (replaces 4500195)
7	Screw plug	11049133 (replaces 4500179)
8	Sleeve	90353654 (replaces 4500245)
9	Sleeve	90351709 (replaces 4500328)
10	Sleeve	90351708 (replaces 4500336)
12	Pipe end	5962923 (replaces 4394797)
13	O-ring	4346839
14	Screw	11093601 (replaces 4346854)
15	Sealing ring	90325572 (replaces 4501201)
15	Sealing ring	90325572 (replaces 4770095)
16	Shield plate	90466550 (replaces 4500344)
20	Flange sealant	93165267 (replaces 8781841)
