Saab 900 1990-1993 Crankshaft

Group 2 Engine, section 440

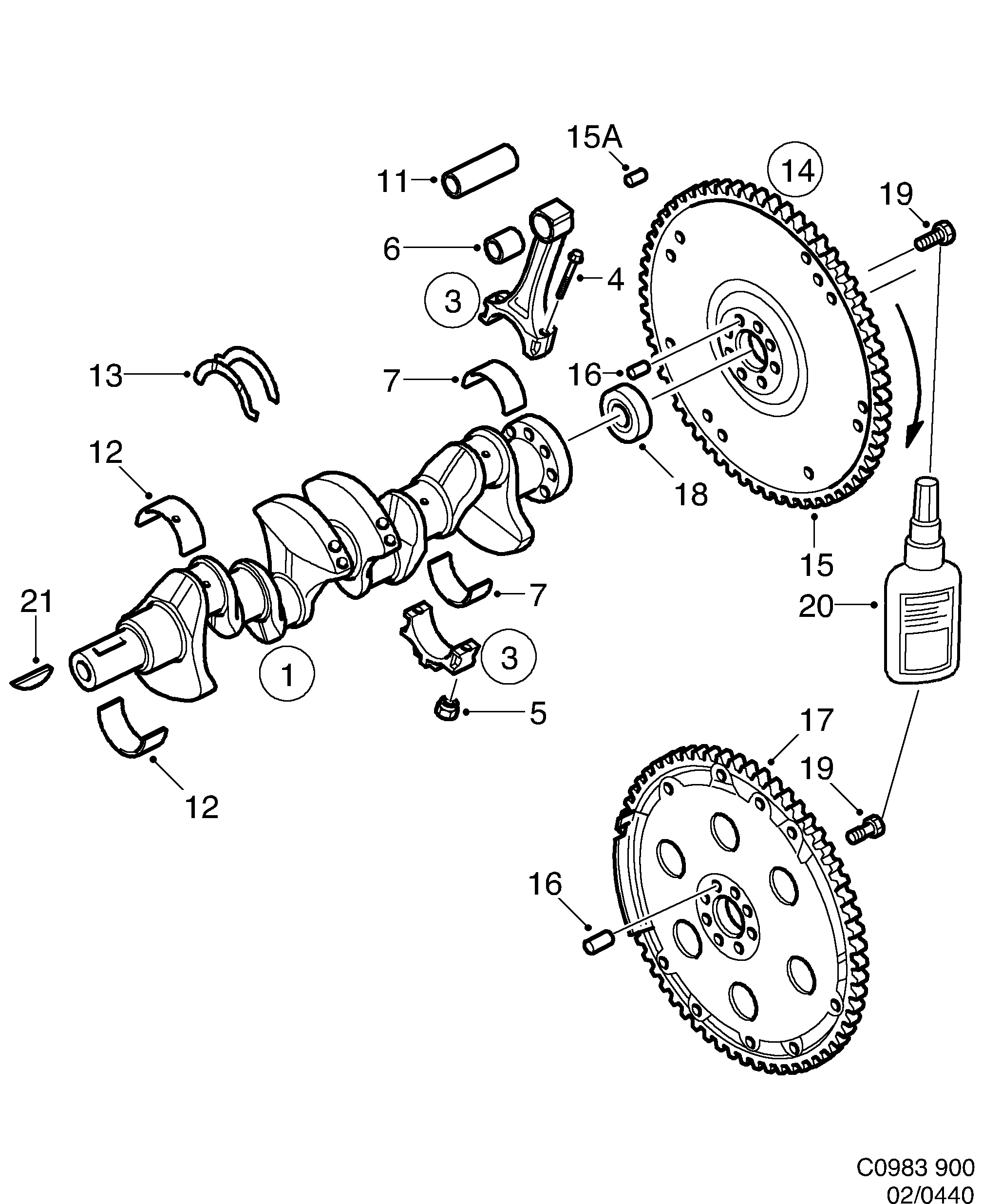

Saab 900 Crankshaft diagram

Pos	Article	Part No.
1	Crankshaft	9321589
	Crankshaft	8787228
	Spacer	7856172
	Screw	9116443
	Key	30520452 (replaces 9116864)
3	Connecting rod	4611182 (replaces 7562259)
4	Screw	7521255
5	Nut	7562275
6	Bushing	8347676
7	Con.bearing	8347650
7	Con.bearing	8355349
7	Con.bearing	8349938
7	Con.bearing	8355356
7	Con.bearing	8349946
7	Con.bearing	8355364
7	Con.bearing	8349953
7	Con.bearing	8349961
12	Main bearing	8350936
12	Main bearing	8355315
12	Main bearing	8350977
12	Main bearing	8355323
12	Main bearing	8350985
12	Main bearing	8355331
12	Main bearing	8350993
12	Main bearing	8351009
13	Thrust washer	8347270
14	Flywheel	8362386
14	Flywheel	7487184
15	Gear ring	8365058
15A	Pin	8034142
16	Pin	8034928
17	Companion disc	7561186
17	Companion disc	9350034
18	Ball bearing	8346868
19	Screw	8859191
19	Screw	8859209
20	Nut lock	7496292
