Saab 900 1986-1989 Oil pump, oil filter,

Group 2 Engine, section 430

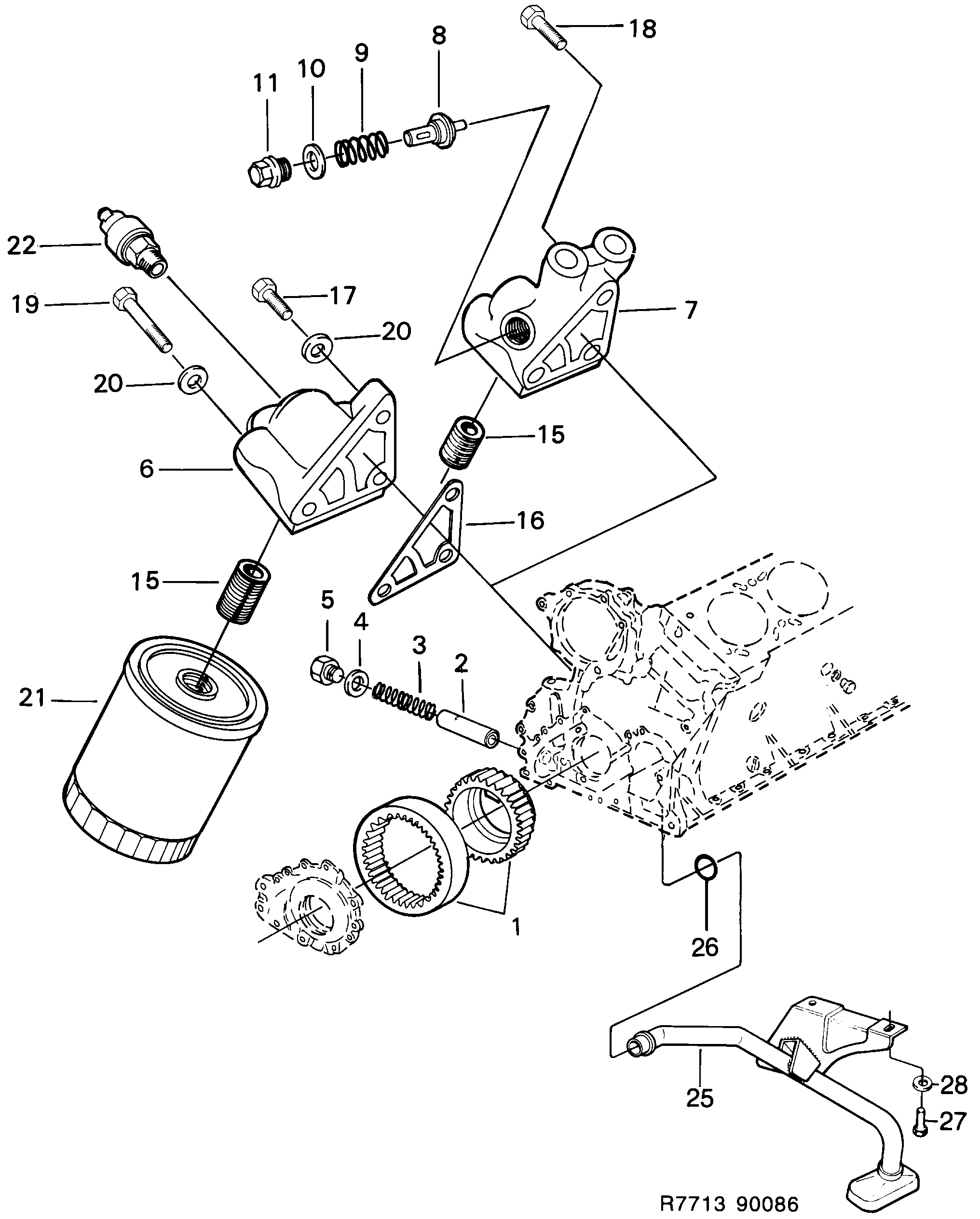

Saab 900 Oil pump, oil filter, diagram

Pos	Article	Part No.
1	Pump kit	8817561
2	Brake piston	7508328
3	Spring	9309998
4	Gasket	9355389
5	Plug	9310004
6	Connector	7560048
7	Connector	7505464
7	Connector	7560071
8	Thermostat	55557392 (replaces 9301540)
9	Spring	9300591
10	Gasket	30520353 (replaces 8124216)
11	Plug	7520372
15	Junction pipe	8348609
16	Gasket	9308180
16	Gasket	7566433
17	Screw	8125197
18	Screw	8125262
19	Screw	8125304
21	Filter	93186554 (replaces 9309576)
22	Oil pressure sensor	30520357 (replaces 7522402)
22	Oil pressure sensor	9309386
25	Oil pipe	7526874
25	Oil pipe	7526502
26	O-ring	9146598 (replaces 7972698)
27	Screw	8082935 (replaces 8082919)
28	Washer	92153033 (replaces 7916497)
	Oil pressure sensor	8818528
	Service kit	8817348
	Service kit	8817678
	Service kit	8817686
