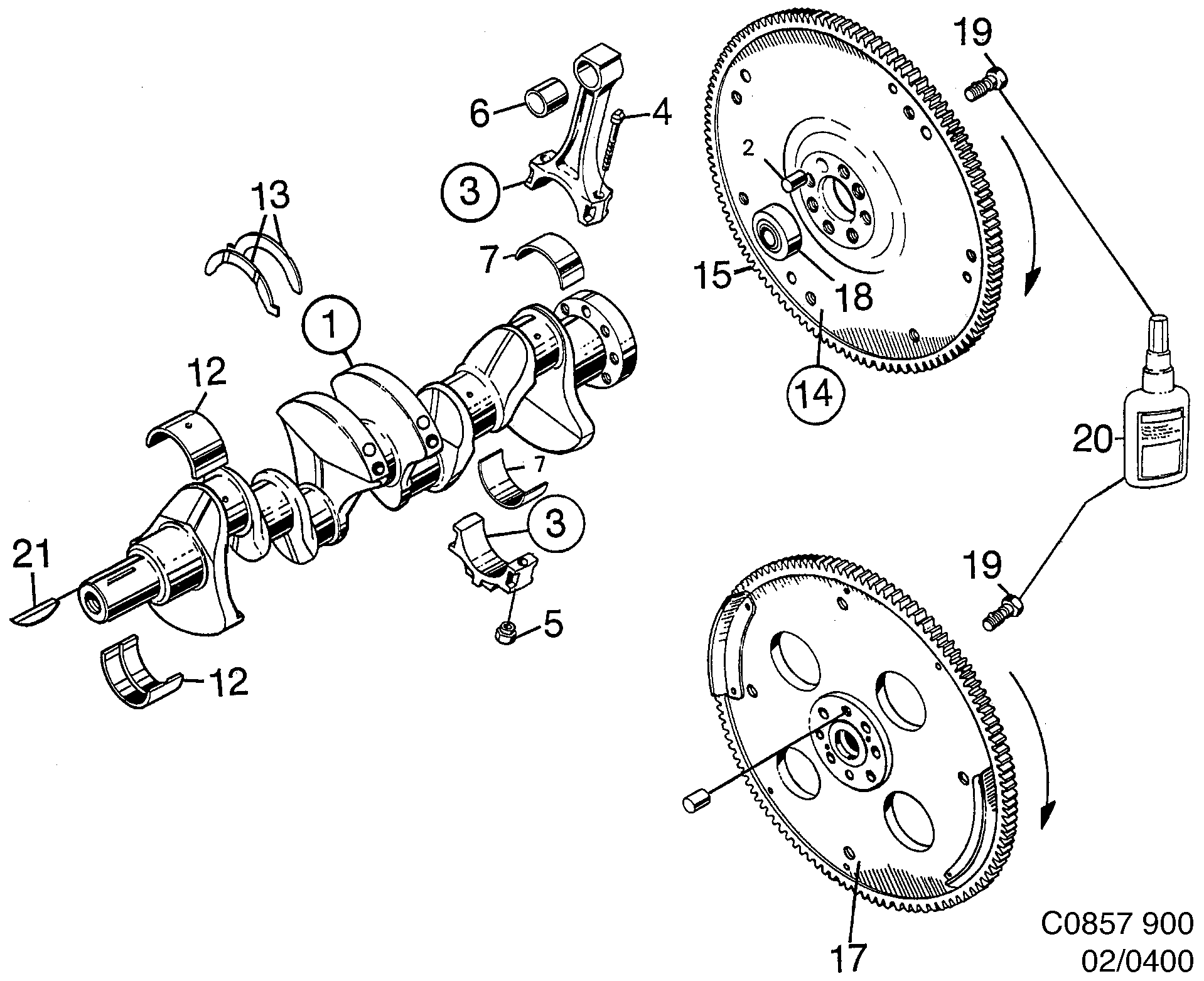

Group 2 Engine, section 400
| Pos | Article | Part No. |
|---|---|---|
| 1 | Crankshaft | 7524978 |
| 1 | Crankshaft | 9321589 |
| Crankshaft | 8787228 | |
| Spacer | 7856172 | |
| Screw | 9116443 | |
| Key | 30520452 (replaces 9116864) | |
| 2 | Pin | 8034928 |
| 3 | Connecting rod | 7501604 |
| 3 | Connecting rod | 4611182 (replaces 7562259) |
| 4 | Screw | 8347106 |
| 4 | Screw | 7521255 |
| 5 | Nut | 7500739 |
| 5 | Nut | 7562275 |
| 6 | Bushing | 8347676 (replaces 8352734) |
| 6 | Bushing | 8347676 |
| 7 | Con.bearing | 8347650 |
| 7 | Con.bearing | 8355349 |
| 7 | Con.bearing | 8349938 |
| 7 | Con.bearing | 8355356 |
| 7 | Con.bearing | 8349946 |
| 7 | Con.bearing | 8355364 |
| 7 | Con.bearing | 8349953 |
| 7 | Con.bearing | 8349961 |
| 12 | Main bearing | 8355315 |
| 12 | Main bearing | 8350977 |
| 12 | Main bearing | 8355323 |
| 12 | Main bearing | 8350985 |
| 12 | Main bearing | 8355331 |
| 12 | Main bearing | 8350993 |
| 12 | Main bearing | 8351009 |
| 13 | Thrust washer | 8347270 |
| 14 | Flywheel | 8362386 |
| 15 | Gear ring | 8365058 |
| 17 | Companion disc | 7561186 |
| 18 | Ball bearing | 8346868 |
| 19 | Screw | 7561749 |
| 19 | Screw | 9314881 |
| 20 | Nut lock | 7496292 |
