Saab 900 1994-1997 Cylinder head

Group 2 Engine, section 390

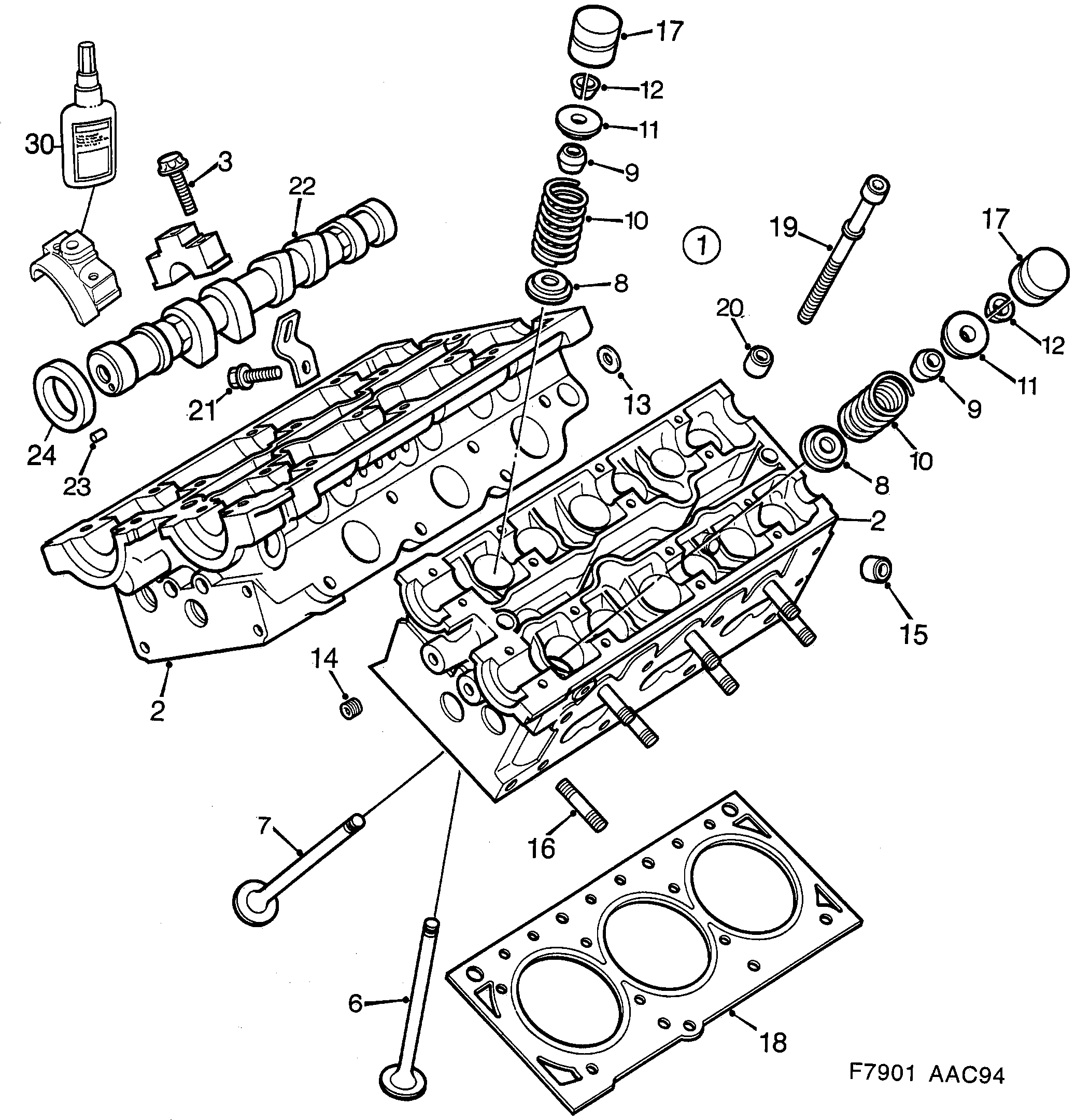

Saab 900 Cylinder head diagram

Pos	Article	Part No.
1	Cylinder head	8822090
1	Cylinder head	8828782 (replaces 8822108)
2	Cylinder head	4500534
2	Cylinder head	8828782 (replaces 4500542)
3	Screw	11093782 (replaces 4500732)
6	Inlet valve	90412277 (replaces 4500849)
6	Inlet valve	8822355
6	Inlet valve	8822363
7	Exhaust valve	90410813 (replaces 4500864)
7	Exhaust valve	8822371
7	Exhaust valve	8822389
8	Spring washer	90410740 (replaces 4500880)
9	Seal	90410741 (replaces 4500898)
10	Valve spring	90448050 (replaces 4500906)
11	Valve spring washer	90354649 (replaces 4500914)
12	Valve cone	90354648 (replaces 4500922)
13	Sealing washer	90502542 (replaces 4770004)
14	Screw plug	11095512 (replaces 4500195)
15	Sleeve	90500009 (replaces 4500823)
15	Sleeve	90500009
16	Stud	90106924 (replaces 4500831)
16	Stud	90106924 (replaces 4773370)
17	Tappet	9117903 (replaces 4500930)
17	Tappet	9117903 (replaces 4770301)
18	Gasket	4773487 (replaces 4501045)
18	Gasket	4773487 (replaces 4770293)
18	Gasket	4773487
19	Screw	90466480 (replaces 4501060)
20	Screw	11093601 (replaces 4346854)
21	Screw	11093611 (replaces 4501110)
22	Camshaft	90540003 (replaces 4500963)
22	Camshaft	90540002 (replaces 4770327)
22	Camshaft	90540002 (replaces 4770343)
23	Sleeve	90501111 (replaces 4501003)
23	Sleeve	90501111 (replaces 4621314)
24	Sealing ring	90298390 (replaces 4503983)
30	Nut lock	7496268
