Saab 900 1994-1998 Crankshaft Piston

Group 2 Engine, section 360

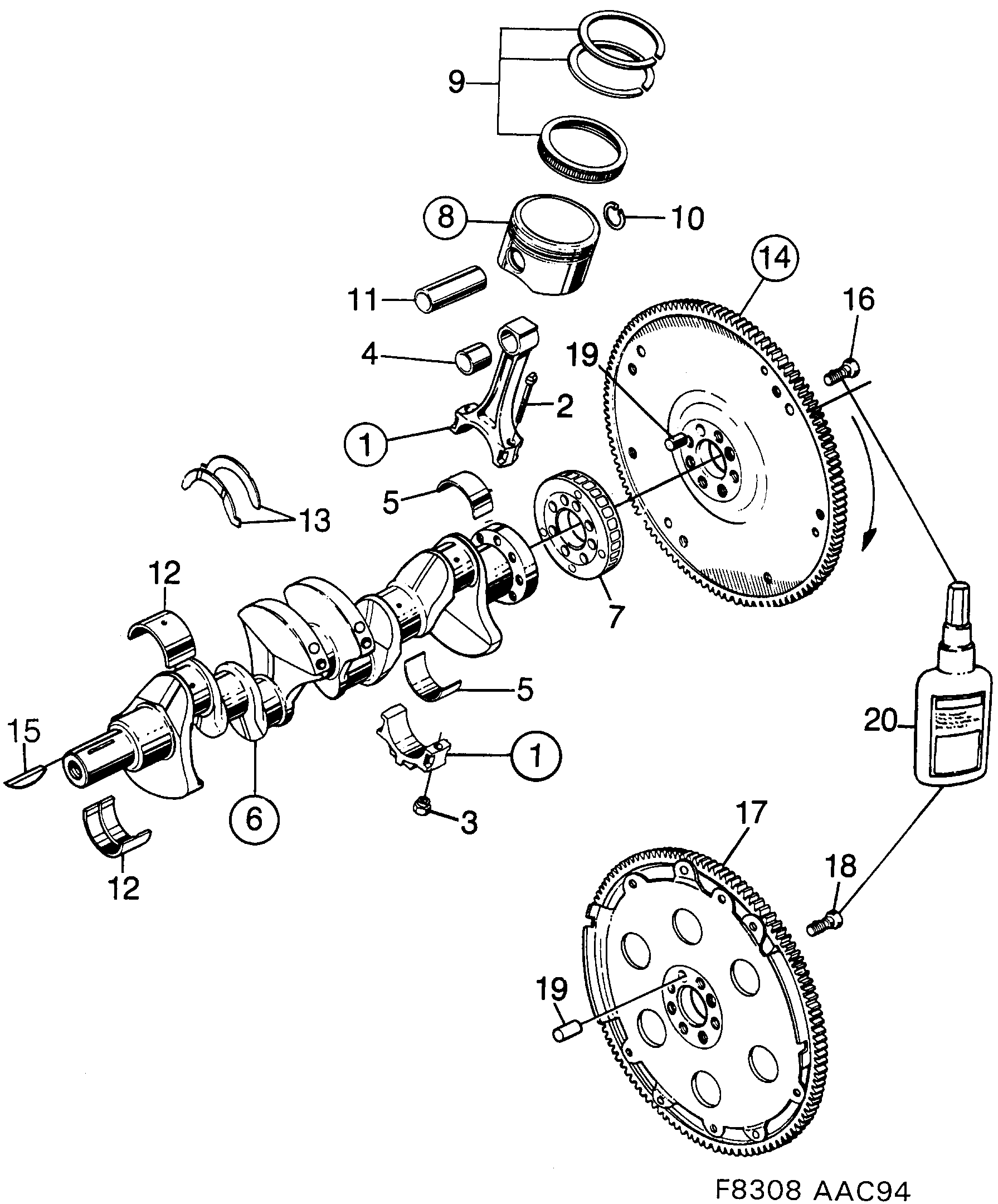

Saab 900 Crankshaft Piston diagram

Pos	Article	Part No.
1	Connecting rod kit	5959028
2	Screw	7480643
3	Nut	7480684
4	Bushing	8347676
5	Con.bearing	55557370 (replaces 9145459)
5	Con.bearing	30551894 (replaces 9145467)
5	Con.bearing	30551895 (replaces 9145475)
6	Crankshaft	9139403
6	Crankshaft	9139460
8	Piston	9149154
8	Piston	9149162
8	Piston	9149170
8	Piston	9149188
8	Piston	9149196
8	Piston	9149360
8	Piston	9149378
8	Piston	9149386
8	Piston	9149394
8	Piston	9149402
8	Piston	9149295
8	Piston	9149303
8	Piston	30553521 (replaces 9149311)
8	Piston	9149329
8	Piston	9149337
9	Piston ring kit	9149105
9	Piston ring kit	9149113
9	Piston ring kit	9149121
9	Piston ring kit	9149105 (replaces 9167776)
9	Piston ring kit	9149113 (replaces 9167891)
9	Piston ring kit	9167909
10	Lock ring	55557265 (replaces 8859514)
10	Lock ring	55557265 (replaces 9185794)
11	Piston pin	7568934
11	Piston pin	93166808
12	Main bearing	55557369 (replaces 9145418)
12	Main bearing	30551891 (replaces 9145426)
12	Main bearing	30551892 (replaces 9145434)
13	Thrust washer	7588783
14	Flywheel	9176991 (replaces 9143454)
14	Flywheel	9179136
16	Screw	30551806 (replaces 9131160)
17	Companion flange	9167917
18	Screw	9139940
19	Pin	30558708 (replaces 9145590)
20	Nut lock	7496292
