Saab 900 1990-1993 Transmission

Group 2 Engine, section 320

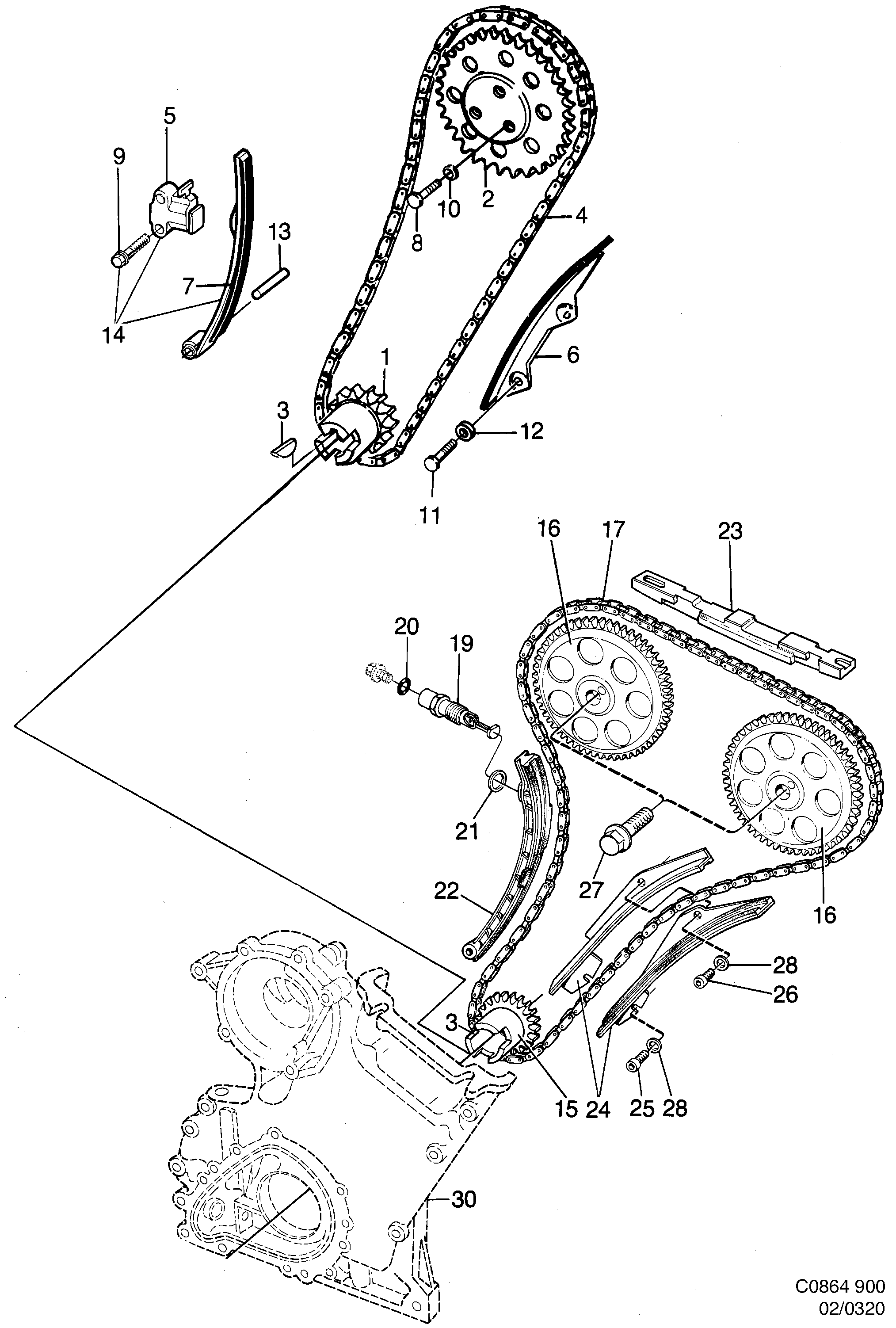

Saab 900 Transmission diagram

Pos	Article	Part No.
1	Chain gear	7518632
2	Chain gear	7563166
3	Key	8347122
3	Key	30520452 (replaces 9116864)
4	Chain	9359779
5	Chain tensioner	9358672
6	Chain guide	7507155
7	Chain guide	9358680
8	Screw	8082935
9	Screw	8125064
10	Washer	32000432 (replaces 9166372)
11	Screw	9166273
12	Washer	9166364
13	Pin	8034761
14	Chain tensioner	8817405
15	Chain gear	7518640
16	Chain gear	7500127
17	Chain	7500697
17	Chain	9321837
19	Chain tensioner	7585086
20	O-ring	8048670 (replaces 8109571)
21	Seal	7508690
22	Chain guide	8858276 (replaces 9117805)
22	Chain guide	8858276 (replaces 9133513)
22	Chain guide	8858276
23	Chain guide	30518277 (replaces 8859324)
24	Chain guide	9133505 (replaces 8859092)
24	Chain guide	9133505
25	Screw	9166299
26	Screw	9166307
27	Screw	9107541
28	Washer	8029951
