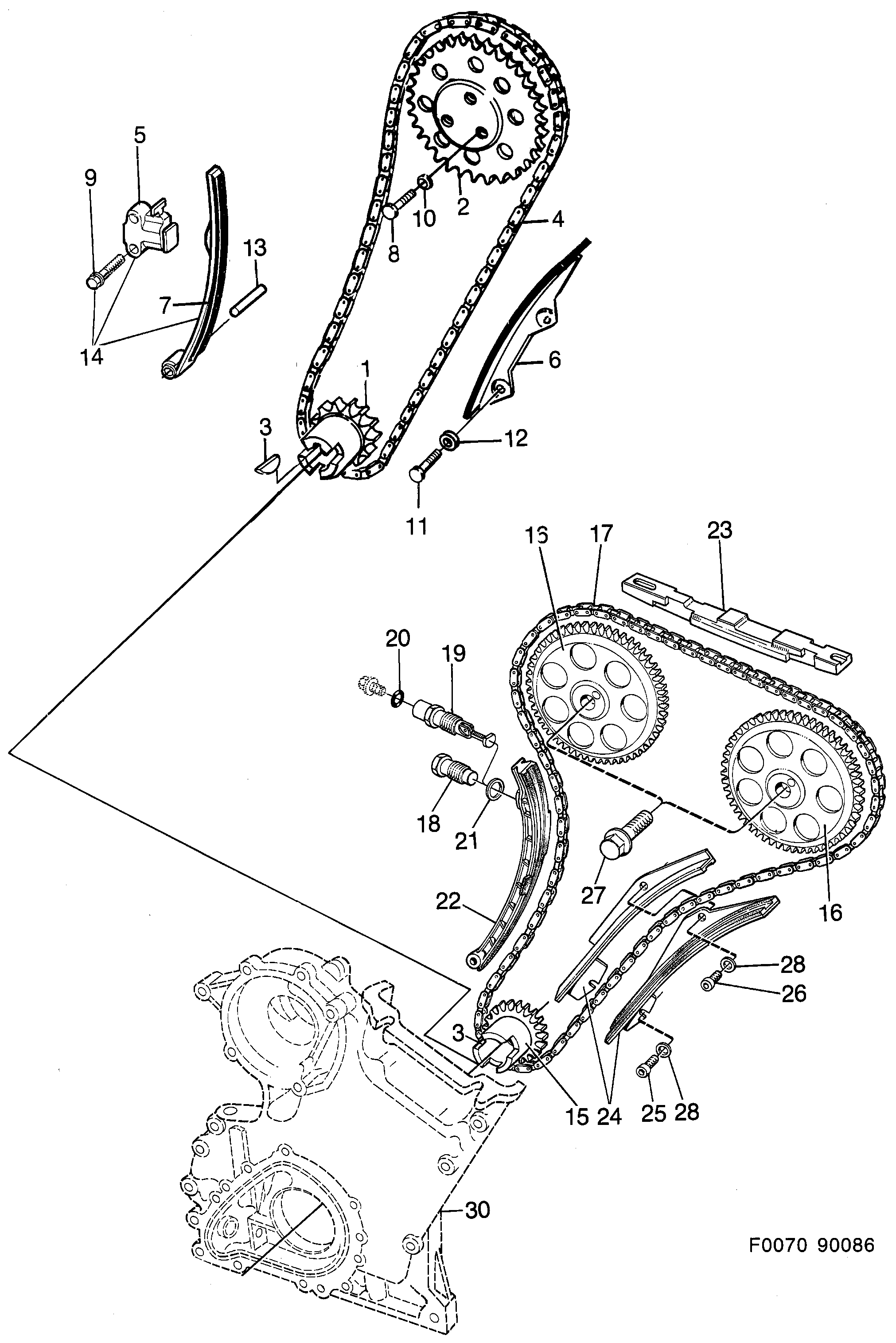

Group 2 Engine, section 310
| Pos | Article | Part No. |
|---|---|---|
| 1 | Chain gear | 7518632 |
| 2 | Chain gear | 9306747 |
| 2 | Chain gear | 7563166 |
| 3 | Key | 8347122 |
| 4 | Chain | 9359779 |
| 5 | Chain tensioner | 9358672 |
| 6 | Chain guide | 7507155 |
| 7 | Chain guide | 9358680 |
| 8 | Screw | 8082935 |
| 9 | Screw | 8125064 |
| 10 | Washer | 92153033 (replaces 8029985) |
| 11 | Screw | 8019895 |
| 12 | Washer | 8029951 |
| 13 | Pin | 8034761 |
| 14 | Chain tensioner | 8817405 |
| 15 | Chain gear | 7518640 |
| 16 | Chain gear | 7500127 |
| 17 | Chain | 7500697 |
| 17 | Chain | 9321837 |
| 18 | Chain tensioner | 7585086 (replaces 9358854) |
| 19 | Chain tensioner | 7585086 |
| 20 | O-ring | 8048670 (replaces 8109571) |
| 21 | Seal | 7508690 |
| 22 | Chain guide | 8858276 (replaces 7500150) |
| 23 | Chain guide | 7505845 |
| 23 | Chain guide | 30518277 (replaces 8859324) |
| 24 | Chain guide | 7560253 |
| 24 | Chain guide | 9133505 (replaces 7520315) |
| 25 | Screw | 8097883 |
| 25 | Screw | 8019929 |
| 26 | Screw | 8019960 |
| 27 | Screw | 9107541 (replaces 3037140) |
