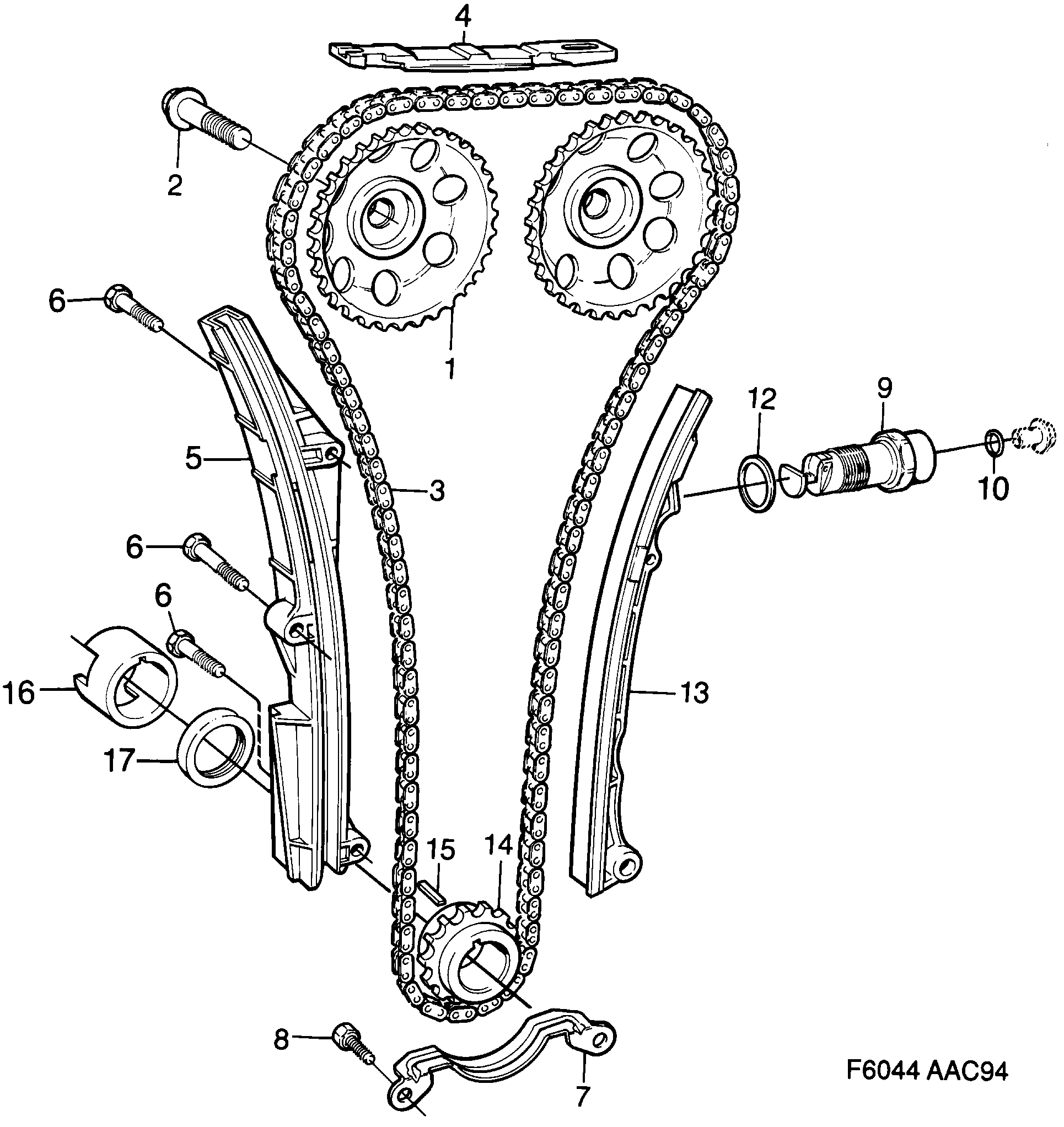

Group 2 Engine, section 300
| Pos | Article | Part No. |
|---|---|---|
| 1 | Chain gear | 9115205 |
| 2 | Screw | 9107541 |
| 3 | Chain | 9131145 |
| 3 | Chain | 9321845 |
| 4 | Chain guide | 30518277 (replaces 8859324) |
| 5 | Chain guide | 55557270 (replaces 9145350) |
| 6 | Screw | 8059628 |
| 6 | Hexagon screw | 92150006 (replaces 7978141) |
| 7 | Chain protection | 9136532 |
| 8 | Screw | 7971294 |
| 8 | Screw | 11900353 (replaces 7978091) |
| 9 | Chain tensioner | 7585086 |
| 10 | O-ring | 8048670 |
| 12 | Seal | 7508690 |
| 13 | Chain guide | 55557269 (replaces 9145376) |
| 14 | Chain gear | 30520419 (replaces 9115197) |
| 15 | Key | 30520452 (replaces 9116864) |
| 16 | Companion flange | 30551799 (replaces 9129727) |
| 17 | Spacer | 30551805 (replaces 9131137) |
