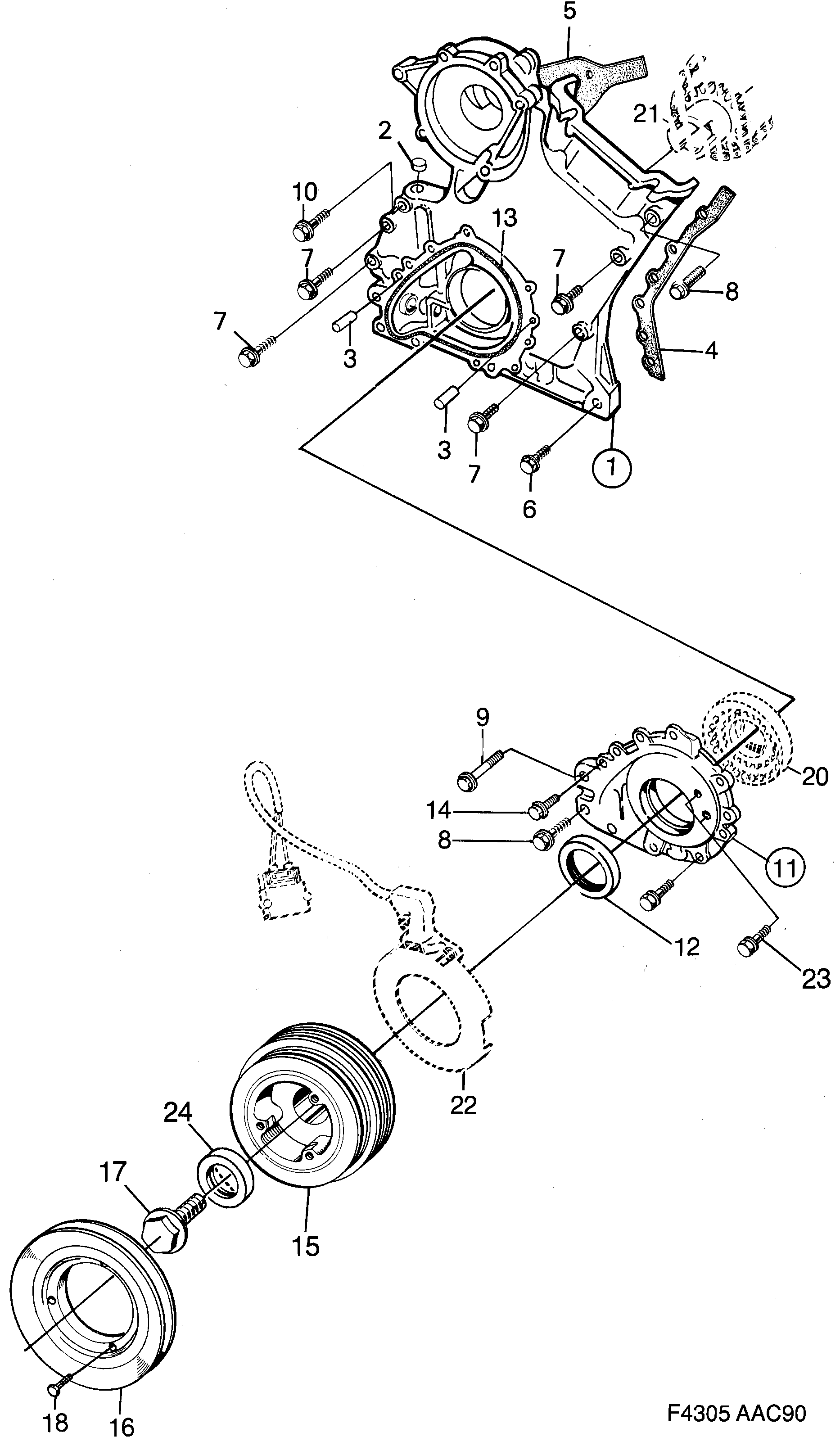

Group 2 Engine, section 290
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cover | 4774444 (replaces 7519358) |
| 2 | Plug | 8123176 |
| 3 | Pin | 8034456 |
| 3 | Pin | 7949696 |
| 4 | Gasket | 9321795 (replaces 7563646) |
| 4 | Flange sealant | 90297970 |
| 5 | Gasket | 9321795 (replaces 9117060) |
| 6 | Screw | 8356917 |
| 7 | Screw | 8125239 |
| 8 | Screw | 8125247 |
| 9 | Screw | 8125262 |
| 10 | Screw | 9354960 |
| 11 | Oil pump housing | 7586993 |
| 12 | Seal | 55557231 (replaces 9309204) |
| 13 | Seal | 30543193 (replaces 8369829) |
| 13 | O-ring | 30543193 (replaces 9125824) |
| 14 | Screw | 8125049 |
| 15 | Pulley | 7519390 |
| 15 | Pulley | 9107665 |
| 15 | Pulley | 7484983 |
| 15 | Pulley | 8789315 |
| 16 | Pulley | 9330184 |
| 17 | Screw | 8348534 |
| 17 | Screw | 9116443 |
| 18 | Screw | 8019945 |
| 23 | Screw | 8788150 |
| 23 | Screw | 9127432 |
| 24 | Spacer | 7856172 |
