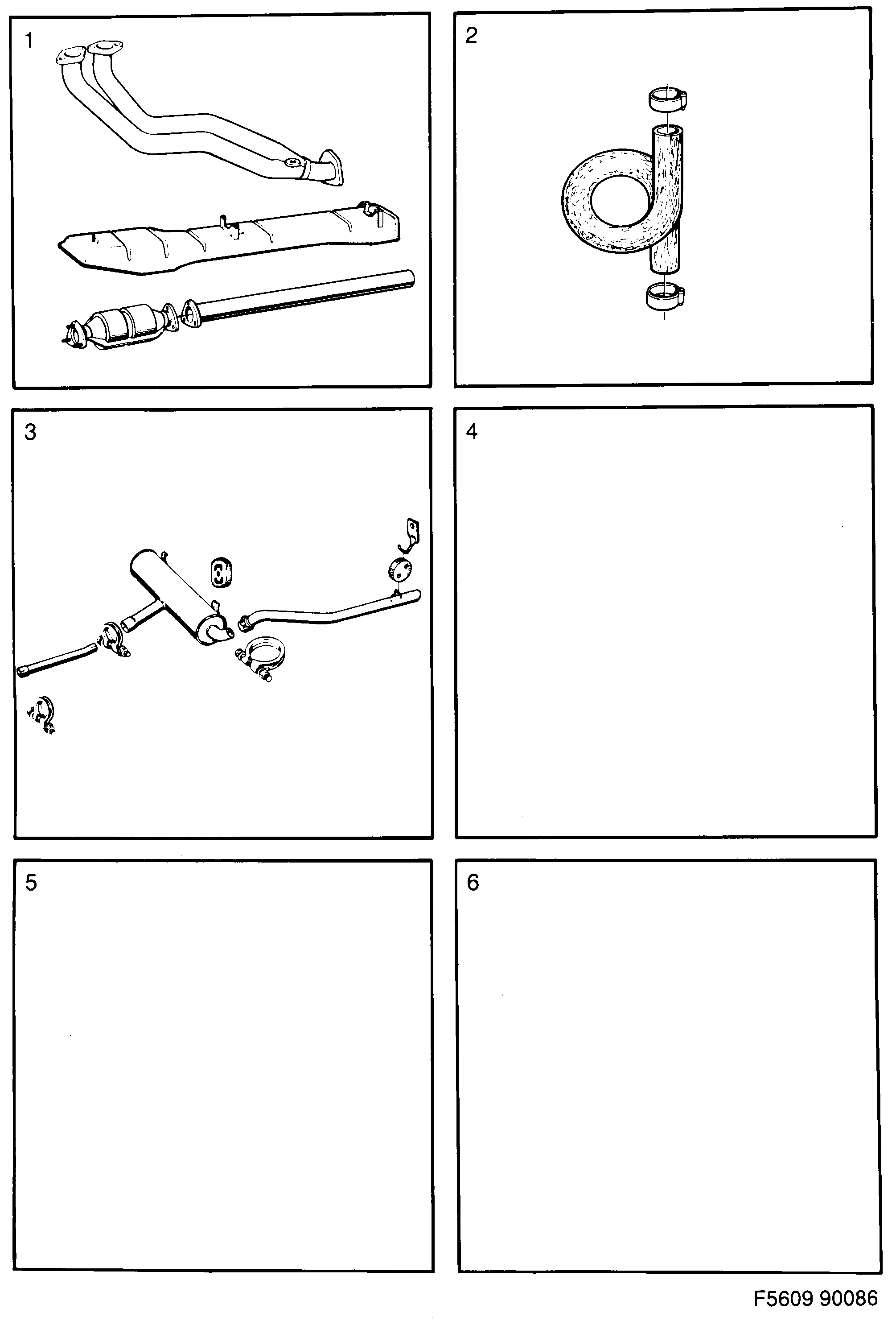

Group 2 Engine, section 2380
| Pos | Article | Part No. |
|---|---|---|
| 1 | Catalytic converter kit | 8819237 |
| Gasket | 7528136 | |
| Three way catalytic converter | 7533797 | |
| Exhaust pipe | 5466768 (replaces 7533904) | |
| Label | 7537764 | |
| Exhaust pipe | 5466933 (replaces 7539117) | |
| Screw | 7922503 | |
| Screw | 7967789 | |
| Nut | 7979503 (replaces 7967870) | |
| Cage nut | 7970437 | |
| Nut | 11900437 (replaces 7978620) | |
| Nut | 30509159 (replaces 7974264) | |
| Washer | 8029951 | |
| Washer | 92153033 (replaces 8029985) | |
| Nut | 8074106 | |
| Plug | 8123747 | |
| Ring | 8328726 | |
| Gasket | 4024089 (replaces 8387052) | |
| Gasket | 8980328 (replaces 8387672) | |
| Filler cap | 4391058 (replaces 8982209) | |
| Filler pipe | 9335118 | |
| Heat shield | 4021598 (replaces 9349804) | |
| Screw | 9368218 | |
| Cover | 9492471 | |
| Heat shield | 9540774 | |
| Text plate | 9682535 | |
| 2 | Hose | 4020848 |
| Hose | 4019998 | |
| Hose clamp | 7968308 | |
| 3 | Muffler kit | 8817850 |
| Tube | 5466750 (replaces 7533623) | |
| Muffler | 5466164 | |
| Clamp | 8384323 | |
| Clamp | 8386450 | |
| Rubber mounting | 9328105 | |
| Rubber mounting | 9365404 | |
| Exhaust pipe | 5467063 (replaces 9365727) | |
| Bracket | 9368093 |
