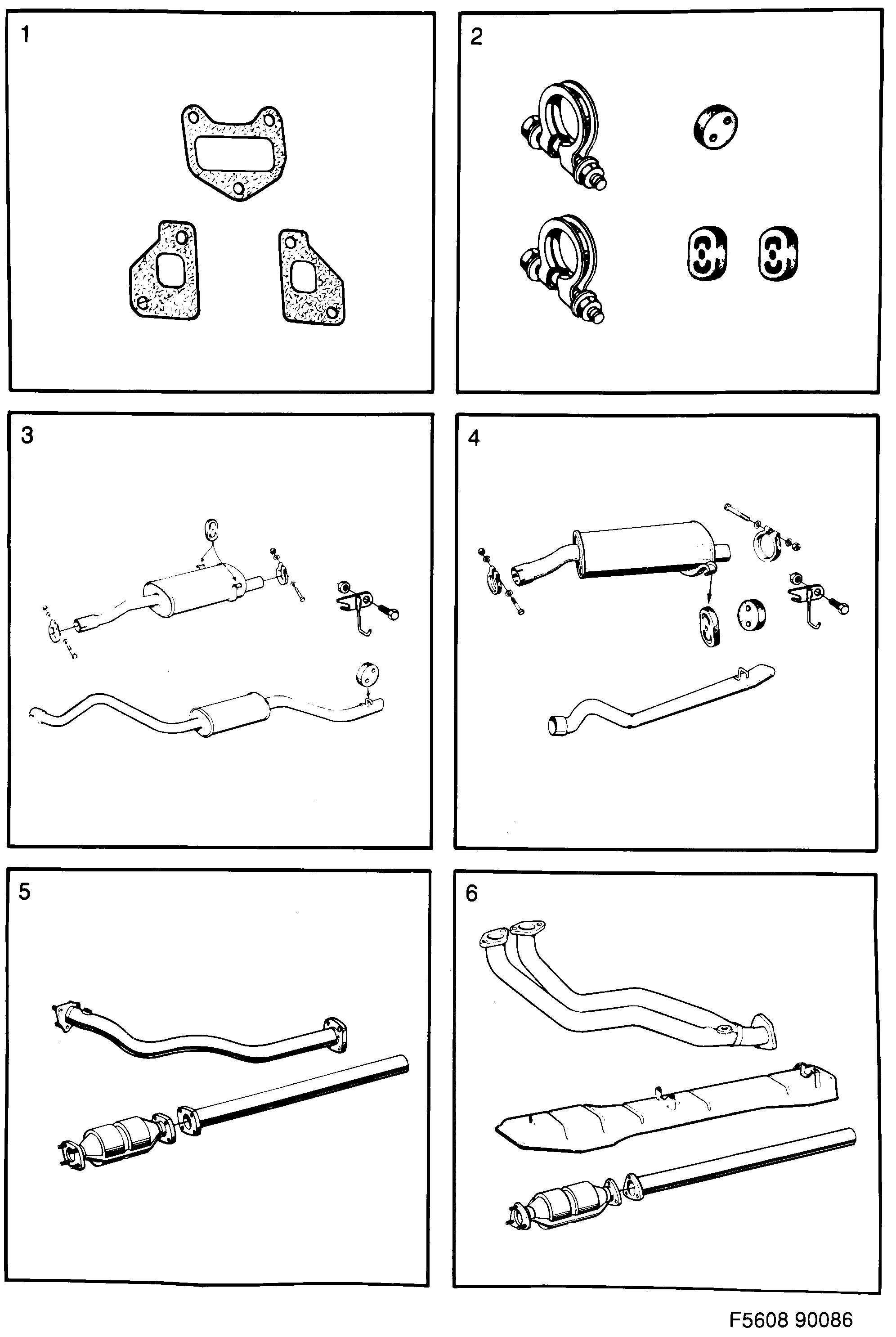

Group 2 Engine, section 2350
| Pos | Article | Part No. |
|---|---|---|
| 1 | Gasket | 8819146 |
| Gasket | 7588940 (replaces 8819112) | |
| Gasket | 7588957 (replaces 8819120) | |
| 2 | Mounting kit | 9321555 |
| Clamp | 8386450 | |
| Rubber mounting | 9328105 | |
| Rubber mounting | 9365404 | |
| 2 | Mounting kit | 9321563 |
| Clamp | 8336406 | |
| 3 | Muffler kit | 8819690 |
| Muffler | 5466198 (replaces 9349143) | |
| Muffler | 5466180 (replaces 7536196) | |
| Mounting kit | 7538440 | |
| Suspension | 7537145 | |
| Screw | 7970353 | |
| Nut | 11900437 (replaces 7978620) | |
| 4 | Muffler kit | 8819708 |
| Muffler | 9349192 | |
| Exhaust pipe | 5466990 (replaces 7535925) | |
| 5 | Catalytic converter kit | 8819203 |
| Three way catalytic converter | 7533540 | |
| Exhaust pipe | 8976821 | |
| Label | 7537764 | |
| Screw | 7967789 | |
| Lock nut | 7968415 | |
| Nut | 30509159 (replaces 7974264) | |
| Nut | 8074106 | |
| Plug | 8123747 | |
| Gasket | 4024121 (replaces 8334963) | |
| Filler cap | 4391058 (replaces 8982209) | |
| Seal | 9316407 | |
| Exhaust pipe | 5466842 (replaces 9333857) | |
| Filler pipe | 9335118 | |
| Heat shield | 9540774 | |
| Text plate | 9682535 | |
| 6 | Catalytic converter kit | 8819229 |
| Gasket | 7528136 | |
| Three way catalytic converter | 7533797 | |
| Exhaust pipe | 5466768 (replaces 7533904) | |
| Screw | 7922503 | |
| Nut | 7979503 (replaces 7967870) | |
| Cage nut | 7970437 | |
| Washer | 8029951 | |
| Washer | 92153033 (replaces 8029985) | |
| Ring | 8328726 | |
| Gasket | 4024089 (replaces 8387052) | |
| Gasket | 8980328 (replaces 8387672) | |
| Exhaust pipe | 8980278 | |
| Heat shield | 4021598 (replaces 9349804) | |
| Screw | 9368218 | |
| Cover | 9492471 |
