Saab 900 1986-1989 Engine

Group 2 Engine, section 2320

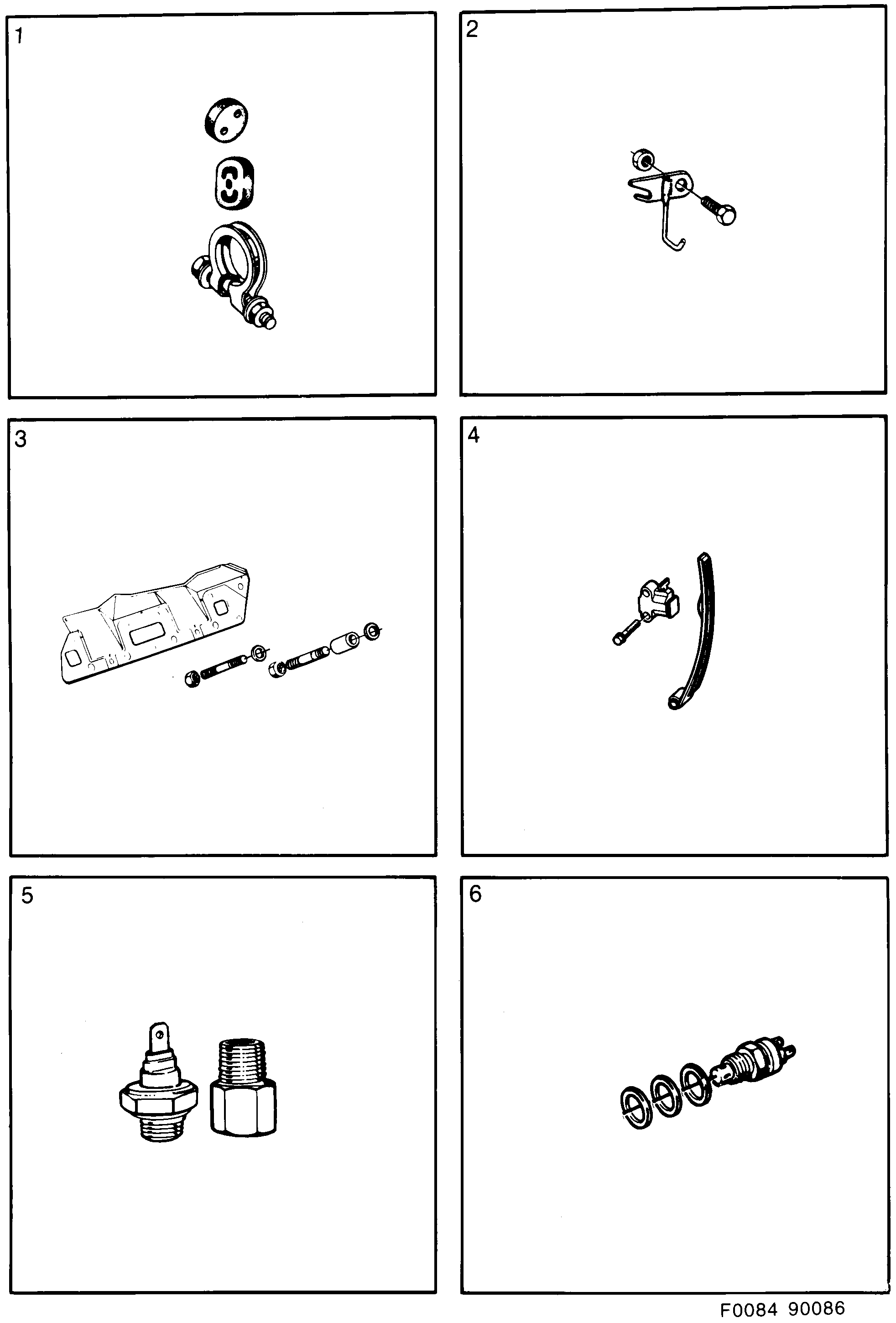

Saab 900 Engine diagram

Pos	Article	Part No.
1	Mounting kit	8818577
	Clamp	8386450
	Clamp	8384323
	Rubber mounting	9328105
	Rubber mounting	9365404
2	Mounting kit	7538440
	Suspension	7537145
	Screw	7970353
	Nut	11900437 (replaces 7978620)
3	Screw kit	8817280
	Clamp	92151352 (replaces 9306804)
	Stud	7521081
	Stud screw	92151353 (replaces 9350588)
	Nut	11516076 (replaces 9306820)
	Spacer sleeve	9306812
	Washer	55564926 (replaces 8073249)
	Gasket	7561772
4	Chain tensioner	8817405
	Chain tensioner	9358672
	Chain guide	9358680
	Screw	8125064
5	Oil pressure sensor	8818528
	Oil pressure sensor	30520357 (replaces 7522402)
	Connector	7564248
6	Thermo contact	8547572
	Thermo contact	4086708 (replaces 9526518)
	Seal	8330268
