Saab 900 1990-1993 Cylinder block

Group 2 Engine, section 230

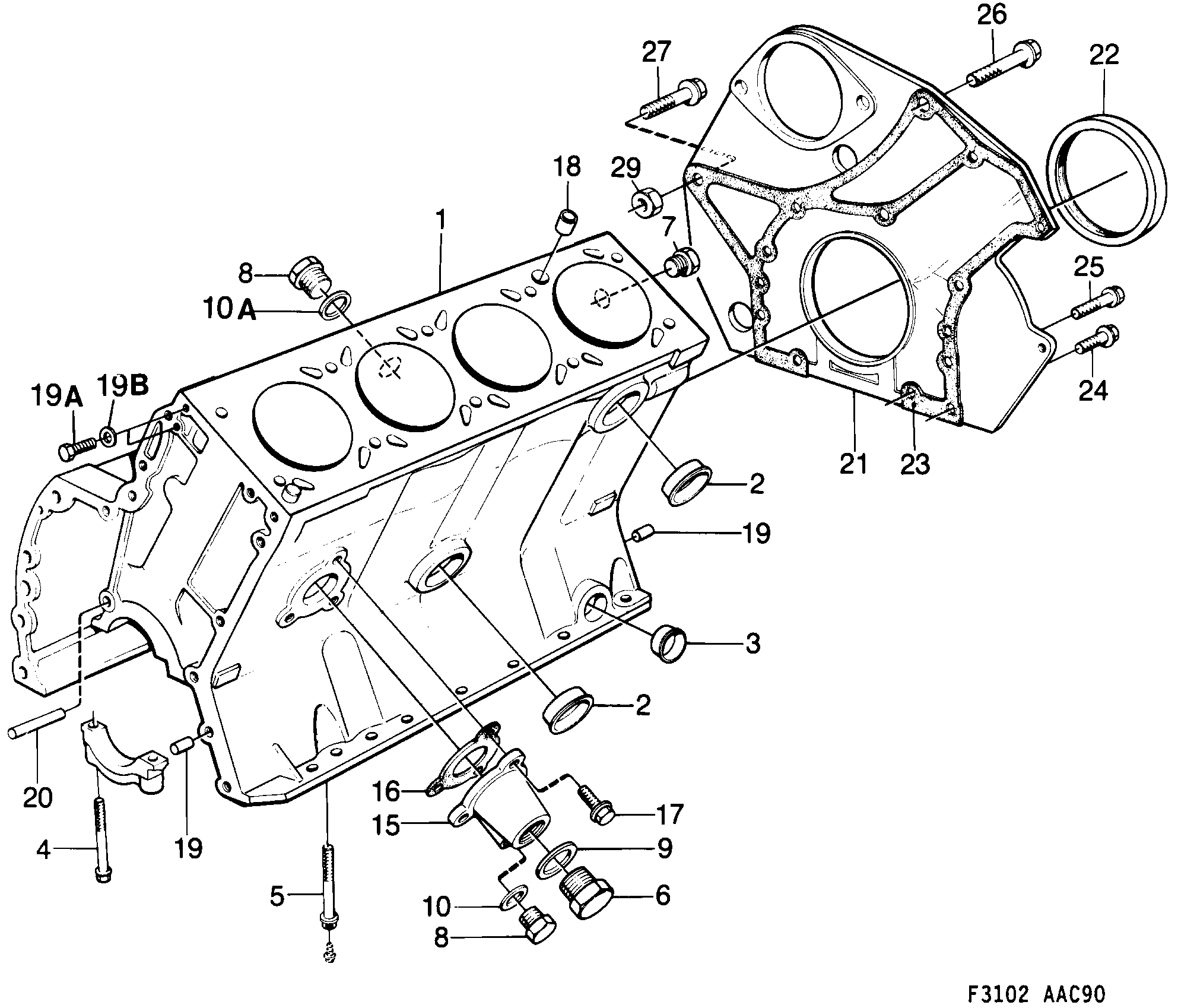

Saab 900 Cylinder block diagram

Pos	Article	Part No.
1	Cylinder block	7516826
1	Cylinder block	7516834
1	Cylinder block	9116294
2	Sealing washer	32000339 (replaces 9116757)
3	Sealing washer	7588320
4	Screw	9128687 (replaces 8352502)
5	Screw	9308537
6	Plug	8123788
7	Plug	8348047
8	Plug	7563042 (replaces 8123721)
9	Gasket	9116856
10	Seal	4161162 (replaces 8326712)
10A	Gasket	92150435 (replaces 8124141)
15	Cover	9144684 (replaces 7581259)
15	Cover	9144684
16	Gasket	7523897
17	Screw	8125189
18	Guide	8346470
19	Guide	8366007
19A	Screw	9166273
19B	Washer	8073223
21	End panel, left	7516255
22	Seal	55557240 (replaces 9350158)
22	Seal	55557240 (replaces 8787764)
23	Gasket	7563661
23	Flange sealant	90297970
25	Screw	8125197
26	Screw	8150500
27	Screw	8150534
27	Screw	8150559
29	Nut	8151086
