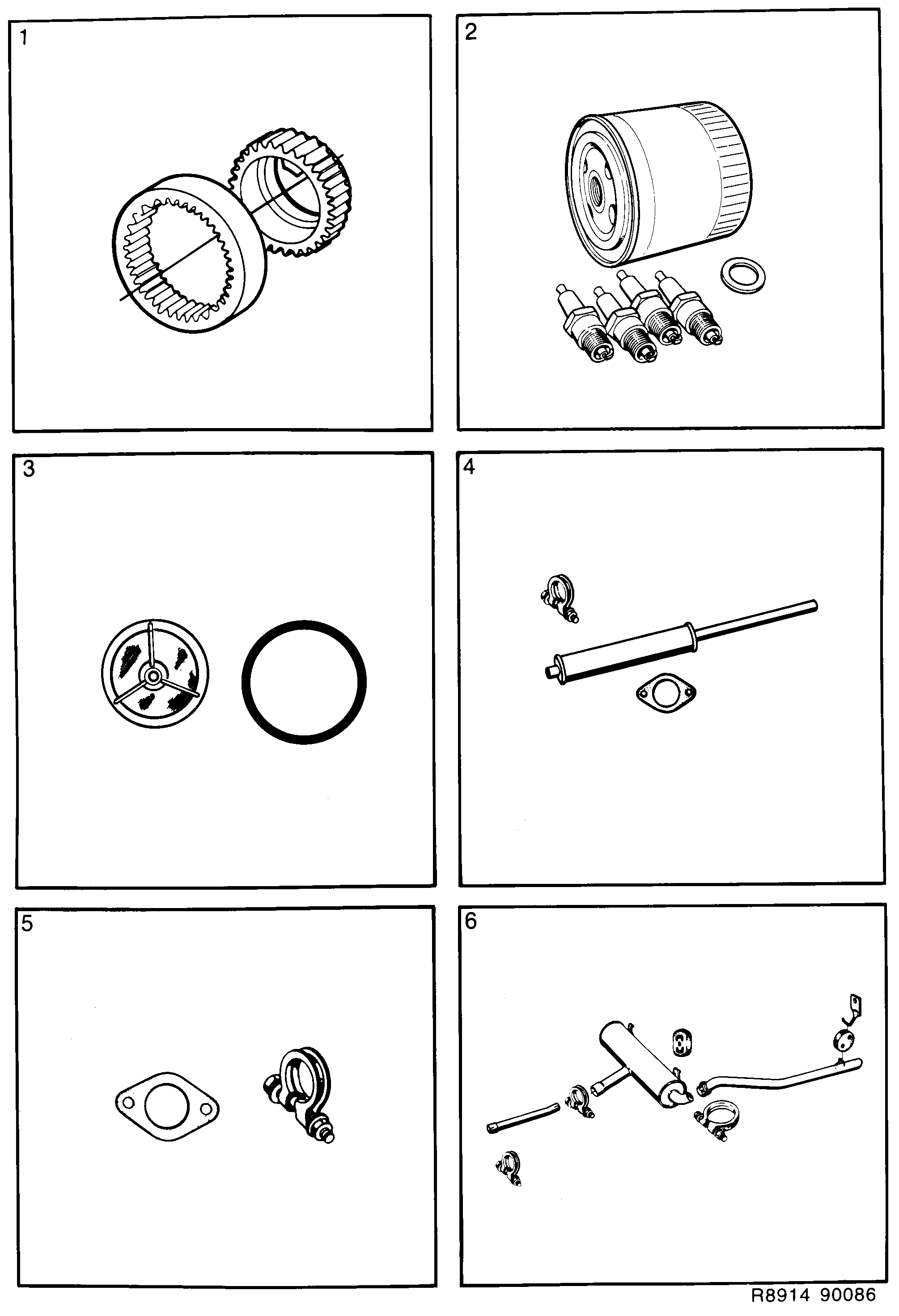

Group 2 Engine, section 2290
| Pos | Article | Part No. |
|---|---|---|
| 1 | Pump kit | 8817561 |
| Pump rotor | 32000440 (replaces 7515588) | |
| Pump rotor | 7515596 | |
| 2 | Service kit | 8817348 |
| Filter | 93186554 (replaces 9309576) | |
| Gasket | 8718439 | |
| Spark plug | 8350076 | |
| 2 | Service kit | 8818544 |
| Oil filter | 93186554 (replaces 9320383) | |
| Gasket | 7522709 | |
| Spark plug | 8819294 (replaces 7505142) | |
| 2 | Service kit | 8819864 |
| Spark plug | 9116385 | |
| 2 | Service kit | 8817678 |
| Spark plug | 8819328 | |
| 2 | Service kit | 8817686 |
| Spark plug kit | 5962485 (replaces 7568900) | |
| 3 | Fuel filter | 9336868 |
| Fuel filter | 9350604 | |
| Gasket | 9350620 | |
| 4 | Muffler kit | 8817835 |
| Muffler | 7533615 | |
| Clamp | 8386450 | |
| Gasket | 8980328 (replaces 8387672) | |
| 5 | Mounting kit | 8818197 |
| 6 | Muffler kit | 8817850 |
| Muffler | 5466164 | |
| Tube | 5466750 (replaces 7533623) | |
| Clamp | 8384323 | |
| Rubber mounting | 9328105 | |
| Exhaust pipe | 5467063 (replaces 9365727) | |
| Rubber mounting | 9365404 | |
| Bracket | 9368093 |
