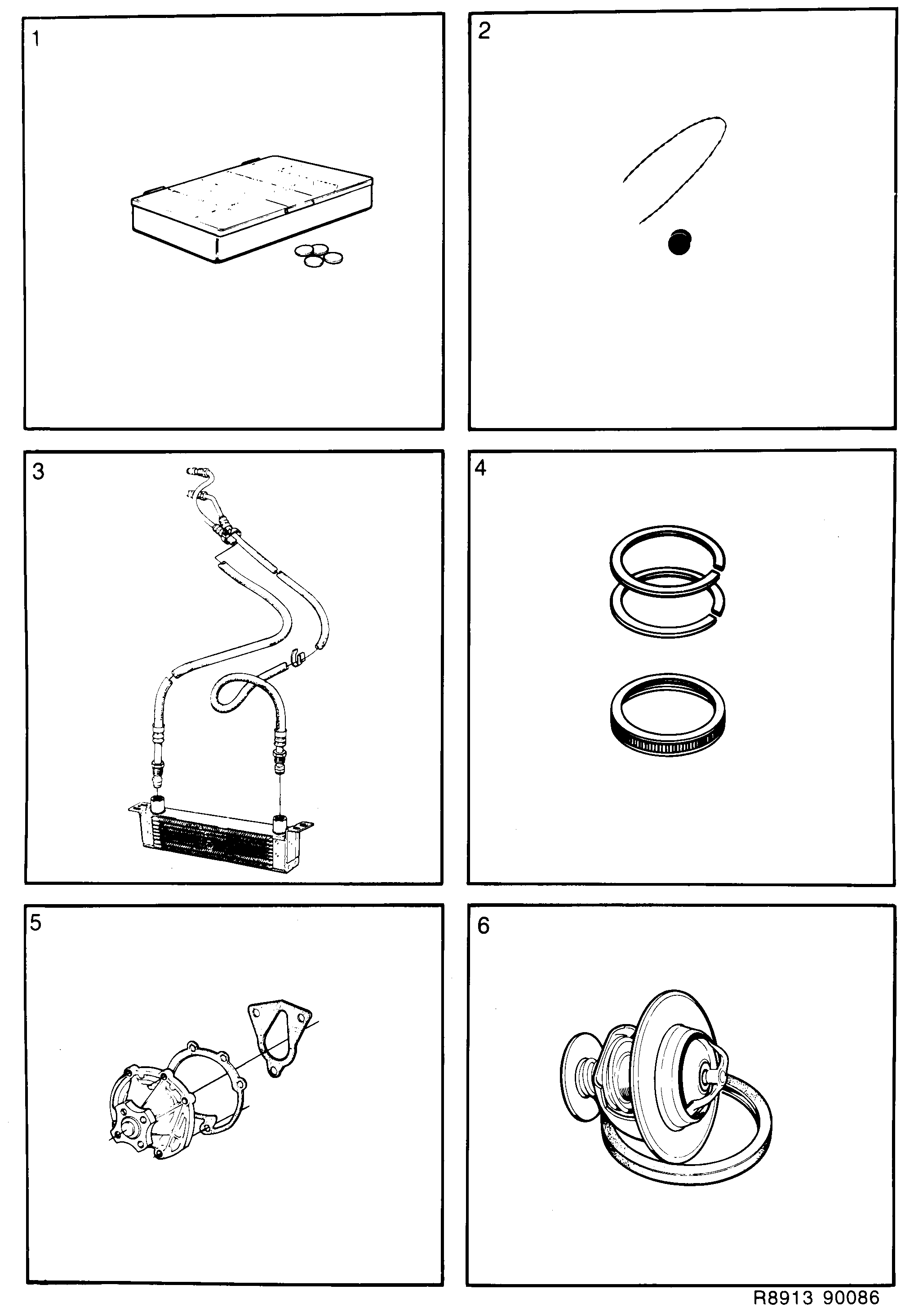

Group 2 Engine, section 2260
| Pos | Article | Part No. |
|---|---|---|
| 1 | Valve adjustment kit | 8817728 |
| Box | 8392003 | |
| Adjusting washer | 8308215 | |
| Adjusting washer | 8308223 | |
| Adjusting washer | 8308231 | |
| Adjusting washer | 8308249 | |
| Adjusting washer | 8308256 | |
| Adjusting washer | 8308264 | |
| Adjusting washer | 8308272 | |
| Adjusting washer | 8308280 | |
| Adjusting washer | 8308298 | |
| Adjusting washer | 8308306 | |
| Adjusting washer | 7524275 | |
| Adjusting washer | 7524291 | |
| Adjusting washer | 7524317 | |
| Adjusting washer | 7524333 | |
| Adjusting washer | 7524358 | |
| Adjusting washer | 7524374 | |
| Adjusting washer | 7524390 | |
| Adjusting washer | 7524416 | |
| Adjusting washer | 7524432 | |
| Adjusting washer | 7524457 | |
| Adjusting washer | 7524473 | |
| Adjusting washer | 7524499 | |
| Adjusting washer | 7524515 | |
| Adjusting washer | 7524531 | |
| Adjusting washer | 7524556 | |
| Adjusting washer | 7524572 | |
| Adjusting washer | 7524598 | |
| Adjusting washer | 7524614 | |
| Adjusting washer | 7524630 | |
| Adjusting washer | 7524655 | |
| Adjusting washer | 7524671 | |
| Adjusting washer | 7524697 | |
| Adjusting washer | 7524713 | |
| Adjusting washer | 7524739 | |
| Adjusting washer | 7524754 | |
| Adjusting washer | 7524770 | |
| Adjusting washer | 7524796 | |
| Adjusting washer | 7524812 | |
| Adjusting washer | 7524838 | |
| Adjusting washer | 7524853 | |
| 2 | Sealing | 9301706 |
| Wire | 9168352 (replaces 9301722) | |
| Seal | 9301714 | |
| Retaining ring | 55558372 (replaces 9350505) | |
| 2 | Sealing kit | 9185489 (replaces 8818569) |
| Sealing wire | 9168352 (replaces 8117020) | |
| Seal | 9168352 (replaces 8117038) | |
| 3 | Oil cooler kit | 9337270 |
| Oil cooler | 9301482 | |
| Banjo screw | 12773569 (replaces 9301532) | |
| Seal | 4161162 (replaces 8977365) | |
| Hydraulic hose | 9326216 | |
| Connector | 7505464 | |
| Gasket | 7566433 | |
| Screw | 7922420 | |
| Hydraulic hose | 7543630 | |
| Hydraulic hose | 7543648 | |
| 3 | Oil cooler | 7540388 |
| Oil cooler | 7513450 | |
| Protecting casing | 7541881 | |
| Hydraulic hose | 7543671 | |
| Hydraulic hose | 7543275 | |
| Screw | 7922891 (replaces 7974769) | |
| Screw | 7922891 | |
| Screw | 7974447 | |
| Nut | 11900428 (replaces 7971658) | |
| Stiffening bar | 7540305 | |
| Clip | 7542715 | |
| Seal | 7546955 | |
| Nut | 7975220 | |
| Clip | 7541428 | |
| Tie strap | 11900513 (replaces 7971880) | |
| 4 | Piston ring kit | 7520513 |
| 4 | Piston ring kit | 7520521 |
| 4 | Piston ring kit | 7520539 |
| 5 | Coolant pump | 8817900 |
| Coolant pump | 8817900 (replaces 7507460) | |
| Gasket | 7566516 (replaces 9353442) | |
| Gasket | 7563687 (replaces 9354978) | |
| 6 | Thermostat kit | 8389512 |
| Thermostat | 5958749 (replaces 8362352) | |
| Gasket | 9176165 (replaces 8352692) | |
| 6 | Thermostat kit | 8389512 (replaces 9320284) |
| Thermostat | 5958749 (replaces 9316662) | |
| 6 | Thermostat kit | 9336835 |
| Thermostat | 5958756 (replaces 9312059) | |
| 6 | Thermostat kit | 9337551 |
| Thermostat | 5958756 (replaces 7502297) | |
| 6 | Thermostat kit | 30577561 (replaces 8817298) |
| Thermostat | 5958749 (replaces 7505241) | |
| 6 | Thermostat kit | 8817538 |
| Thermostat | 5958756 (replaces 7517345) |
