Saab 900 1986-1989 Engine

Group 2 Engine, section 2230

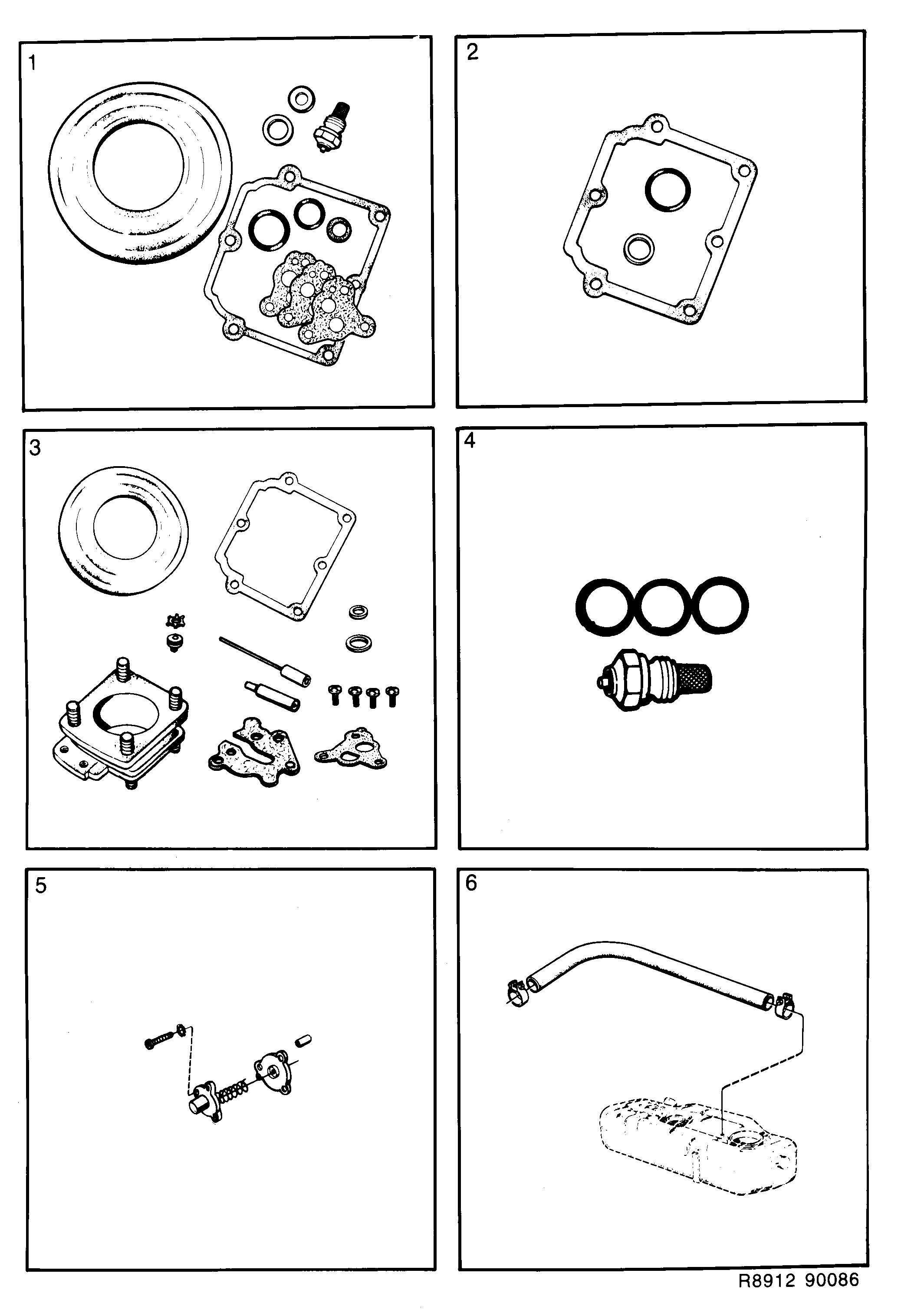

Saab 900 Engine diagram

Pos	Article	Part No.
1	Gasket kit	8364259
	Gasket	8308652
	Seal	8309064
	Seal	8309072
	Washer	8305823
	Spring	8305575
	Gasket	8305849
	Metering needle	8308678
	Seal	8352494
	Needle valve	8351413
2	Gasket kit	8364242
	O-ring	8305773
3	Repair kit	8818767
	Gasket	7508203
	Screw	8308892
	Lock ring	8364192
	Nozzle	8365850
	Metering needle	8366312
	Gasket	7588981
	Gasket	8369647
	Diaphragm	8388670
	Screw	9308792
4	Needle valve set	8361644
5	Diaphragm	7509128
	Diaphragm	7509136
	Cover	9352063
	Spring	9352055
	Sleeve	7508732
	Screw	7972789
6	Fuel hose	8817256
	Hose	9363359
	Hose clamp	90530642 (replaces 7977697)
