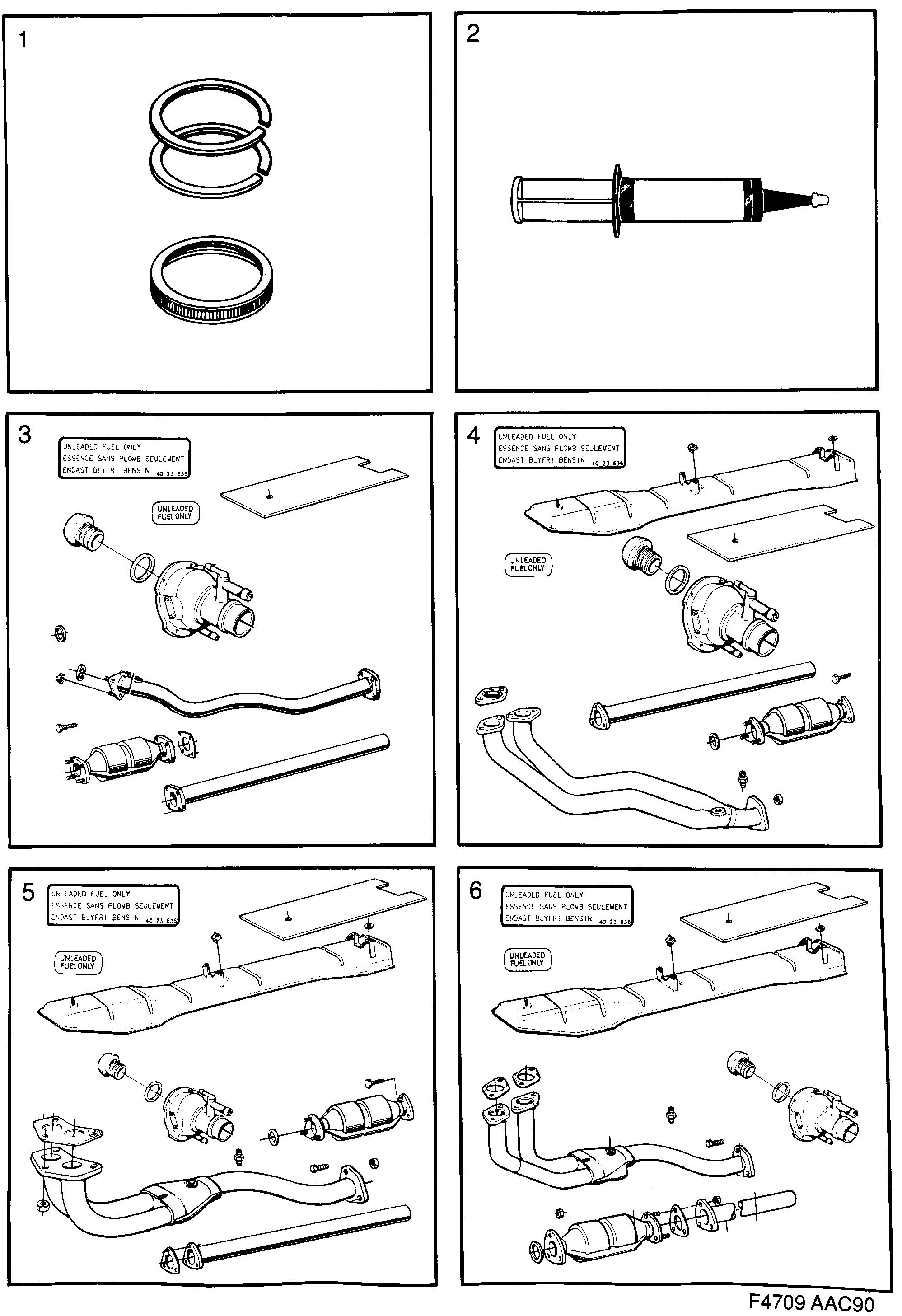

Group 2 Engine, section 2210
| Pos | Article | Part No. |
|---|---|---|
| 1 | Piston ring kit | 7520513 |
| 1 | Piston ring kit | 9321472 |
| 1 | Piston ring kit | 7520521 |
| 1 | Piston ring kit | 9321480 |
| 1 | Piston ring kit | 7520539 |
| 1 | Piston ring kit | 9321498 |
| 2 | Flange sealant | 90297970 |
| 3 | Catalytic converter kit | 4393781 |
| Label | 5463351 (replaces 4023636) | |
| Gasket | 4024121 | |
| Three way catalytic converter | 4440038 | |
| Exhaust pipe | 5466172 | |
| Screw | 7967789 | |
| Lock nut | 7968415 | |
| Nut | 8074106 | |
| Seal | 9316407 | |
| Filler cap | 4391058 | |
| Exhaust pipe | 5466842 (replaces 9333857) | |
| Filler pipe | 9335118 | |
| Text plate | 9659764 | |
| Heat shield | 9540774 | |
| Assembly instruction | 9321928 | |
| 4 | Catalytic converter kit | 4393740 |
| Shield | 4021598 | |
| Gasket | 4024089 | |
| Three way catalytic converter | 4440061 | |
| Screw | 7922503 | |
| Cage nut | 7970429 | |
| Nut | 11900437 (replaces 7978620) | |
| Washer | 8029951 | |
| Washer | 92153033 (replaces 8029985) | |
| Plug | 8123747 | |
| Ring | 8328726 | |
| Exhaust pipe | 8980278 | |
| Gasket | 8980328 | |
| Exhaust pipe | 5466792 (replaces 9333840) | |
| Screw | 9368218 | |
| 5 | Catalytic converter kit | 4393757 |
| Gasket | 7528136 | |
| Exhaust pipe | 5466933 (replaces 7539117) | |
| Nut | 7979503 | |
| 6 | Catalytic converter kit | 4393765 |
| Three way catalytic converter | 4440046 | |
| Exhaust pipe | 5466768 (replaces 7533904) | |
| Exhaust pipe | 5466214 |
