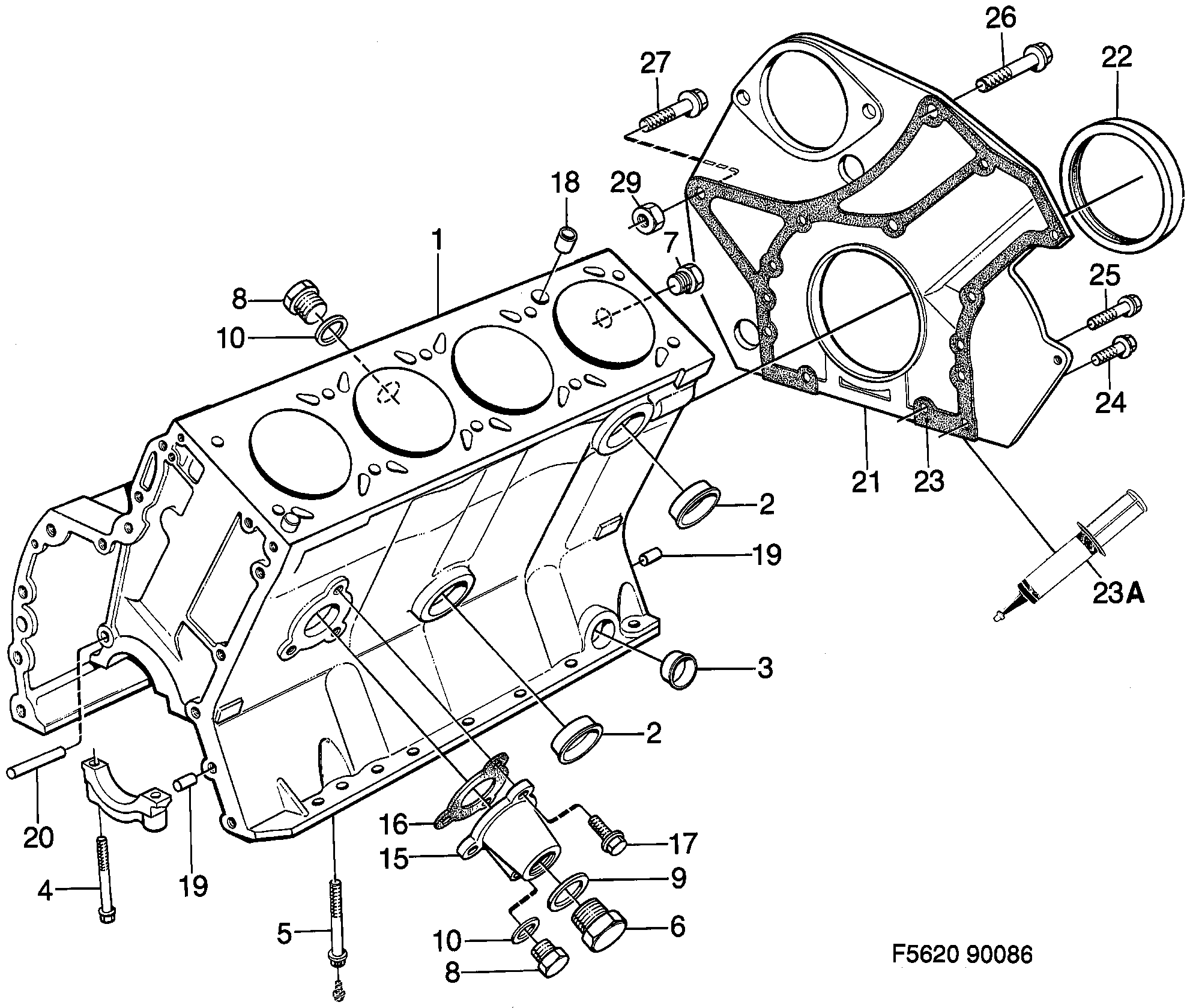

Group 2 Engine, section 220
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cylinder block | 7516826 |
| 1 | Cylinder block | 7516834 |
| 2 | Sealing washer | 32000339 (replaces 8347999) |
| 2 | Sealing washer | 32000339 (replaces 7588338) |
| 2 | Sealing washer | 32000339 (replaces 9116757) |
| 3 | Sealing washer | 8123218 |
| 3 | Sealing washer | 7588320 |
| 4 | Screw | 9128687 (replaces 8352502) |
| 5 | Screw | 9308537 |
| 6 | Plug | 8123788 (replaces 7564230) |
| 6 | Plug | 8123788 |
| 7 | Plug | 8348047 |
| 8 | Plug | 7563042 (replaces 7564222) |
| 8 | Plug | 7563042 (replaces 8123721) |
| 9 | Gasket | 9116856 (replaces 8124208) |
| 9 | Gasket | 9116856 |
| 10 | Seal | 4161162 (replaces 8326712) |
| 15 | Cover | 9144684 (replaces 7500622) |
| 15 | Cover | 9144684 (replaces 7581259) |
| 16 | Gasket | 7523897 (replaces 7507833) |
| 17 | Screw | 8125189 |
| 18 | Guide | 8346470 |
| 19 | Guide | 8366007 |
| 21 | End panel, left | 7516255 |
| 22 | Seal | 55557240 (replaces 9350158) |
| 23 | Gasket | 9321795 (replaces 7516586) |
| 23 | Gasket | 7563661 |
| 23A | Flange sealant | 90297970 |
| 25 | Screw | 8125197 |
| 26 | Screw | 8125551 |
| 26 | Screw | 8150500 |
| 27 | Screw | 8125585 |
| 27 | Screw | 8150534 |
| 27 | Screw | 8125601 |
| 27 | Screw | 8150559 |
| 29 | Nut | 8073967 |
| 29 | Nut | 8151086 |
