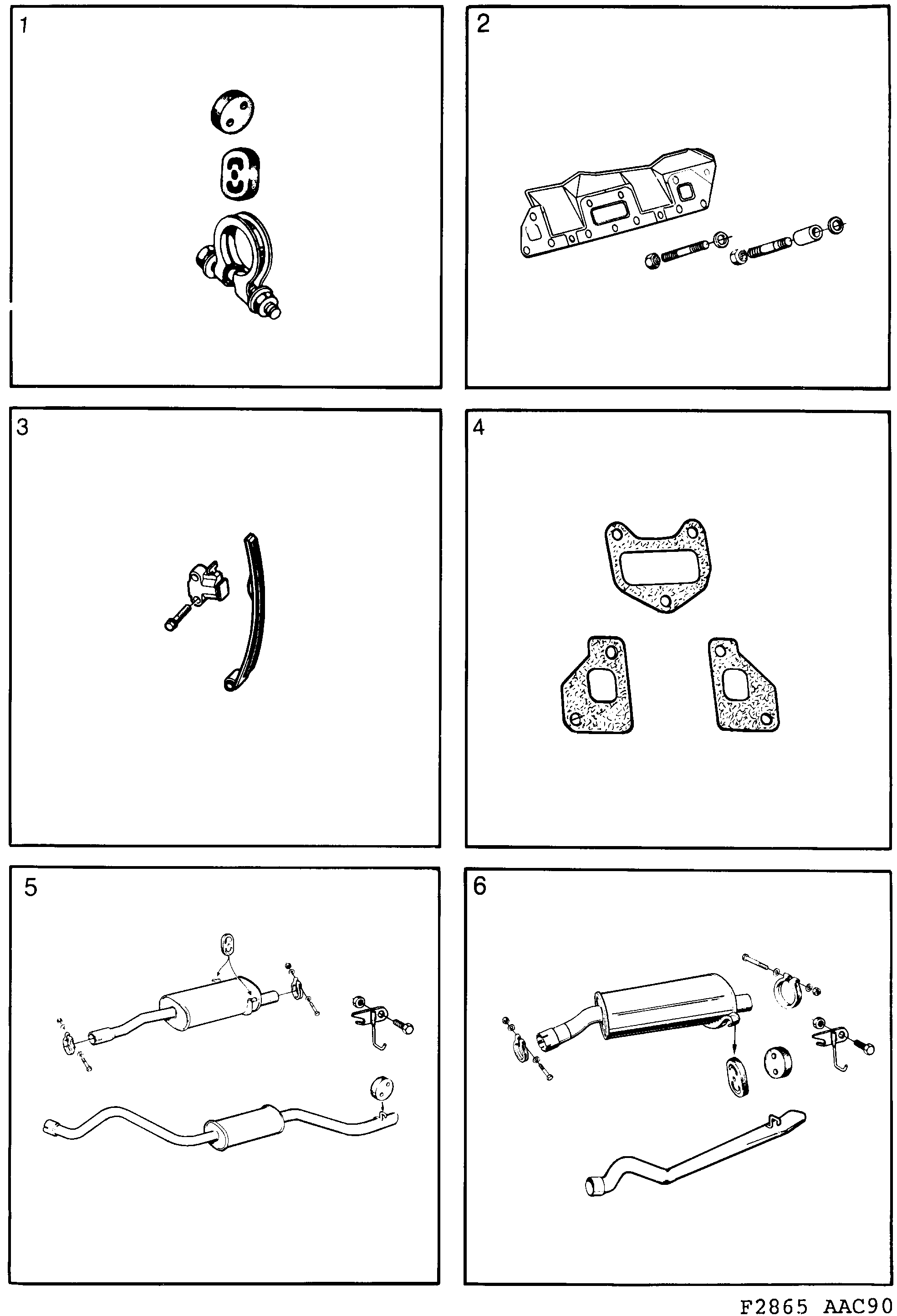

Group 2 Engine, section 2180
| Pos | Article | Part No. |
|---|---|---|
| 1 | Mounting kit | 8818577 |
| Clamp | 8386450 | |
| Clamp | 8384323 | |
| Rubber mounting | 9328105 | |
| Rubber mounting | 9365404 | |
| 2 | Screw kit | 8817280 |
| Clamp | 92151352 (replaces 9306804) | |
| Stud | 7521081 | |
| Stud screw | 92151353 (replaces 7985161) | |
| Nut | 11516076 (replaces 9306820) | |
| Spacer sleeve | 9306812 | |
| Washer | 55564926 (replaces 8073249) | |
| Gasket | 7561772 | |
| 3 | Chain tensioner | 8817405 |
| Chain tensioner | 9358672 | |
| Chain guide | 9358680 | |
| Screw | 8125064 | |
| 4 | Gasket | 8819146 |
| Gasket | 7588940 (replaces 8819112) | |
| Gasket | 7588957 (replaces 8819120) | |
| 5 | Muffler kit | 8819690 |
| Muffler | 5466198 (replaces 9349143) | |
| Muffler | 5466180 (replaces 7536196) | |
| Mounting kit | 7538440 | |
| Suspension | 7537145 | |
| Screw | 7970353 | |
| Nut | 11900437 (replaces 7978620) | |
| Mounting kit | 9321555 | |
| 6 | Muffler kit | 8819708 |
| Muffler | 9349192 | |
| Exhaust pipe | 5466990 (replaces 7535925) | |
| Clamp | 8336406 | |
| Mounting kit | 9321563 |
