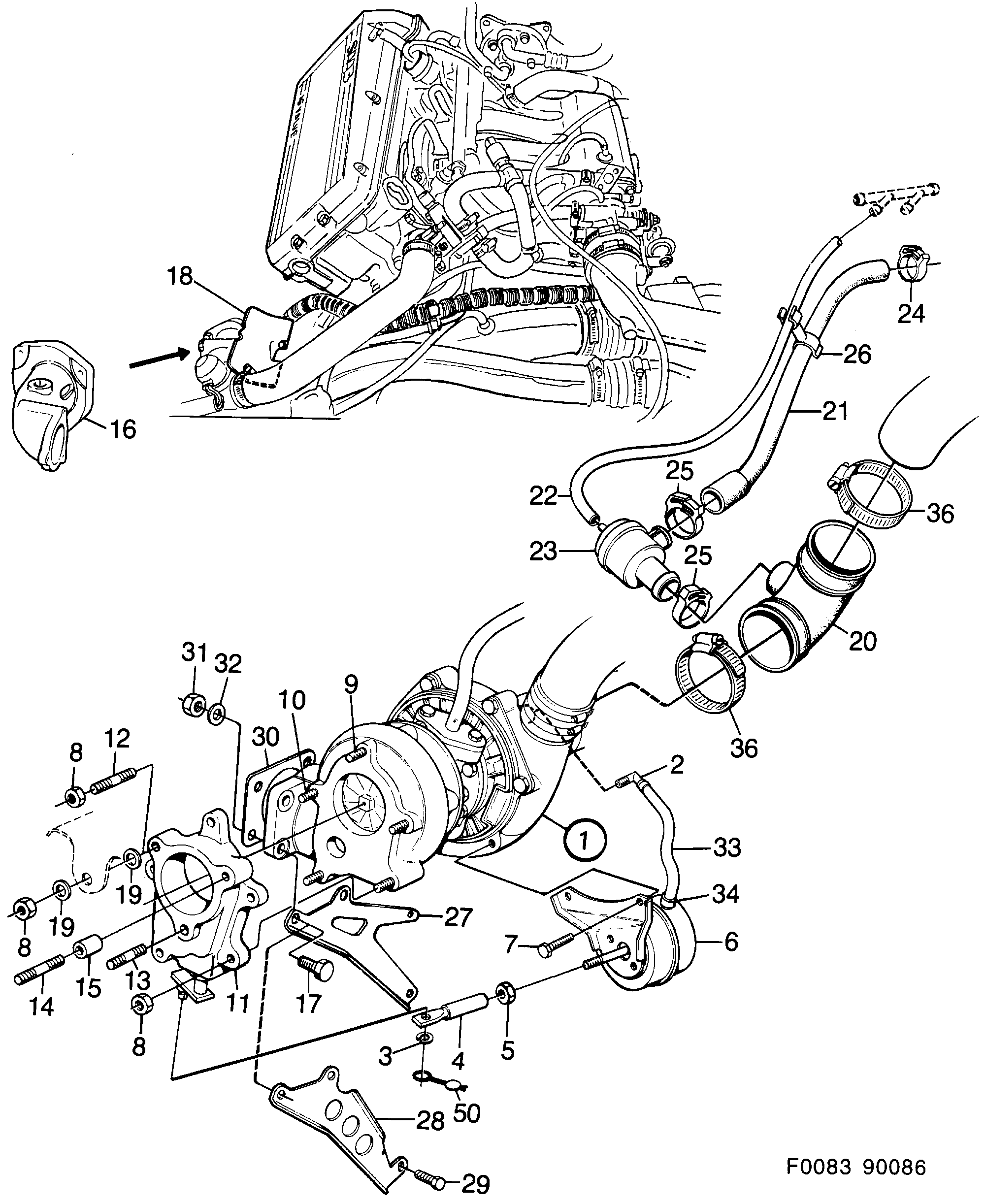

Group 2 Engine, section 2140
| Pos | Article | Part No. |
|---|---|---|
| 1 | Turbo unit | 7509953 |
| 1 | Turbo unit | 7567746 |
| 1 | Turbo unit | 7486020 |
| 1 | Turbocharger | 7521404 |
| 1 | Turbocharger | 7567761 |
| 1 | Turbocharger | 7486038 |
| 2 | Nipple | 7565708 |
| 3 | Retaining ring | 55558372 (replaces 9350505) |
| 4 | End piece | 9356338 |
| 5 | Press ring | 9350570 |
| 6 | Pressure regulator | 9356312 |
| 6 | Pressure regulator | 9321720 |
| 7 | Screw | 9350471 |
| 8 | Nut | 92152032 (replaces 7519432) |
| 9 | Stud | 7565716 |
| 10 | Stud | 7565658 |
| 11 | Throttle body | 7565724 |
| 12 | Screw | 7520216 |
| 13 | Screw | 7520208 |
| 14 | Screw | 7520190 |
| 15 | Sleeve | 8367864 |
| 16 | Flange coupling | 7517378 |
| 16 | Flange coupling | 7524168 |
| 17 | Screw | 7979156 (replaces 8084139) |
| 17 | Screw | 7978794 (replaces 8148744) |
| 18 | Heat shield | 7517089 |
| 19 | Washer | 92153033 (replaces 8029985) |
| 20 | Hose | 7528995 |
| 21 | Hose | 7533185 |
| 22 | Vaccum hose | 9136243 |
| 23 | Valve | 4441895 (replaces 9390022) |
| 24 | Hose clamp | 7970064 |
| 25 | Hose clamp | 7970098 (replaces 7977234) |
| 26 | Clamp | 7398233 |
| 27 | Brace | 7513674 |
| 28 | Brace | 7513682 |
| 29 | Screw | 8083933 |
| 29 | Screw | 8083933 (replaces 8082976) |
| 29 | Screw | 8083941 |
| 30 | Gasket | 8366262 |
| 31 | Nut | 7519291 |
| 32 | Washer | 8073108 |
| 33 | Hose | 9350372 |
| 34 | Clamp | 9350380 |
| 36 | Hose clamp | 92153079 (replaces 7970148) |
| 50 | Sealing | 9301706 |
| 50 | Sealing kit | 9185489 (replaces 8818569) |
