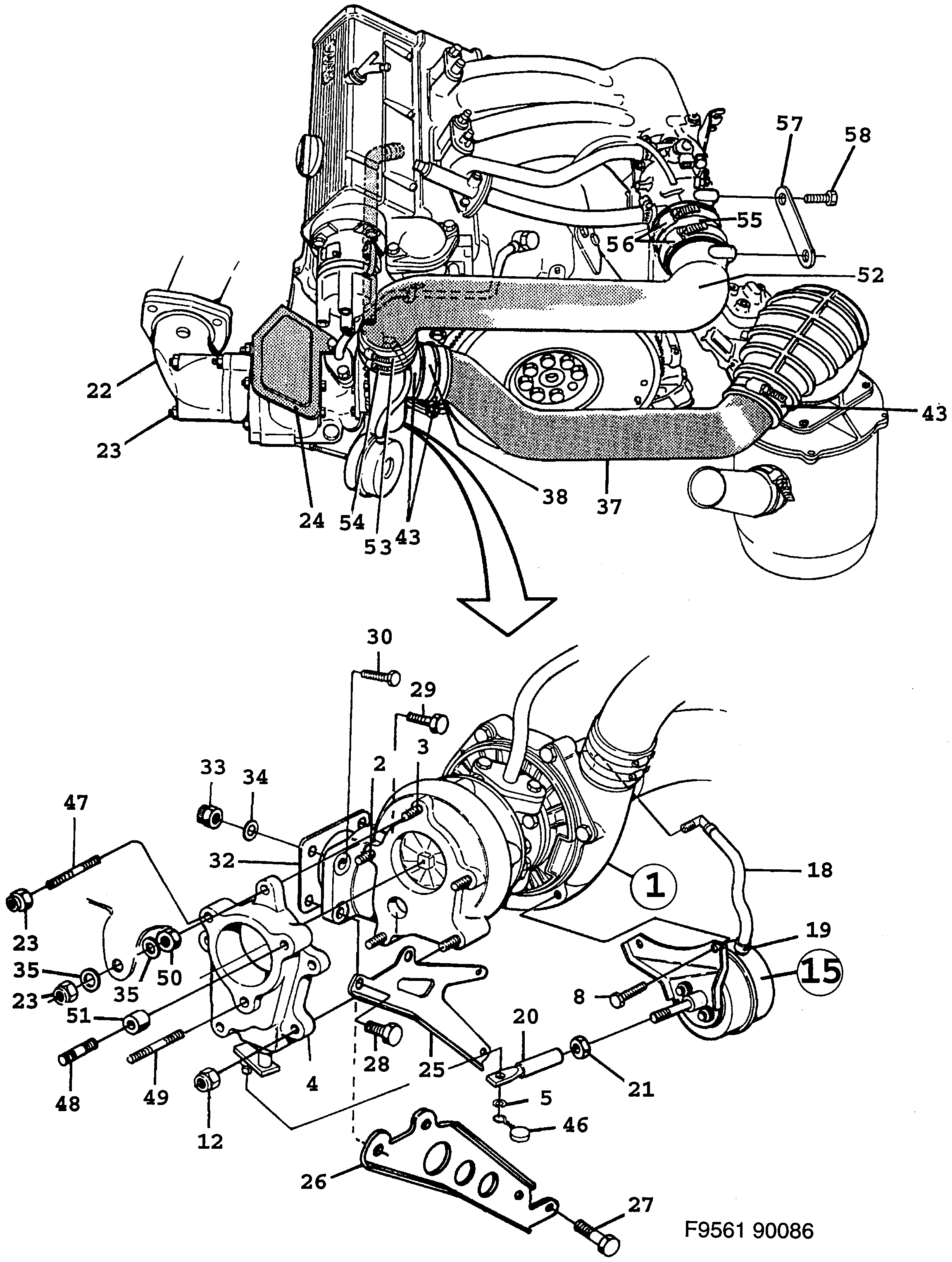

Group 2 Engine, section 2110
| Pos | Article | Part No. |
|---|---|---|
| 1 | Turbocharger | 7524200 |
| 1 | Turbocharger | 7567589 |
| 2 | Stud | 7565658 |
| 3 | Stud | 7565716 |
| 4 | Throttle body | 9356304 |
| 5 | Retaining ring | 55558372 (replaces 9350505) |
| 8 | Screw | 9350471 |
| 12 | Nut | 92152032 (replaces 7519432) |
| 15 | Pressure regulator | 9356312 |
| 18 | Hose | 9350372 |
| 19 | Clamp | 9350380 |
| 20 | End piece | 9356338 |
| 21 | Press ring | 9350570 |
| 22 | Flange coupling | 7517378 |
| 24 | Heat shield | 9314048 |
| 25 | Brace | 7513674 |
| 26 | Brace | 7513682 |
| 27 | Screw | 8083933 |
| 27 | Screw | 8083933 (replaces 8082976) |
| 27 | Screw | 8083941 |
| 28 | Screw | 7979156 (replaces 8084147) |
| 28 | Screw | 7979156 |
| 29 | Screw | 8084154 |
| 29 | Screw | 8148769 |
| 30 | Screw | 7979156 (replaces 8084139) |
| 30 | Screw | 7978794 (replaces 8148744) |
| 32 | Gasket | 8366262 |
| 33 | Nut | 7519291 |
| 34 | Washer | 8073108 |
| 35 | Washer | 92153033 (replaces 8029985) |
| 37 | Intake manifold | 7532120 |
| 38 | Hose | 7529027 |
| 43 | Hose clamp | 92153079 (replaces 7970148) |
| 46 | Sealing | 9301706 |
| 46 | Sealing kit | 9185489 (replaces 8818569) |
| 47 | Screw | 7520216 |
| 48 | Screw | 7520190 |
| 49 | Screw | 7520208 |
| 50 | Nut | 8073942 |
| 50 | Nut | 8151060 |
| 51 | Sleeve | 8367864 |
| 52 | Tube | 7501562 |
| 53 | Hose | 8367187 |
| 54 | Hose clamp | 92150224 (replaces 7970163) |
| 55 | Hose | 8367179 |
| 56 | Hose clamp | 92153080 (replaces 7970155) |
| 57 | Striker plate | 9311598 |
| 58 | Screw | 8129876 |
| Gasket kit | 8817264 |
