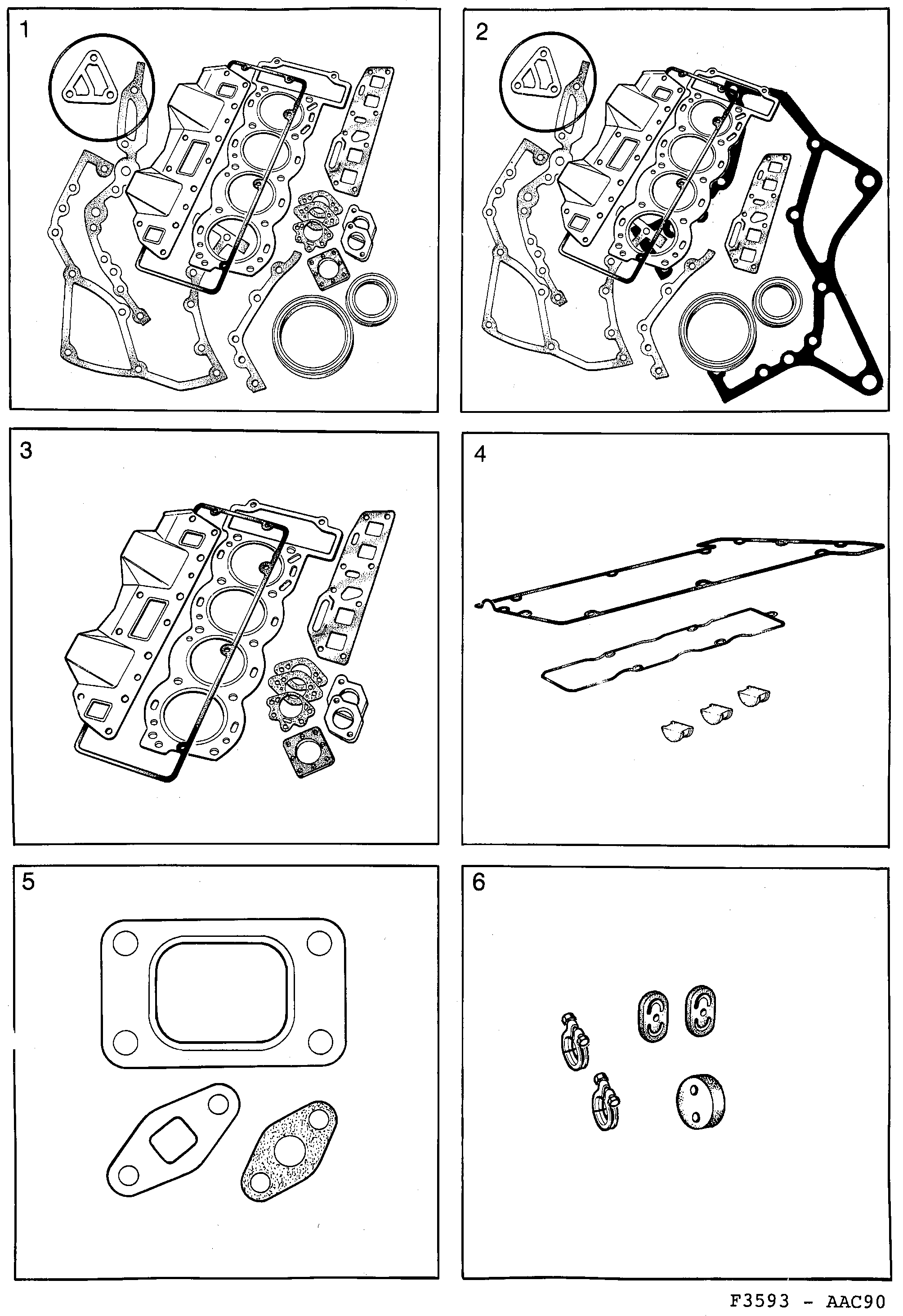

Group 2 Engine, section 2090
| Pos | Article | Part No. |
|---|---|---|
| 1 | Gasket kit | 9337213 |
| Gasket | 7585037 | |
| Gasket | 9355991 | |
| Gasket | 7589039 | |
| Seal | 55557240 (replaces 8787764) | |
| Seal | 55557231 (replaces 9309204) | |
| Flange sealant | 90297970 | |
| Gasket | 7569346 | |
| Gasket | 7561772 | |
| Gasket | 7566433 | |
| O-ring | 30543193 (replaces 9125824) | |
| Gasket | 7588981 | |
| Gasket | 7588916 | |
| Gasket | 8374639 | |
| Gasket | 8336877 | |
| 2 | Gasket kit | 9337221 |
| Gasket | 7582315 | |
| 3 | Gasket kit | 9337247 |
| 3 | Gasket kit | 8819831 |
| Gasket | 7584436 | |
| Gasket | 7518996 | |
| Gasket | 9181348 (replaces 7585045) | |
| Gasket kit | 8822041 (replaces 9321464) | |
| 3 | Gasket kit | 9321597 |
| Gasket | 9181512 (replaces 8787111) | |
| Gasket | 9126277 | |
| 4 | Gasket kit | 8822041 (replaces 8818254) |
| Plug | 7500069 | |
| Gasket | 55555635 (replaces 7588056) | |
| Gasket | 55555634 (replaces 7523962) | |
| Gasket | 55555635 (replaces 7569304) | |
| 5 | Gasket kit | 8817264 |
| Gasket | 8366262 | |
| Gasket | 7507700 | |
| Gasket | 7518970 | |
| 6 | Mounting kit | 9321555 |
| Clamp | 8386450 | |
| Rubber mounting | 9328105 | |
| Rubber mounting | 9365404 | |
| 6 | Mounting kit | 9321563 |
| Clamp | 8336406 |
