Saab 900 1994-1998 Turbocharger

Group 2 Engine, section 2070

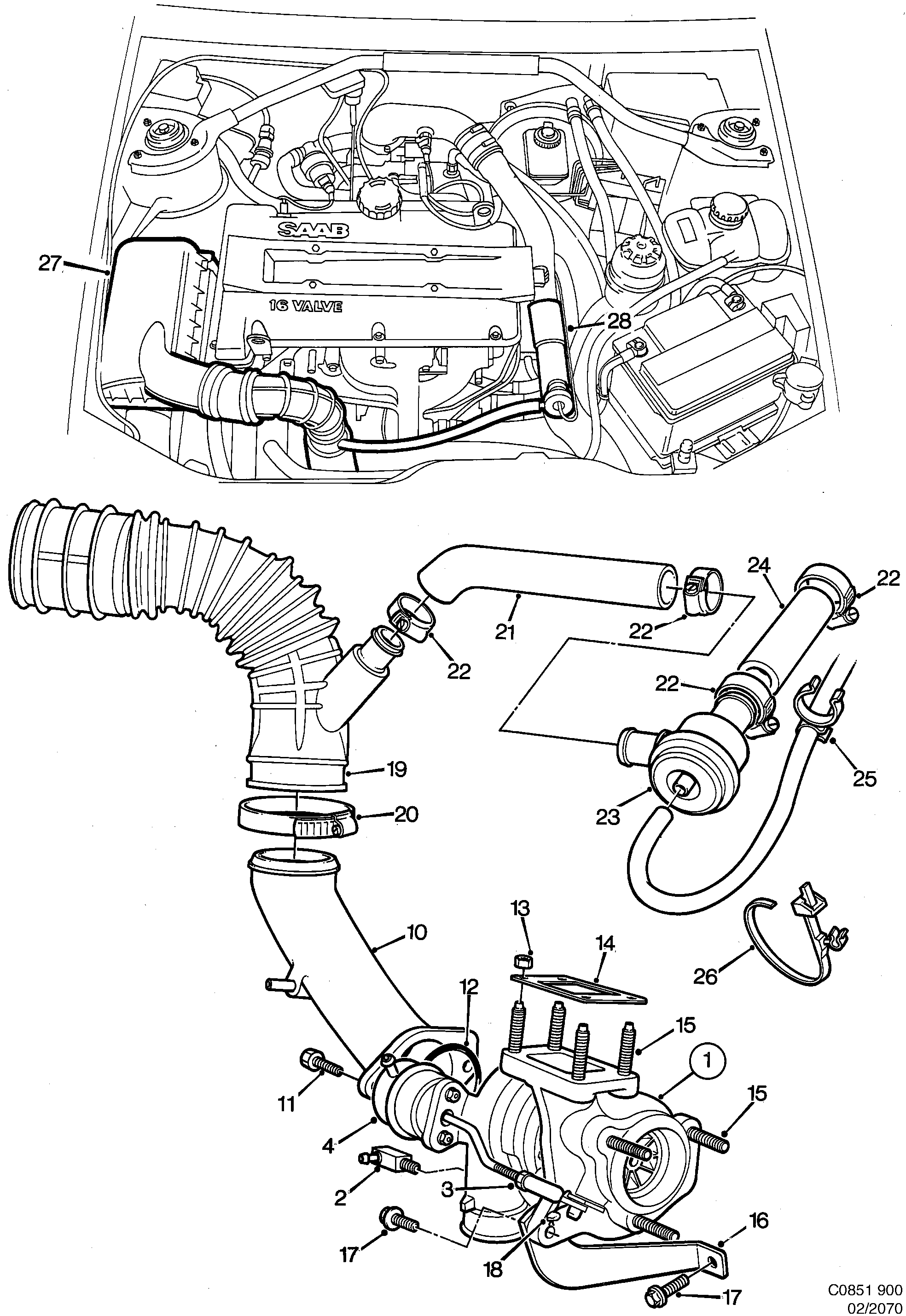

Saab 900 Turbocharger diagram

Pos	Article	Part No.
1	Turbocharger	30584575 (replaces 9146010)
2	Nipple	9169517
3	Nut	9169426
4	Wastegate	9169434
10	Tube	32025870 (replaces 9143819)
10	Tube	93196943 (replaces 9180480)
11	Screw	92151823 (replaces 8059586)
11	Screw	11900355 (replaces 7978117)
12	O-ring	30551930 (replaces 9147844)
13	Nut	30520445 (replaces 9116674)
14	Gasket	9113937
15	Screw	90490326 (replaces 9357138)
16	Brace	9146150
17	Screw	7978075 (replaces 8059768)
18	Sealing kit	9185489 (replaces 8818569)
18	Sealing kit	9185489
19	Hose	4228532
20	Hose clamp	92153079 (replaces 7970148)
21	Hose	4444253
22	Hose clamp	7970098
23	Charge air bypass valve	4441895 (replaces 4391157)
24	Hose	4444261
25	Clamp	7398407
26	Tie strap	7398977
