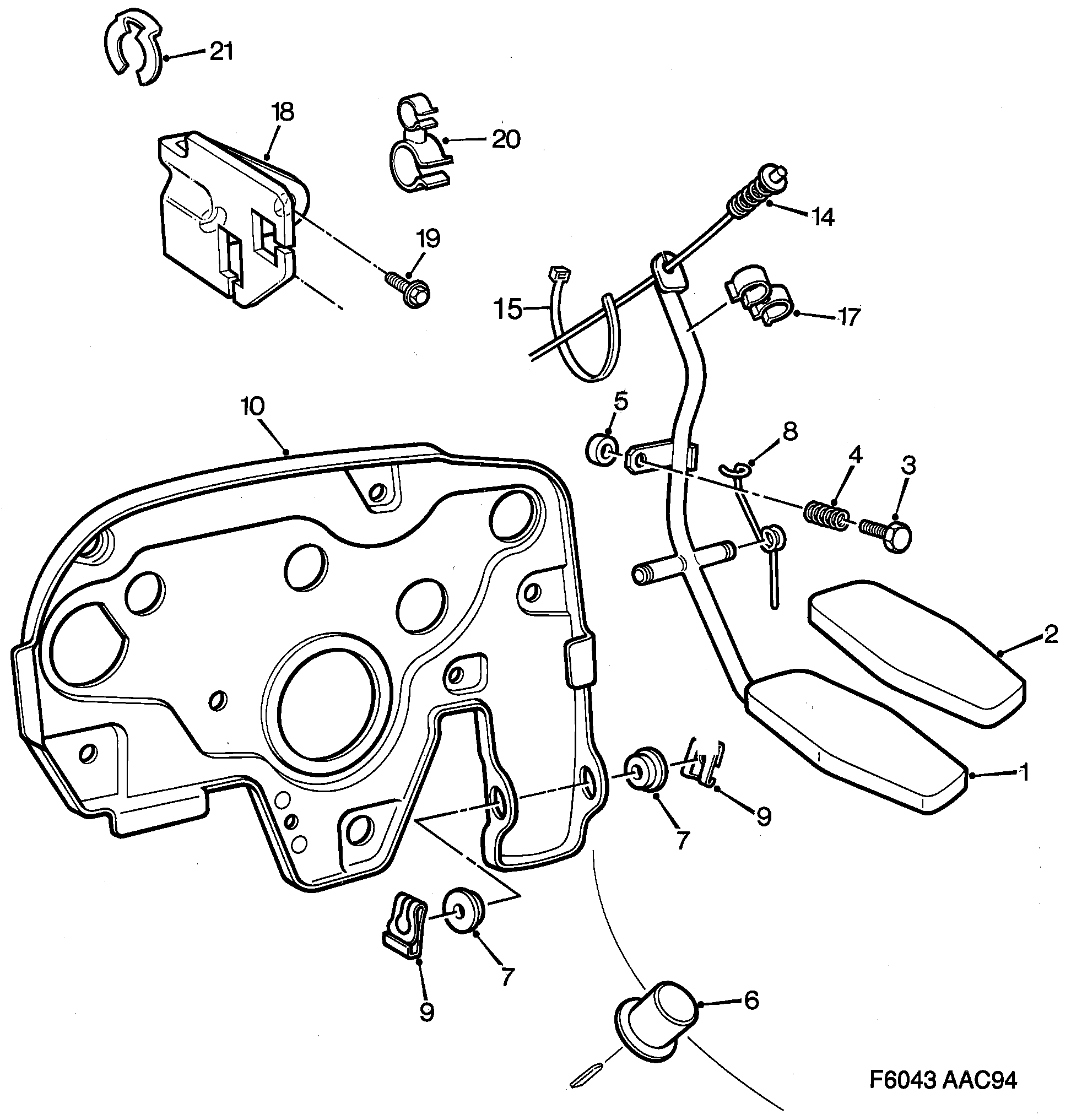

Group 2 Engine, section 2040
| Pos | Article | Part No. |
|---|---|---|
| 1 | Accelerator arm | 90410179 (replaces 4244687) |
| 1 | Accelerator arm | 4242004 |
| 2 | Pedal pad | 4244679 |
| 2 | Pedal pad | 4241998 |
| 3 | Screw | 4345815 |
| 4 | Compression spring | 90076107 (replaces 4241972) |
| 5 | Rubber stop | 9292075 (replaces 4241956) |
| 6 | Rubber stop | 4373759 |
| 6 | Rubber stop | 4373767 |
| 7 | Bearing washer | 4242079 |
| 8 | Return spring | 4399564 |
| 9 | Clip | 90278102 (replaces 4345443) |
| 14 | Cable | 4444121 |
| 14 | Cable | 4444139 |
| 14 | Cable | 4228938 |
| 14 | Cable | 4444014 |
| 14 | Cable | 4228912 |
| 14 | Cable | 4444006 |
| 14 | Cable | 4228953 |
| 14 | Cable | 4444022 |
| 15 | Tie strap | 11900513 (replaces 7971880) |
| 17 | Clamp | 7398464 |
| 18 | Bracket | 90490001 |
| 19 | Screw | 11093961 (replaces 4500351) |
| 20 | Clamp | 7539984 |
| 21 | Lock ring | 4227823 |
