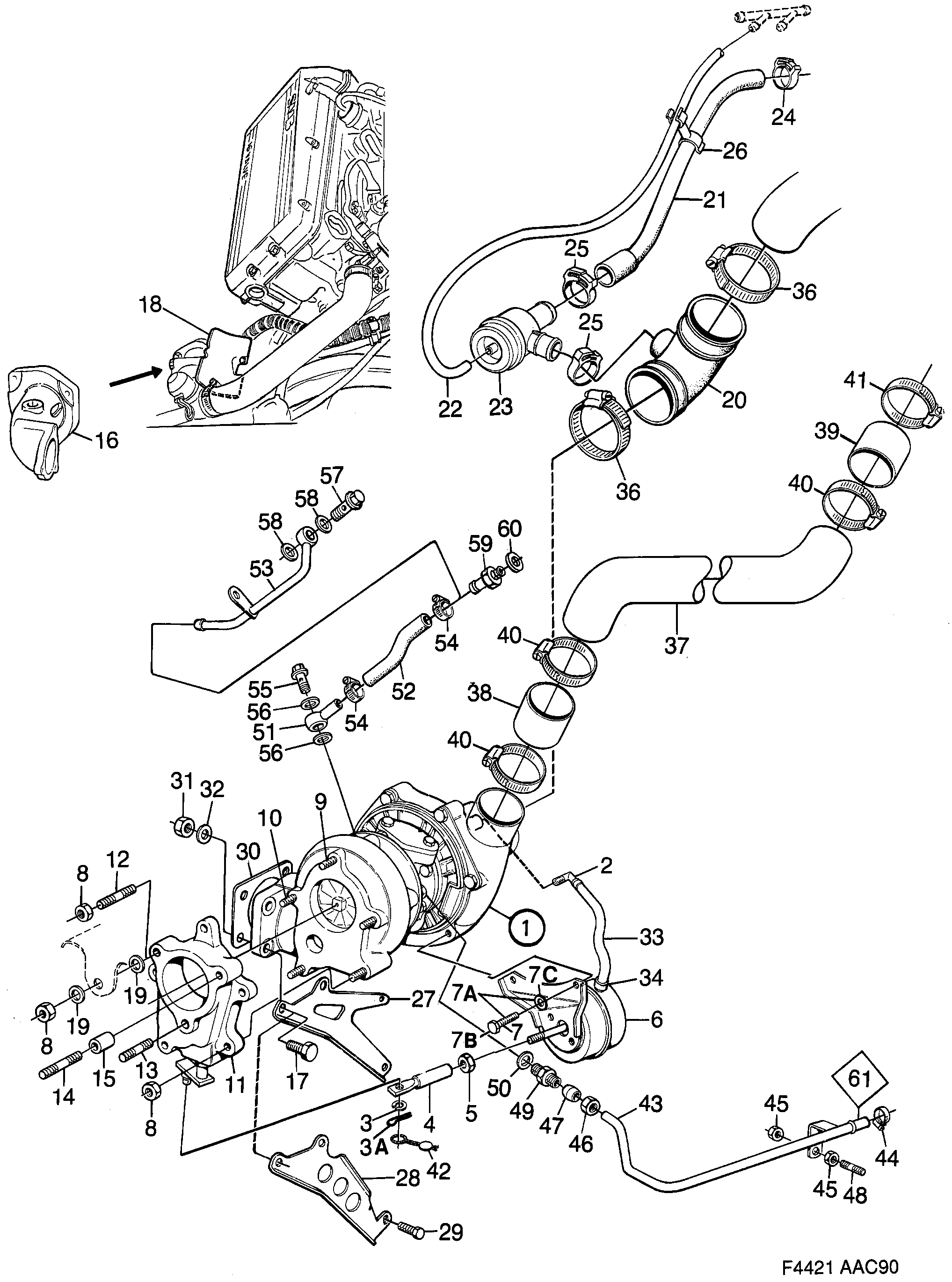

Group 2 Engine, section 2030
| Pos | Article | Part No. |
|---|---|---|
| 1 | Turbocharger | 32000355 (replaces 9119306) |
| 1 | Turbocharger | 7486038 |
| 1 | Turbocharger | 30520496 (replaces 9119033) |
| 1 | Turbocharger | 8789778 |
| 2 | Nipple | 8787319 |
| 2 | Nipple | 7565708 |
| 2 | Nipple | 8787301 |
| 3 | Retaining ring | 55558372 (replaces 9350505) |
| 3A | Lock needle | 8925067 |
| 4 | End piece | 9356338 |
| 5 | Press ring | 9350570 |
| 6 | Pressure regulator | 9321431 |
| 6 | Pressure regulator | 9321449 |
| 6 | Pressure regulator | 9321720 |
| 6 | Pressure regulator | 8819955 |
| 7 | Screw | 9350471 |
| 7A | Screw | 8788754 |
| 7A | Screw | 8787277 |
| 7B | Washer | 8787285 |
| 8 | Nut | 92152032 (replaces 7519432) |
| 9 | Stud | 7565716 |
| 10 | Stud | 7565658 |
| 11 | Cover | 8787335 |
| 11 | Throttle body | 7565724 |
| 12 | Screw | 7520216 |
| 13 | Screw | 7520208 |
| 14 | Screw | 7520190 |
| 15 | Sleeve | 8367864 |
| 16 | Flange coupling | 7517378 |
| 16 | Flange coupling | 7524168 |
| 17 | Screw | 7978794 (replaces 8148744) |
| 18 | Heat shield | 7517089 |
| 19 | Washer | 92153033 (replaces 8029985) |
| 20 | Hose | 7528995 |
| 21 | Hose | 7533185 |
| 22 | Vaccum hose | 9136243 |
| 23 | Valve | 4441895 (replaces 9390022) |
| 23 | Charge air bypass valve | 4441895 (replaces 4391157) |
| 24 | Hose clamp | 7970064 |
| 25 | Hose clamp | 7970098 (replaces 7977234) |
| 25 | Hose clamp | 7970098 |
| 26 | Clamp | 7398233 |
| 27 | Brace | 7513674 |
| 28 | Brace | 7513682 |
| 29 | Screw | 8083933 (replaces 8082976) |
| 29 | Screw | 8083941 |
| 30 | Gasket | 8366262 |
| 31 | Nut | 7519291 |
| 32 | Washer | 8030009 |
| 32 | Washer | 7985179 |
| 33 | Hose | 9350372 |
| 34 | Clamp | 9350380 |
| 34 | Hose clamp | 7973522 |
| 36 | Hose clamp | 92153079 (replaces 7970148) |
| 37 | Tube | 4022190 |
| 38 | Hose | 4904702 (replaces 7526288) |
| 39 | Hose | 4022182 |
| 40 | Hose clamp | 92153077 (replaces 7970130) |
| 41 | Hose clamp | 92153080 (replaces 7970155) |
| 42 | Sealing kit | 9185489 (replaces 8818569) |
| 43 | Tube | 7549918 |
| 43 | Tube | 7549926 |
| 44 | Hose clamp | 7970049 |
| 45 | Nut | 11900429 (replaces 7967953) |
| 46 | Nut | 8145542 |
| 47 | Ferrule | 8132227 |
| 48 | Stud | 7549991 |
| 48 | Stud | 7599509 |
| 49 | Nipple | 7584790 |
| 50 | Gasket | 8124158 |
| 51 | Tube | 7588718 |
| 51 | Tube | 7859903 |
| 52 | Hose | 7482953 |
| 52 | Hose | 7859911 |
| 53 | Water pipe | 7481427 |
| 54 | Hose clamp | 90572589 (replaces 7963515) |
| 55 | Screw | 7583628 |
| 57 | Banjo screw | 92150977 (replaces 8123903) |
| 58 | Gasket | 92150435 (replaces 8124141) |
| 59 | Nipple | 7486806 |
| 60 | Seal | 4161162 (replaces 8326712) |
