Saab 900 1986-1989 Thermostat, etc

Group 2 Engine, section 2020

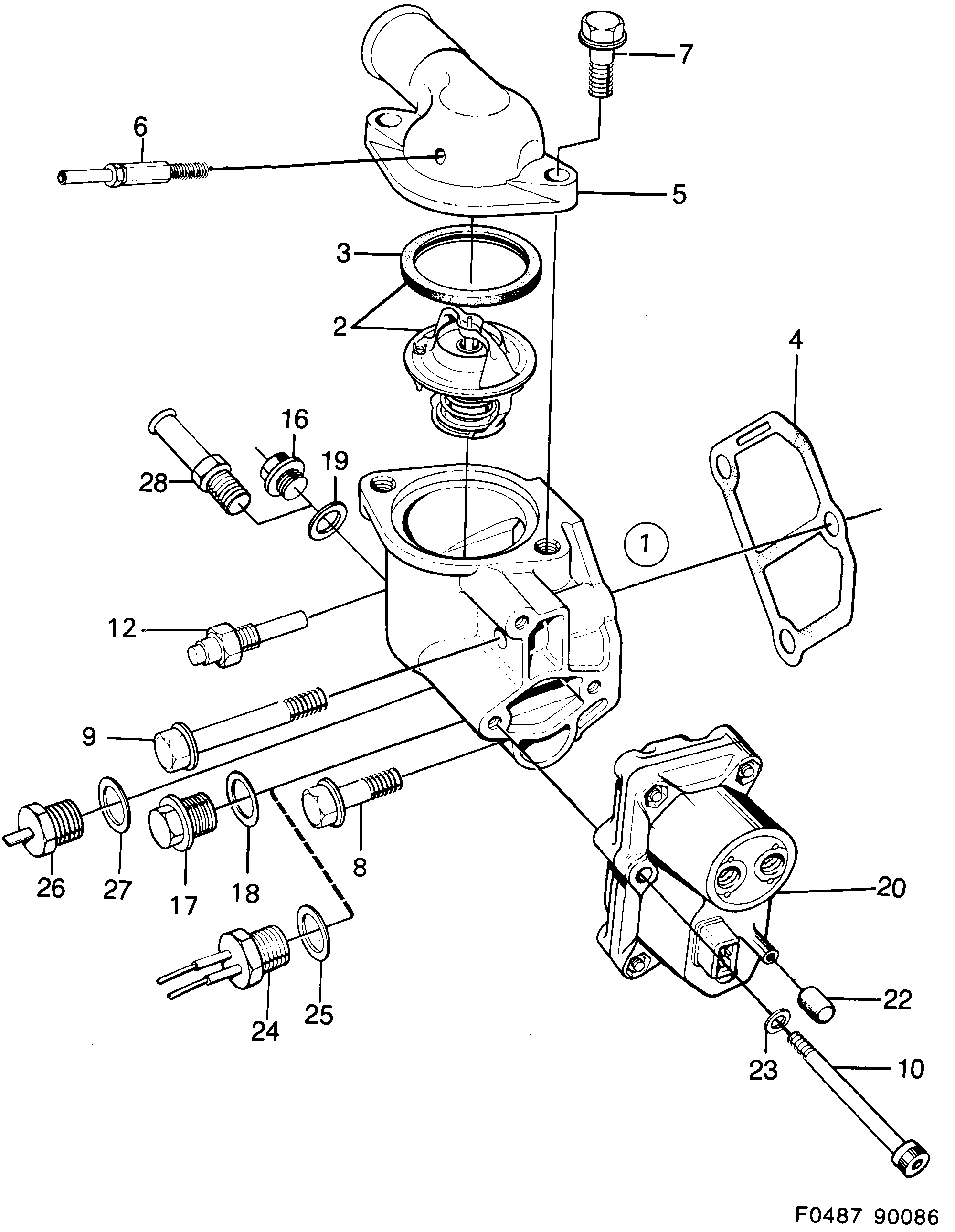

Saab 900 Thermostat, etc diagram

Pos	Article	Part No.
1	Thermostat housing	9311481
1	Thermostat housing	9311697
1	Thermostat housing	7588692
2	Thermostat kit	8389512
2	Thermostat kit	8389512 (replaces 9320284)
2	Thermostat kit	9336835
2	Thermostat kit	9337551
3	Gasket	9176165 (replaces 8352692)
4	Gasket	7566532 (replaces 7561202)
4	Gasket	7566532
5	Cover	8369985
6	Valve	8859225 (replaces 9307497)
7	Screw	55562873 (replaces 8082968)
8	Screw	8125205
9	Screw	8125262
10	Screw	9350661
10	Screw	7516537
10	Screw	9350687
12	Sensor	30539720 (replaces 8800914)
16	Plug	8348047
16	Plug	7563042 (replaces 7564222)
16	Plug	7563042 (replaces 8123721)
17	Plug	9310004
18	Gasket	8365769
19	Gasket	92150435 (replaces 8348849)
19	Gasket	92150435 (replaces 8124141)
20	Regulator	7515554
20	Regulator	8819849
20	Warming up regulator	9114877
20	Valve	9351438
20	Regulator	8362998
22	Plug	9312042
23	Washer	8029951
24	Thermo monitor	7564354
24	Thermo monitor	8857443
26	Switch	8361362
28	Nipple	7486806
