Saab 900 1990-1993 Accelerator control

Group 2 Engine, section 2000

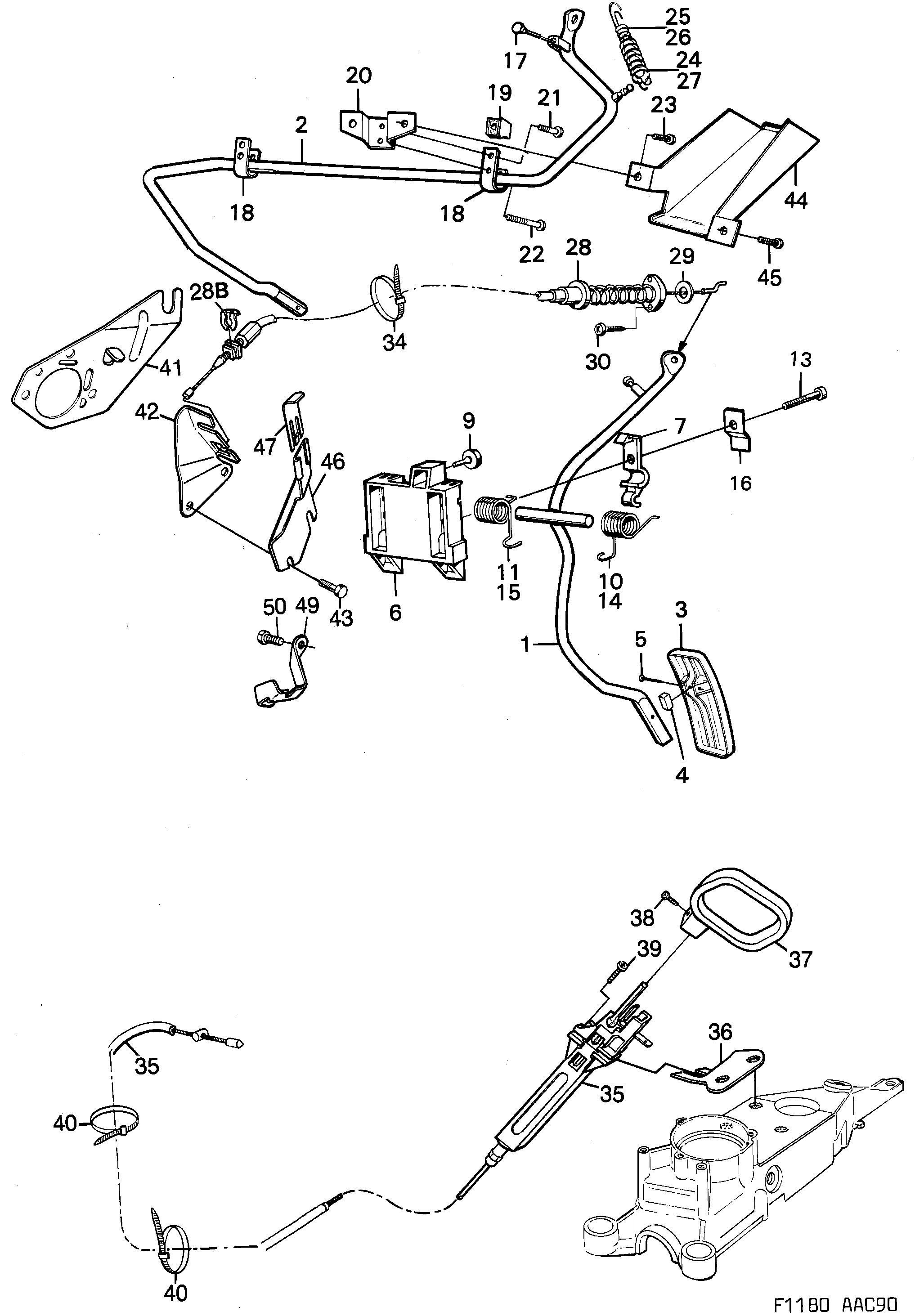

Saab 900 Accelerator control diagram

Pos	Article	Part No.
1	Pedal arm	8990913
2	Accelerator arm	8986192
3	Pedal plate	7183965
4	Spacer	7183973
5	Rivet	7958770
6	Bracket	8935389
7	Cap	8935397
9	Plug	8206203
10	Spring	8941601
11	Spring	8941619
13	Screw	8097933
14	Spring	8939480
15	Spring	8939498
16	Brace	8940587
17	Rubber plug	7035801
18	Brace	8941528
19	Lug	8941536
20	Bracket	8941155
21	Screw	7922891
22	Screw	7922933
23	Screw	92151821 (replaces 8059552)
24	Spring	8941544
25	Spring	8941551
26	Spring	8941569
27	Spring	8941577
28	Cable	7533102
28	Cable	7537525
28	Cable	7533110
28B	Lock ring	7533136
29	Seal	9316142
30	Screw	7922438
34	Tie strap	7971864
35	Choke control	7537269
36	Brace	9348004
37	Handle	9347956
38	Screw	7973589
39	Screw	7922818
40	Tie strap	11900513 (replaces 7971880)
41	Bracket	7506934
42	Bracket	7520349
43	Screw	7985930 (replaces 8019903)
44	Plate	8943391
45	Screw	7922420
46	Bracket	7521123
49	Bracket	7581432
50	Screw	8097867 (replaces 8097875)
