Saab 900 1986-1989 Coolant pump

Group 2 Engine, section 1990

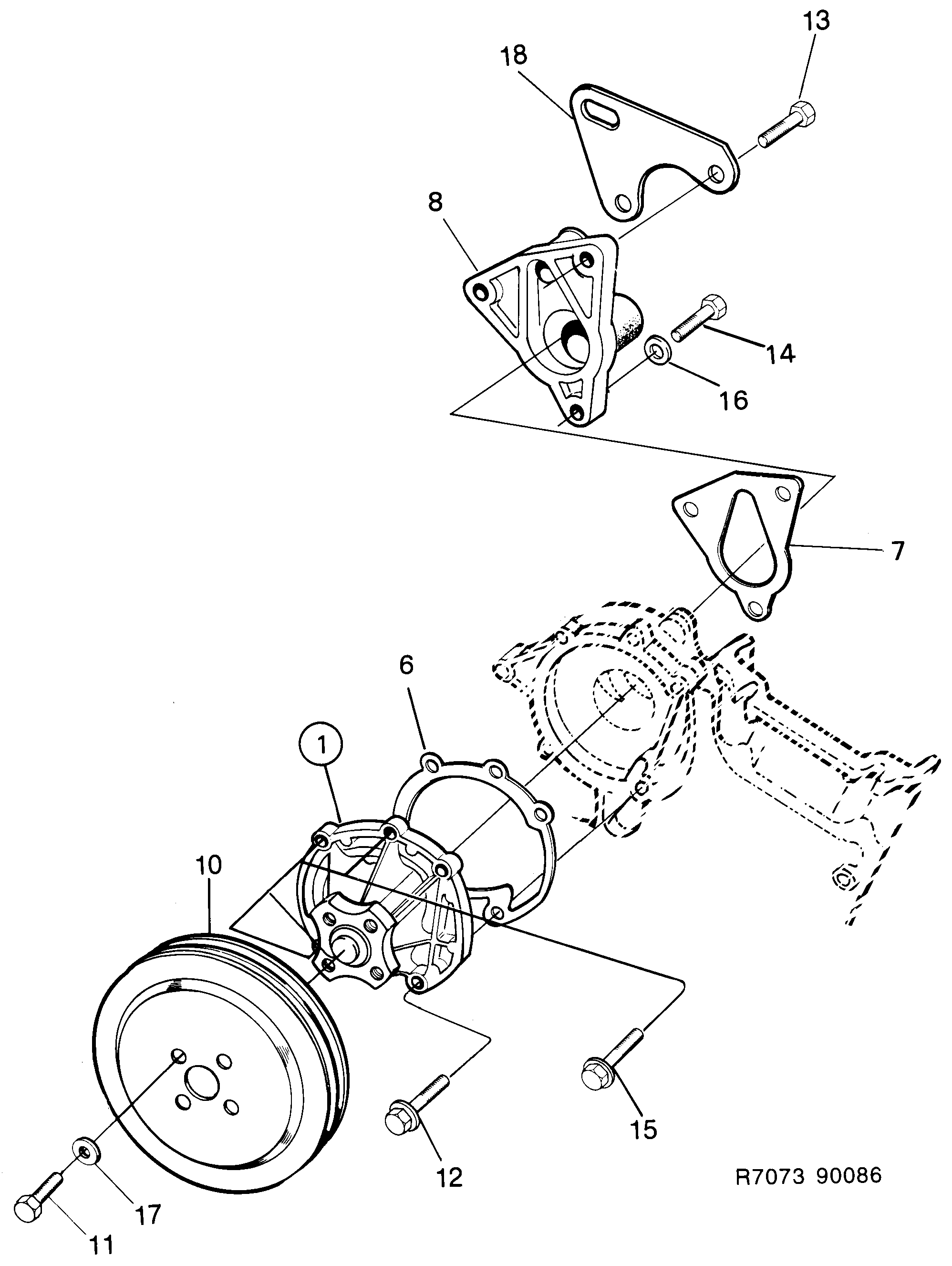

Saab 900 Coolant pump diagram

Pos	Article	Part No.
1	Coolant pump	8817900
6	Gasket	7566516 (replaces 9353442)
6	Gasket	7566516
7	Gasket	7563687 (replaces 9354978)
7	Gasket	7563687
8	Cover	9355181
10	Pulley	7501943
11	Screw	7985930 (replaces 8019903)
12	Screw	8125262
13	Screw	8083941
14	Screw	8083933
14	Screw	8083933 (replaces 8082976)
15	Screw	8125197
16	Washer	92153033 (replaces 8029985)
17	Washer	8073223
18	Brace	9313222
