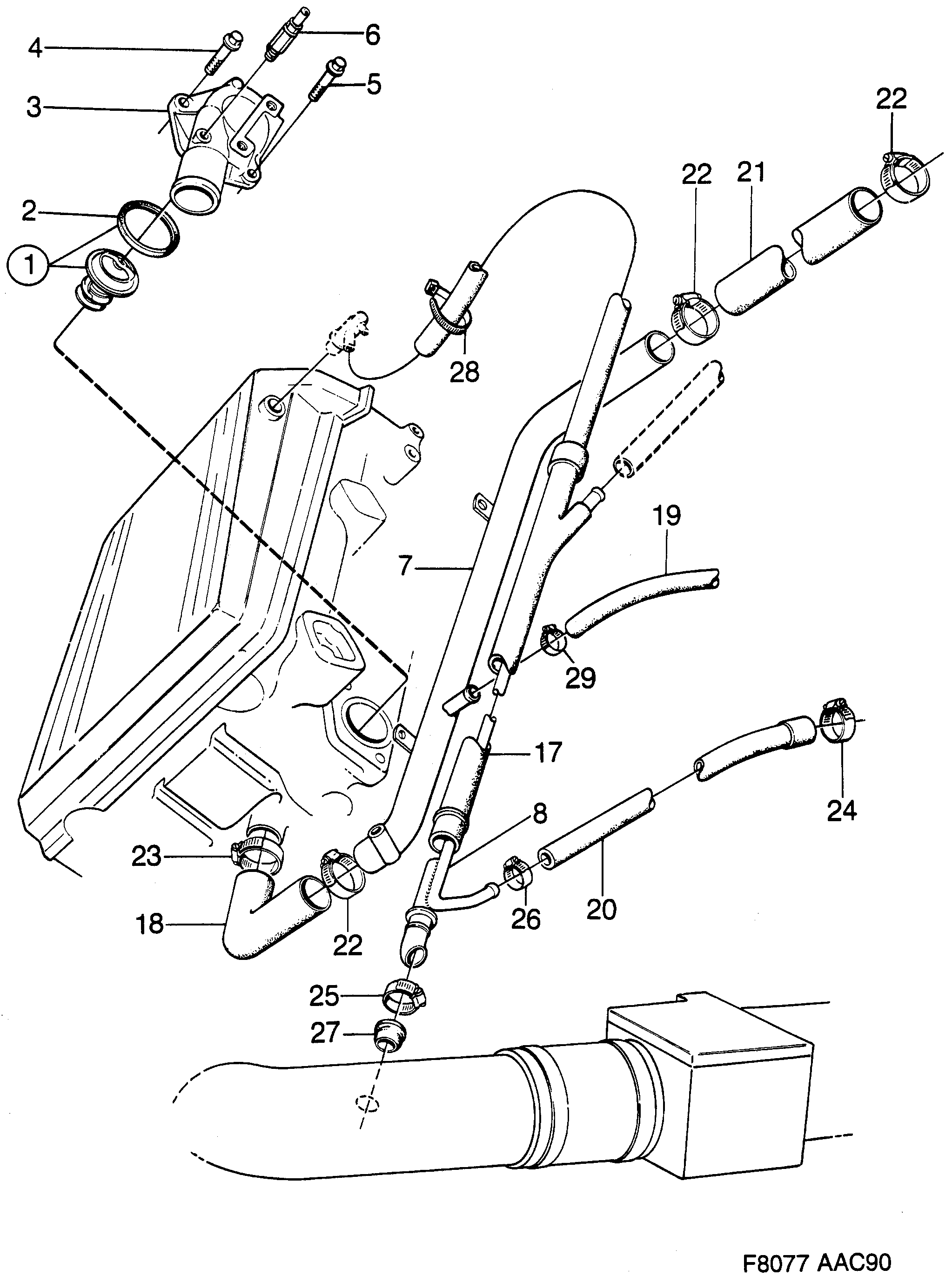

Group 2 Engine, section 1970
| Pos | Article | Part No. |
|---|---|---|
| 1 | Thermostat kit | 30577561 (replaces 8817298) |
| 1 | Thermostat kit | 8817538 |
| 2 | Gasket | 9176165 (replaces 8352692) |
| 3 | Cover | 30520465 (replaces 9117516) |
| 4 | Screw | 8125189 |
| 5 | Screw | 8125197 |
| 7 | Water pipe | 7480759 |
| 8 | Tube | 8859548 |
| 17 | Hose | 7517014 |
| 17 | Hose | 7523913 |
| 18 | Hose | 7504624 |
| 19 | Hose | 7482953 |
| 20 | Hose | 7519531 |
| 23 | Hose clamp | 7970098 |
| 24 | Hose clamp | 90572589 (replaces 7970056) |
| 25 | Hose clamp | 7970064 (replaces 7963523) |
| 26 | Hose clamp | 7970049 |
| 27 | Bushing | 7517147 |
| 28 | Tie strap | 1800259 |
| 28 | Tie strap | 8153611 |
| 29 | Hose clamp | 90572589 (replaces 7963515) |
