Saab 900 1986-1989 Intercooler

Group 2 Engine, section 1960

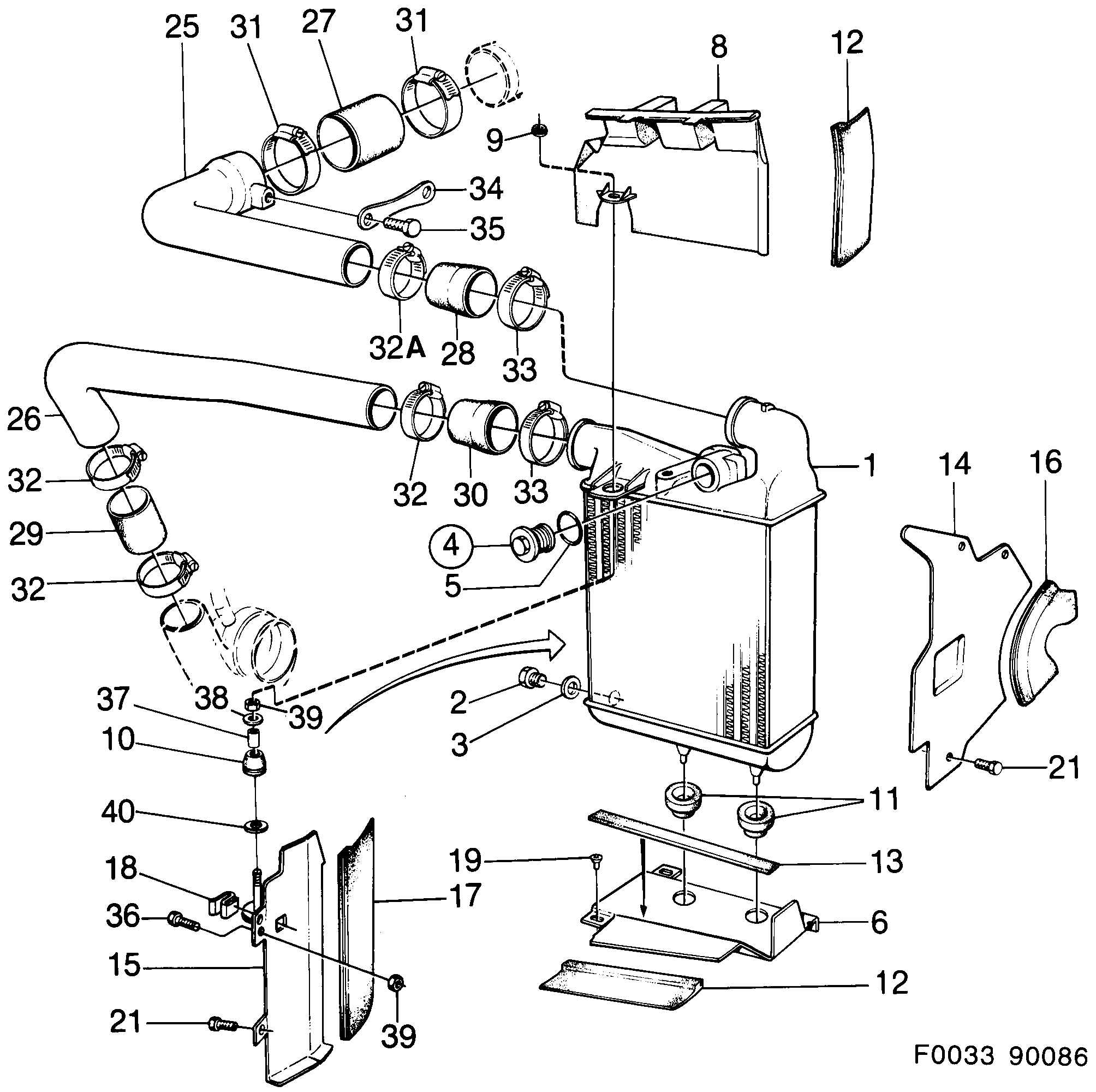

Saab 900 Intercooler diagram

Pos	Article	Part No.
1	Radiator	7543887
1	Radiator	7544539
1	Charge air cooler	7599418
2	Plug	7540610
3	Gasket	7540628
4	Valve	7550023
5	O-ring	7972797
6	Bracket	7513070
8	Bracket	7544505
9	Bushing	8573966
10	Rubber bushing	7543762
11	Rubber bushing	7512593
12	Seal	7513096
13	Seal	7513112
14	Plate	7512676
14	Plate	7547623
14	Valance	7512718
14	Plate	7547631
15	Valance	7543846
16	Seal	7512775
17	Seal	7512742
18	Clamp	7958861
19	Rivet	7972045
19	Rivet	7961659
19	Rivet	92153058 (replaces 7972490)
21	Screw	7973001 (replaces 7973159)
25	Tube	7527302
25	Tube	8977787
26	Tube	7527310
26	Tube	8978314
27	Hose	7526262
28	Hose	9387697
28	Hose	8976037
29	Hose	4904702 (replaces 7526288)
30	Hose	7526841
31	Hose clamp	92153080 (replaces 7970155)
32	Hose clamp	92153077 (replaces 7970130)
32A	Hose clamp	92153079 (replaces 7970148)
34	Striker plate	7506645
35	Screw	92153146 (replaces 7972607)
36	Screw	7965544
37	Spacer tube	7544356
38	Washer	7987506 (replaces 7975469)
39	Nut	11900428 (replaces 7971658)
40	Spacer washer	7549041
