Saab 900 1986-1989 Coolant oil cooler Automatic transmission

Group 2 Engine, section 1930

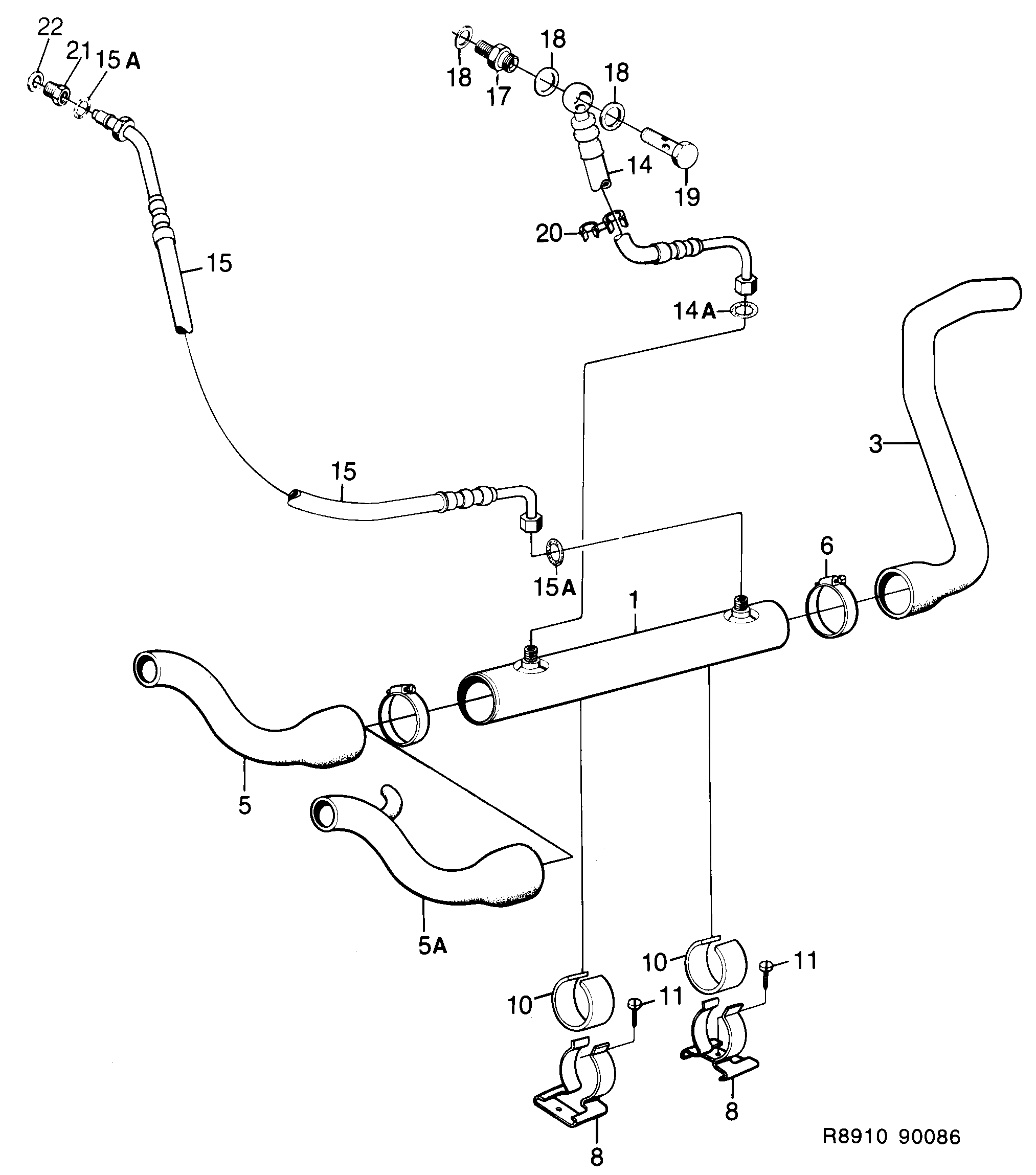

Saab 900 Coolant oil cooler Automatic transmission diagram

Pos	Article	Part No.
1	Oil cooler	9362997
1	Oil cooler	7547730
3	Hose	9363615
5	Hose	7546393
5	Hose	7548811
5A	Hose	4121802 (replaces 7548829)
6	Hose clamp	92153077 (replaces 7970130)
8	Bracket	7540917
10	Valve	9301383
11	Screw	7922891
14	Hydraulic hose	7546385
14	Hydraulic hose	7547813
14A	O-ring	7977580
15	Hydraulic hose	7543770
15	Hydraulic hose	7547292
15	Hydraulic hose	7547805
17	Nipple	7540032
18	Seal	4161162 (replaces 8326712)
18	Seal	4161162 (replaces 8981961)
19	Banjo screw	12773569 (replaces 9301532)
20	Clamp	30507607 (replaces 8986440)
20	Clip	92152223 (replaces 7559768)
21	Nipple	7546971
22	Seal	7599426 (replaces 9301508)
22	Seal	7599426
