Saab 900 1986-1989 Air oil cooler Engine and aut. transm.

Group 2 Engine, section 1870

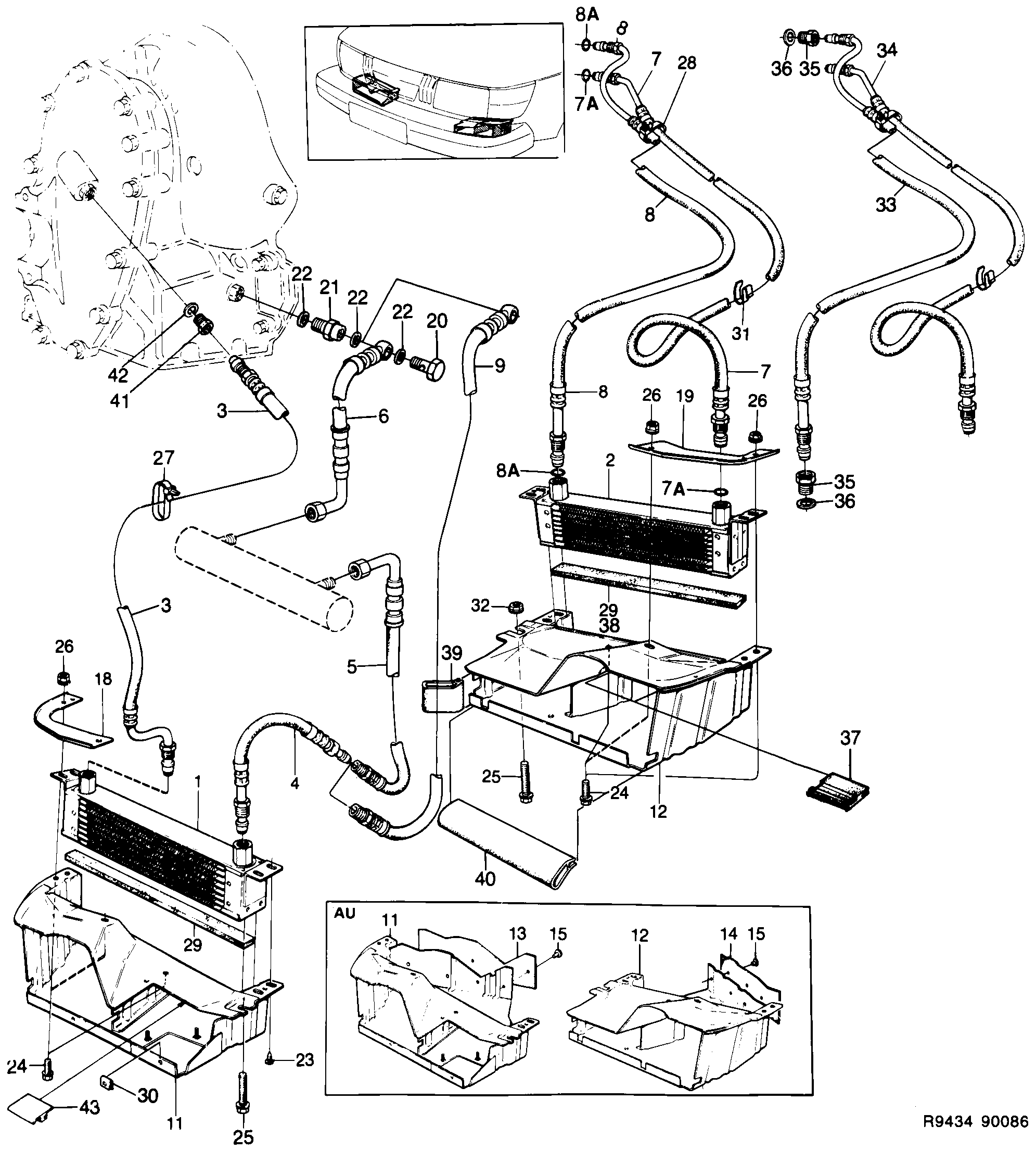

Saab 900 Air oil cooler Engine and aut. transm. diagram

Pos	Article	Part No.
1	Oil cooler	7540289
1	Oil cooler	7546963
2	Oil cooler	7513450
2	Oil cooler	7546567
3	Hydraulic hose	7543655
3	Hydraulic hose	7547706
3	Hydraulic hose	7547862
3	Hydraulic hose	7549868
4	Hydraulic hose	7543663
4	Hydraulic hose	7547847
5	Hydraulic hose	7544372
6	Hydraulic hose	7546385
7	Hydraulic hose	7546476
7A	O-ring	7977580
8	Hydraulic hose	7546484
9	Oil hose	7540172
9	Hydraulic hose	7547821
11	Protecting casing	7541899
11	Protecting casing	7541410
11	Cassette	7546922
11	Cassette	7547029
12	Protecting casing	7541881
12	Protecting casing	7541402
12	Cassette	7546773
12	Cassette	7547003
13	Baffle	7544448
14	Baffle	7544430
15	Rivet	8235178 (replaces 7977325)
18	Stiffening bar	7540313
19	Stiffening bar	7540305
20	Banjo screw	12773569 (replaces 9301532)
21	Nipple	7540032
22	Seal	4161162 (replaces 8326712)
22	Seal	4161162 (replaces 8981961)
23	Screw	7922891
24	Screw	7974694
24	Screw	92151823 (replaces 8059586)
25	Screw	7974447
26	Nut	11900428 (replaces 7971658)
27	Tie strap	11900513 (replaces 7971880)
29	Seal	7541519
30	Nut	7975741
31	Clip	7542715
32	Nut	7975220
33	Hydraulic hose	7543275
34	Hydraulic hose	7543671
35	Nipple	7572910
36	Seal	7599426 (replaces 9301508)
37	Seal	7546757
37	Seal	7548787
38	Seal	7546955
39	Seal	7548795
40	Seal	7548803
41	Nipple	7546971
42	Seal	7599426
	Oil cooler	7540297
	Oil cooler kit	9337270
	Oil cooler	7540388
	Conversion kit	9320268
