Saab 900 1990-1993 Coolant oil cooler Automatic transmission

Group 2 Engine, section 1850

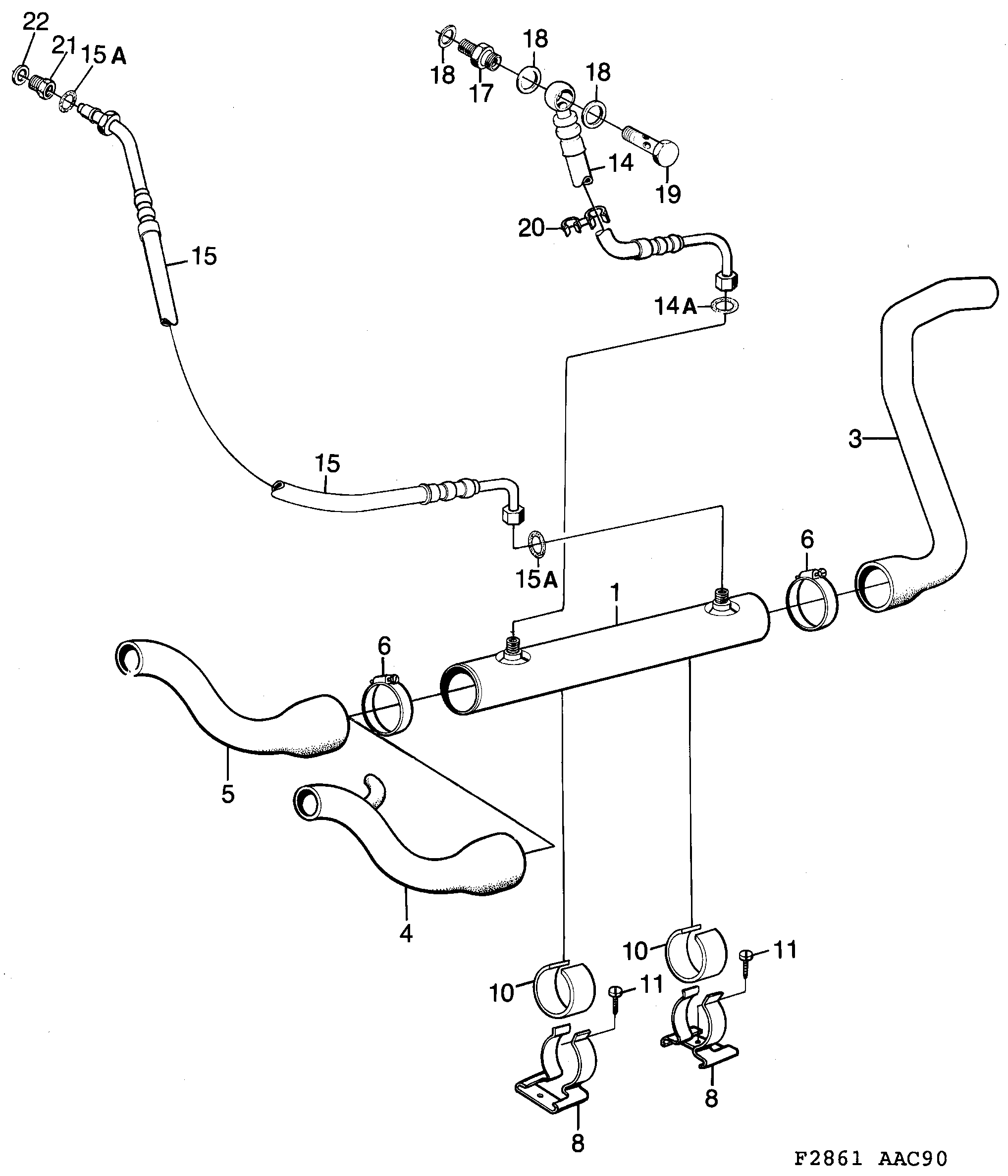

Saab 900 Coolant oil cooler Automatic transmission diagram
PosArticlePart No.
1Oil cooler7547730
3Hose9363615
4Hose4121802 (replaces 7548829)
4Hose4121802
5Hose7548811
5Hose4121810
6Hose clamp92153077 (replaces 7970130)
8Bracket7540917
10Valve9301383
11Screw7922891
14Hydraulic hose7547813
14AO-ring7977580
15Hydraulic hose7547805
17Nipple7540032
18Seal4161162 (replaces 8981961)
19Banjo screw12773569 (replaces 9301532)
20Clip92152223 (replaces 7559768)
21Nipple7546971
22Seal7599426
