Saab 900 1994-1997 Air oil cooler

Group 2 Engine, section 1830

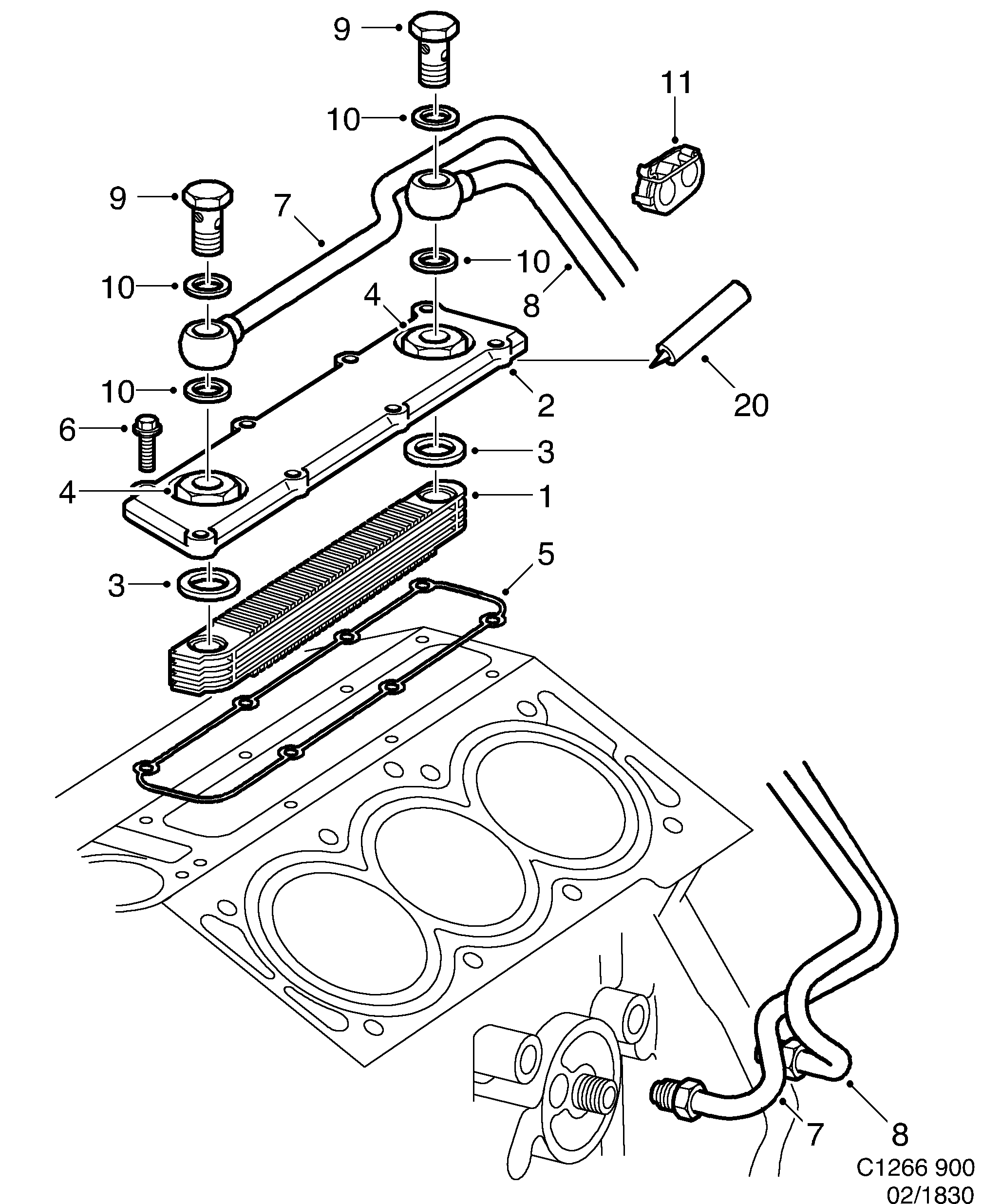

Saab 900 Air oil cooler diagram

Pos	Article	Part No.
1	Oil cooler	4770988 (replaces 4502449)
1	Oil cooler	4770988
2	Cover	90501955 (replaces 4502456)
2	Cover	90501955 (replaces 4770152)
3	Seal	90409175 (replaces 4502472)
4	Nut	90409174 (replaces 4502480)
5	Gasket	93165267 (replaces 4502498)
5	Flange sealant	93165267 (replaces 4620001)
6	Screw	11093601 (replaces 4346854)
7	Oil pipe	9240163 (replaces 4502506)
7	Oil pipe	9240163 (replaces 4620274)
8	Oil pipe	9240164 (replaces 4502514)
8	Oil pipe	9240164 (replaces 4620282)
9	Hollow screw	11064671 (replaces 4502530)
9	Hollow screw	90500651 (replaces 4621397)
10	Sealing ring	11022873 (replaces 4502555)
10	Sealing ring	4621413
11	Bracket	90502262
20	Flange sealant	93165267 (replaces 8781841)
