Saab 900 1990-1993 Air oil cooler Engine and aut. transm.

Group 2 Engine, section 1820

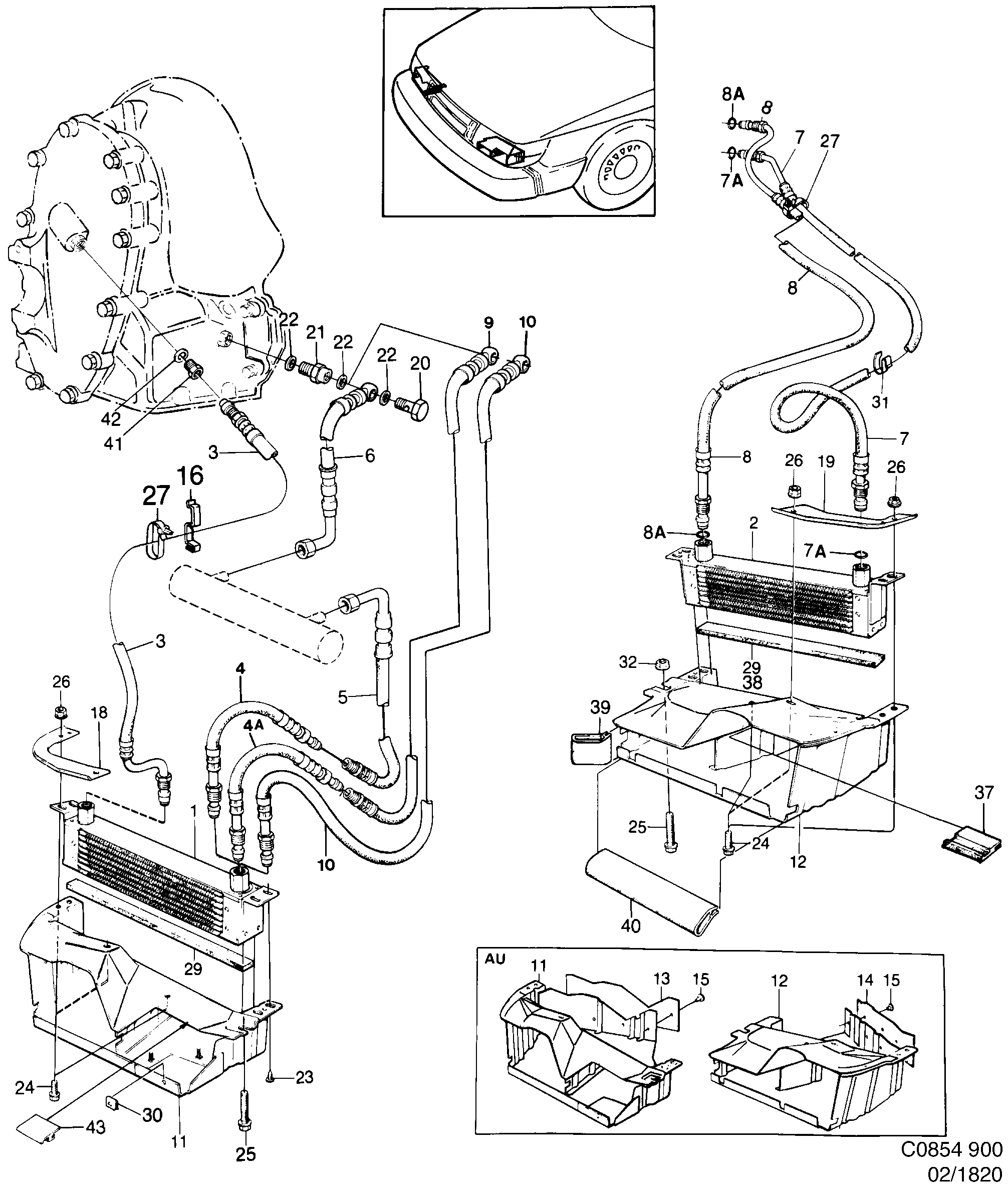

Saab 900 Air oil cooler Engine and aut. transm. diagram

Pos	Article	Part No.
1	Oil cooler	7546963
2	Oil cooler	7546567
3	Hydraulic hose	7549868
4	Hydraulic hose	7547847
5	Hydraulic hose	7544372
6	Hydraulic hose	7546385
7	Hydraulic hose	7546476
7A	O-ring	7977580
8	Hydraulic hose	7546484
9	Hydraulic hose	7547821
10	Hydraulic hose	4118204
11	Cassette	7546922
11	Cassette	7547029
12	Cassette	7546773
12	Cassette	7547003
13	Baffle	7544448
14	Baffle	7544430
15	Pop rivet	8235178
16	Hose retainer	4279287
18	Stiffening bar	7540313
19	Stiffening bar	7540305
20	Banjo screw	12773569 (replaces 9301532)
20	Banjo bolt	12773569 (replaces 8322927)
21	Nipple	7540032
22	Seal	4161162 (replaces 8981961)
22	Seal	4161162
23	Screw	7922891
24	Screw	92151823 (replaces 8059586)
25	Screw	7974447
26	Nut	11900428 (replaces 7971658)
27	Tie strap	11900513 (replaces 7971880)
29	Seal	7541519
30	Nut	7975741
31	Clip	7542715
32	Nut	7975220
37	Seal	7548787
38	Seal	7546955
39	Seal	7548795
40	Seal	7548803
41	Nipple	7546971
42	Seal	7599426
	Oil cooler kit	9337270
	Conversion kit	9320268
