Saab 900 1986-1989 Fan, etc

Group 2 Engine, section 1810

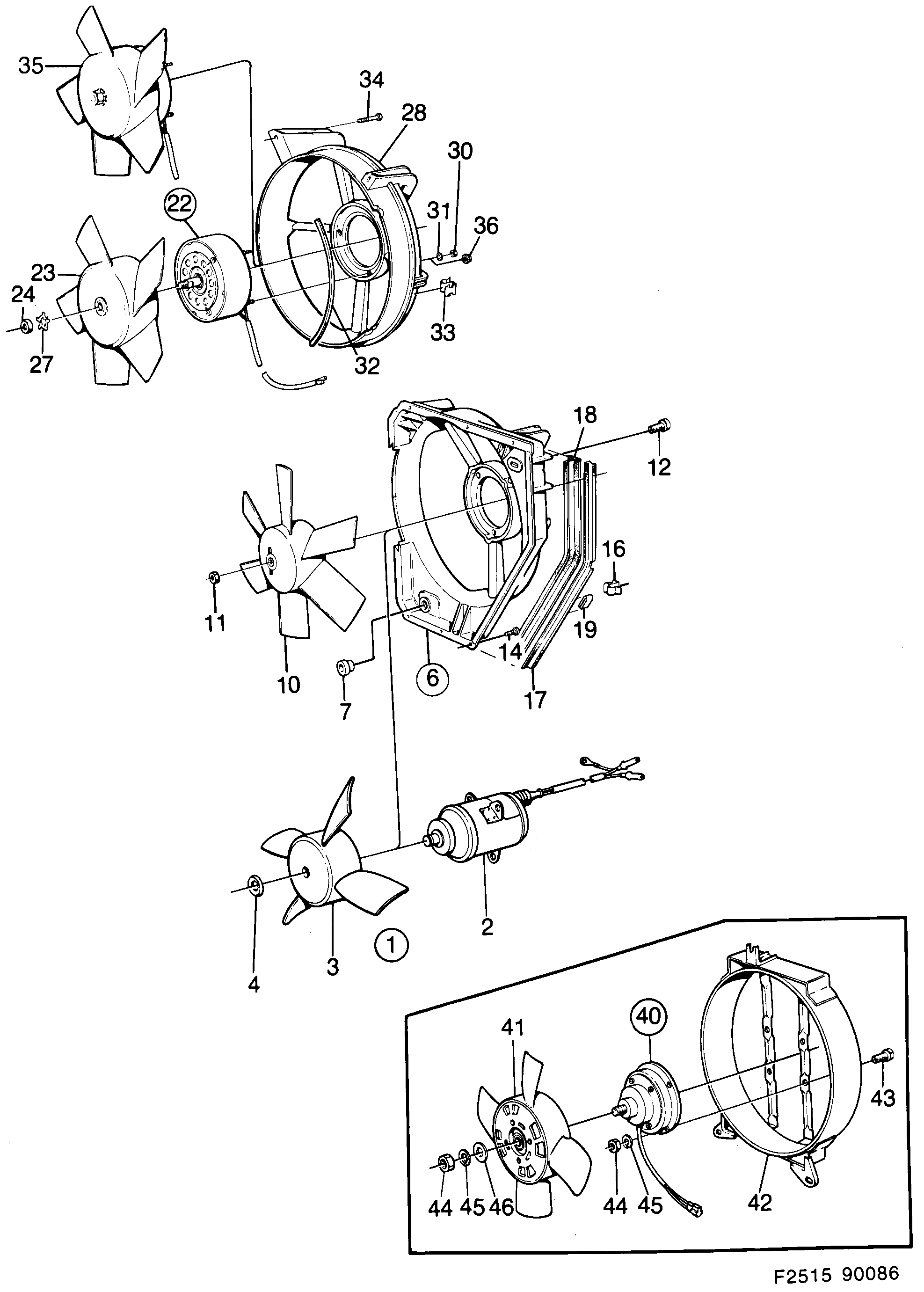

Saab 900 Fan, etc diagram

Pos	Article	Part No.
1	Fan unit	7542772
2	Fan motor	8822728 (replaces 7541717)
3	Fan	7541725
4	Clip	7541733
6	Fan shroud	8319931
6	Fan shroud	4027777
7	Bushing	8384174
10	Fan unit	8330896
11	Nut	7914690
12	Screw	92151821 (replaces 8059552)
12	Screw	7971294
14	Screw	7975444
14	Screw	4027660
14	Screw	7972789
16	Clamp	7155500
17	Moulding	8337875
18	Moulding	7544216
19	Clip	9302787
22	Fan unit	8594764
22	Fan motor	8594806
23	Fan wheel	8539819
24	Nut	8546129
27	Washer	8546137
28	Fan shroud	8337859
28	Fan shroud	7548688
30	Lock nut	8074270
31	Washer	7060999
32	Moulding	9302803
33	Clamp	7548936
33	Clamp	4029211
35	Fan unit	7548191
36	Nut	11900428 (replaces 7971658)
36	Nut	92153044 (replaces 7974298)
40	Fan	8820235
41	Radiator fan	8820243
42	Fan shroud	8820268
43	Screw	7977283 (replaces 7973423)
44	Nut	8151045 (replaces 8050593)
45	Star washer	92152203 (replaces 7915556)
46	Washer	8820300
