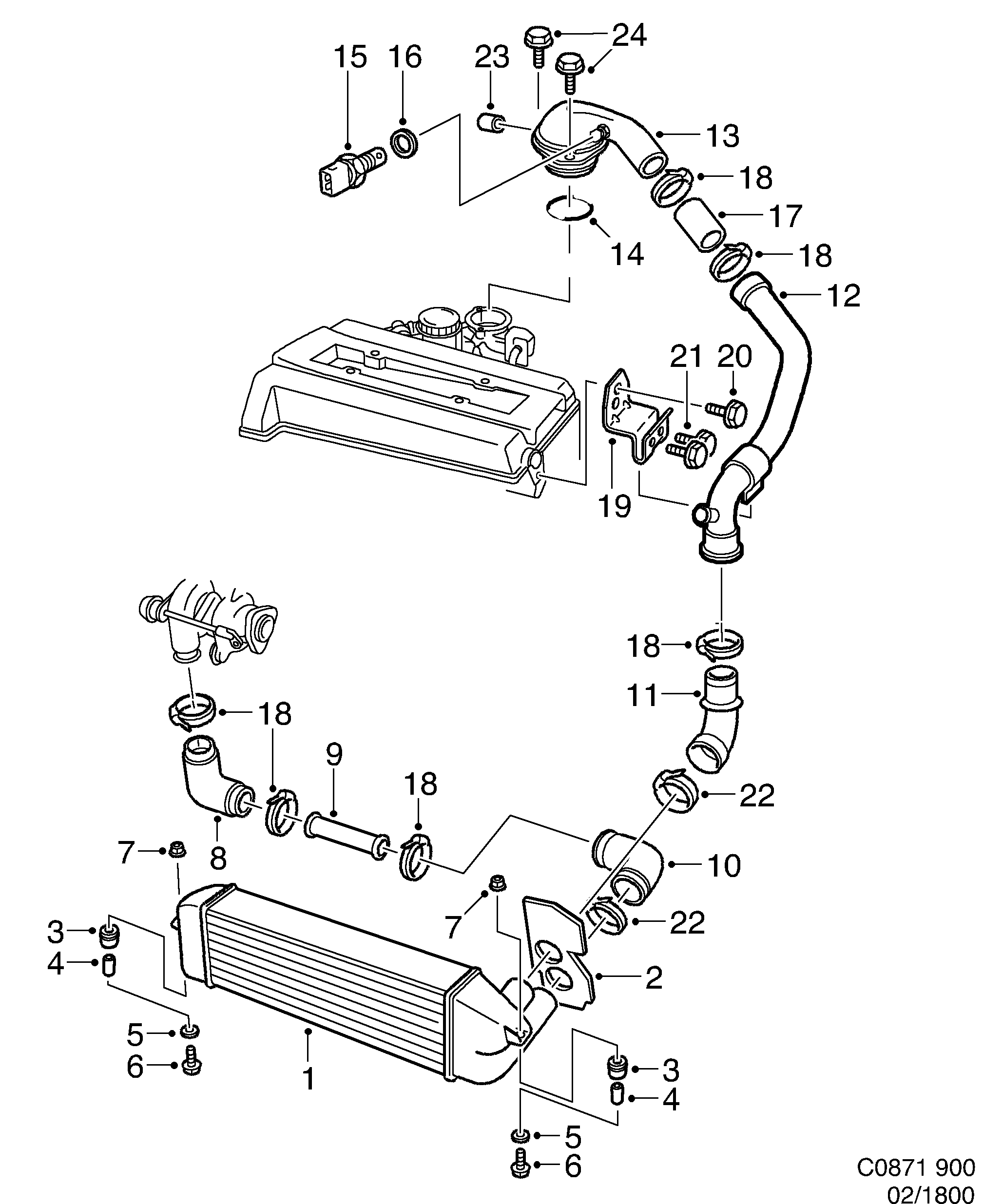

Group 2 Engine, section 1800
| Pos | Article | Part No. |
|---|---|---|
| 1 | Charge air cooler | 4283552 |
| 2 | Air shield | 4283503 |
| 3 | Rubber bushing | 7543762 |
| 4 | Spacer tube | 7544356 |
| 5 | Washer | 7987506 (replaces 7975469) |
| 6 | Hexagon screw | 7978158 |
| 7 | Rivet nut | 9130829 (replaces 7399454) |
| 8 | Hose | 4235735 |
| 9 | Tube | 4444279 |
| 10 | Hose | 4901906 (replaces 4235727) |
| 11 | Hose | 4901898 (replaces 4228805) |
| 12 | Pipe | 5336516 |
| 13 | Pipe elbow | 4228771 |
| 13 | Pipe elbow | 4443875 |
| 14 | O-ring | 4226833 |
| 15 | Intake air temperature sensor | 8859886 |
| 15 | Intake air temperature sensor | 9174442 |
| 16 | Washer | 4161261 |
| 17 | Hose | 4904702 (replaces 7526288) |
| 18 | Hose clamp | 92153077 (replaces 7970130) |
| 19 | Bracket | 4226841 |
| 20 | Screw | 92150012 (replaces 7978182) |
| 21 | Screw | 11900355 (replaces 7978117) |
| 22 | Hose clamp | 92153079 (replaces 7970148) |
| 23 | Bushing | 4394318 |
