Saab 900 1990-1993 Water hoses, etc

Group 2 Engine, section 1790

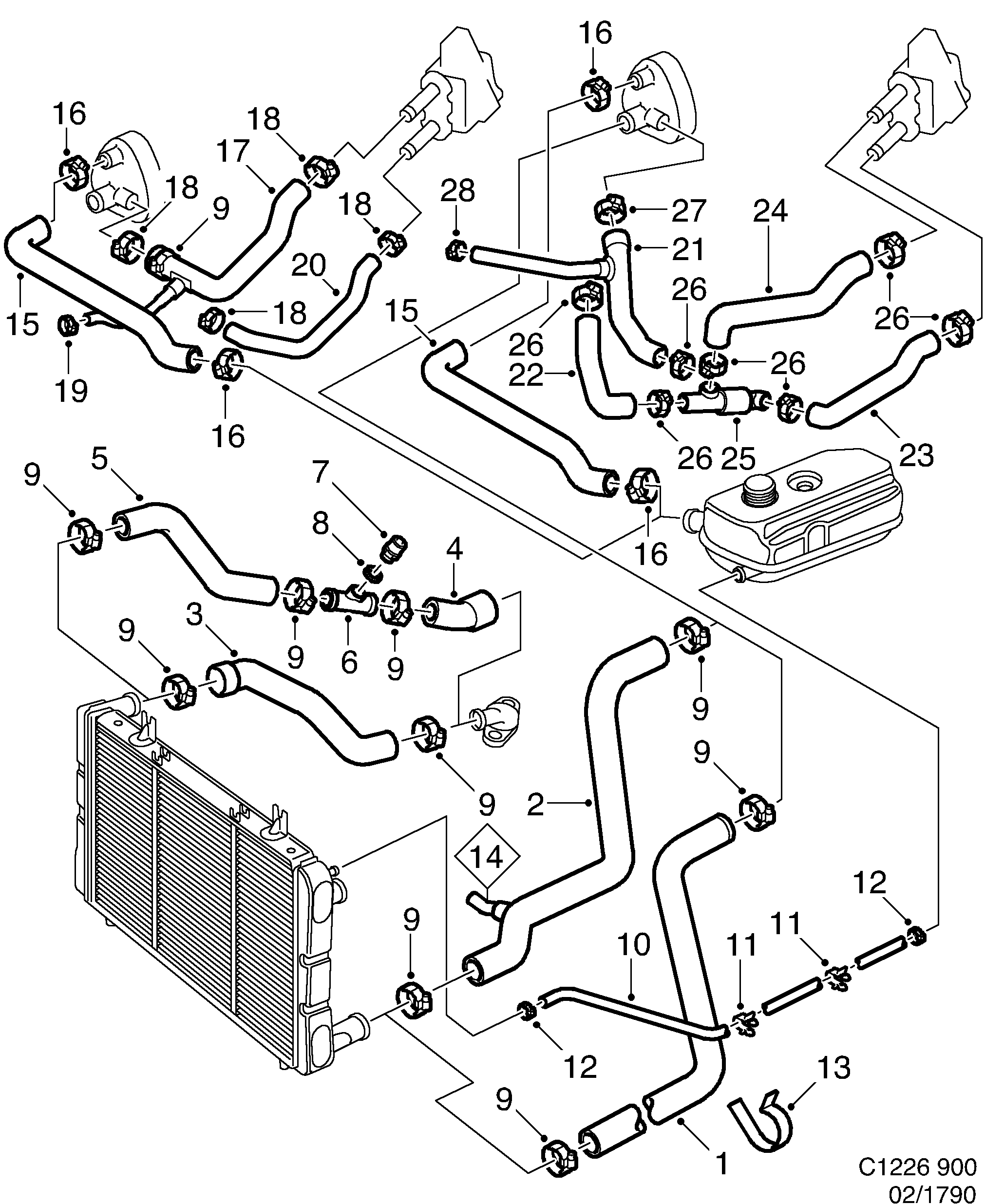

Saab 900 Water hoses, etc diagram

Pos	Article	Part No.
1	Hose	7512817
2	Hose	4029849
3	Hose	9369950
4	Hose	7546161
5	Hose	7546179
6	Pipe elbow	9332826
6	Tube	9345091
7	Thermo contact	4086716 (replaces 9526534)
7	Thermo contact	4086724 (replaces 9526526)
7	Thermo contact	4086724
8	Seal	8330268
9	Hose clamp	7970106
10	Hose	4029153
11	Clip	11900515 (replaces 8536419)
12	Hose clamp	7970031
13	Bracket	9344524
15	Hose	9349382
16	Hose clamp	7970098
17	Hose	7541527
17	Hose	7513435
19	Hose clamp	90572589 (replaces 7970056)
19	Hose clamp	7970049
20	Hose	7545544
21	Hose	4284311
21	Hose	4284436
22	Hose	4284303
23	Hose	4121695
24	Hose	4121703
25	By-pass valve	4073706
26	Hose clamp	7970080
