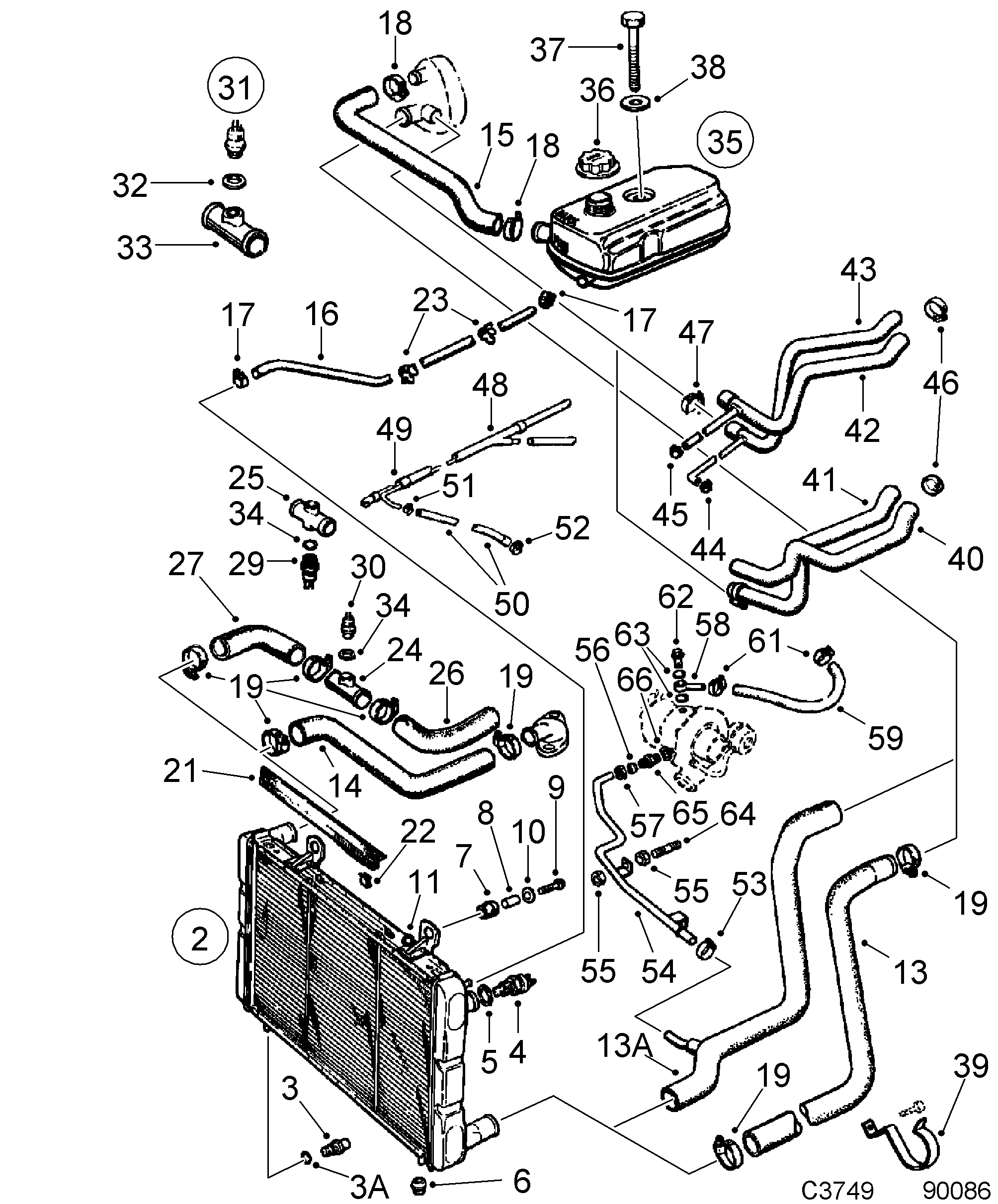

Group 2 Engine, section 1780
| Pos | Article | Part No. |
|---|---|---|
| 2 | Radiator | 7549280 (replaces 7541063) |
| 2 | Radiator | 7549280 |
| 2 | Radiator | 7549298 (replaces 7541071) |
| 2 | Radiator | 7549298 |
| 3 | Drain valve | 9318304 |
| 3 | Drain valve | 7549389 |
| 3A | O-ring | 7975725 |
| 4 | Thermo contact | 4086708 (replaces 8569238) |
| 4 | Thermo contact | 8547572 |
| 4 | Thermo contact | 4086708 (replaces 9526518) |
| 5 | Seal | 8330268 |
| 6 | Rubber bushing | 8339657 |
| 7 | Rubber bushing | 7513724 |
| 8 | Spacer | 7513716 |
| 9 | Screw | 7975436 |
| 10 | Washer | 7987506 (replaces 7975469) |
| 11 | Nut | 11900428 (replaces 7971658) |
| 13 | Hose | 9364795 |
| 13 | Hose | 7512817 |
| 13A | Hose | 7548837 |
| 14 | Hose | 7540420 |
| 15 | Hose | 9349382 |
| 16 | Hose | 9330515 |
| 16 | Hose | 4029153 |
| 17 | Hose clamp | 7970031 |
| 18 | Hose clamp | 7970098 |
| 19 | Hose clamp | 7970106 |
| 21 | Sealing strip | 7541857 |
| 21 | Sealing strip | 4029013 |
| 21 | Sealing strip | 4120069 |
| 22 | Clamp | 7543911 |
| 23 | Clip | 11900515 (replaces 8536419) |
| 24 | Pipe elbow | 9332826 |
| 25 | Tube | 9345091 |
| 26 | Hose | 7543259 |
| 27 | Hose | 9332818 |
| 29 | Switch | 4086716 (replaces 8573586) |
| 29 | Thermo contact | 4086716 (replaces 9526534) |
| 29 | Thermo contact | 4086724 (replaces 8572331) |
| 29 | Switch | 4086724 (replaces 9552878) |
| 29 | Thermo contact | 4086724 (replaces 9526526) |
| 31 | Switch | 4086724 (replaces 8820797) |
| 32 | Seal | 8820813 |
| 33 | Pipe elbow | 4086724 (replaces 8820821) |
| 35 | Expansion tank | 7549876 (replaces 9363557) |
| 35 | Expansion tank | 7549876 |
| 36 | Cover | 4395570 (replaces 8335069) |
| 36 | Cover | 4395570 (replaces 7577323) |
| 37 | Screw | 8084055 |
| 38 | Washer | 8371650 |
| 39 | Bracket | 9344524 |
| 40 | Hose | 9324658 |
| 40 | Hose | 9324666 |
| 41 | Hose | 9324609 |
| 42 | Hose | 7520174 |
| 43 | Hose | 7513435 |
| 43 | Hose | 7541527 |
| 44 | Hose clamp | 90572589 (replaces 7963515) |
| 45 | Hose clamp | 7970049 |
| 45 | Hose clamp | 90572589 (replaces 7970056) |
| 46 | Hose clamp | 7970098 (replaces 7963556) |
| 47 | Hose clamp | 7970080 (replaces 7963549) |
| 48 | Hose | 7560360 |
| 49 | Tube | 7516875 |
| 50 | Hose | 7519531 |
| 52 | Hose clamp | 90530642 (replaces 8359275) |
| 54 | Tube | 7549918 (replaces 7548845) |
| 54 | Tube | 7549918 |
| 54 | Tube | 7549926 (replaces 7548852) |
| 54 | Tube | 7549926 |
| 55 | Nut | 11900429 (replaces 7967953) |
| 56 | Ferrule | 8132227 |
| 57 | Nut | 8145542 |
| 58 | Tube | 7588718 |
| 59 | Hose | 7588122 |
| 62 | Screw | 7583628 |
| 63 | Gasket | 8124158 |
| 64 | Stud | 7549991 |
| 64 | Stud | 7599509 |
| 65 | Nipple | 7584790 |
