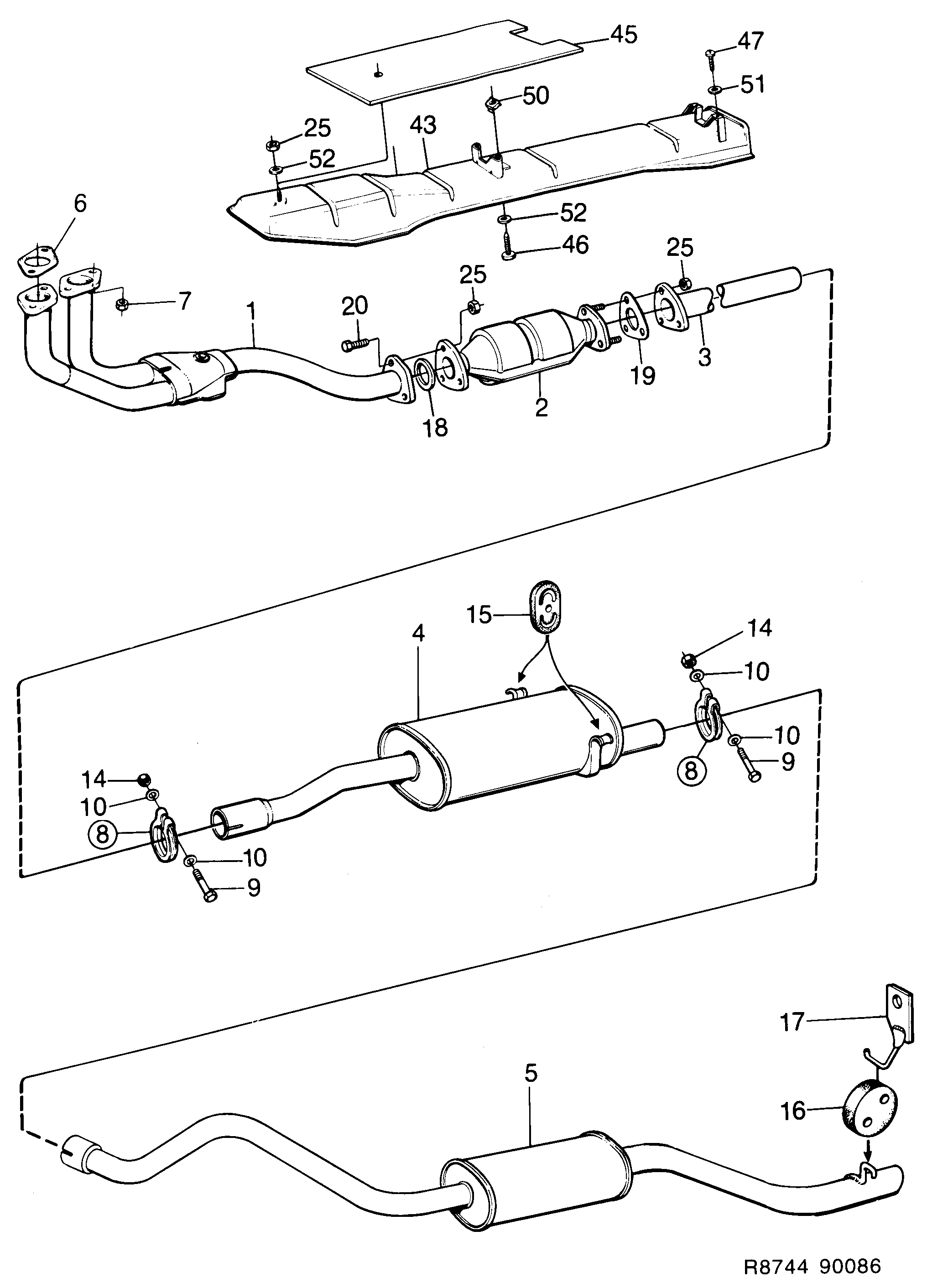

Group 2 Engine, section 1690
| Pos | Article | Part No. |
|---|---|---|
| 1 | Exhaust pipe | 5466214 |
| 2 | Three way catalytic converter | 7533797 (replaces 7533532) |
| 2 | Three way catalytic converter | 4440046 |
| 3 | Exhaust pipe | 5466768 (replaces 7533904) |
| 4 | Muffler | 5466198 |
| 5 | Muffler | 5466180 (replaces 9349176) |
| 5 | Muffler | 5466180 |
| 6 | Gasket | 8980328 |
| 7 | Nut | 7979503 (replaces 7967870) |
| 8 | Clamp | 8386450 |
| 9 | Screw | 32000289 (replaces 8084014) |
| 10 | Washer | 9319047 |
| 14 | Nut | 8073942 |
| 14 | Nut | 8151060 |
| 15 | Rubber mounting | 9328105 |
| 16 | Rubber mounting | 9365404 |
| 17 | Bracket | 9368093 |
| 18 | Ring | 8328726 |
| 19 | Gasket | 4024089 (replaces 8387052) |
| 20 | Screw | 7967789 |
| 25 | Nut | 8074106 |
| 25 | Nut | 8151235 |
| 43 | Heat shield | 4021598 (replaces 9349804) |
| 46 | Screw | 9368218 |
| 47 | Screw | 7922503 |
| 50 | Cage nut | 7970437 |
| 51 | Washer | 8029951 |
| 52 | Washer | 92153033 (replaces 8029985) |
| Muffler kit | 8819690 | |
| Mounting kit | 7538440 | |
| Mounting kit | 8818577 | |
| Mounting kit | 9321555 |
