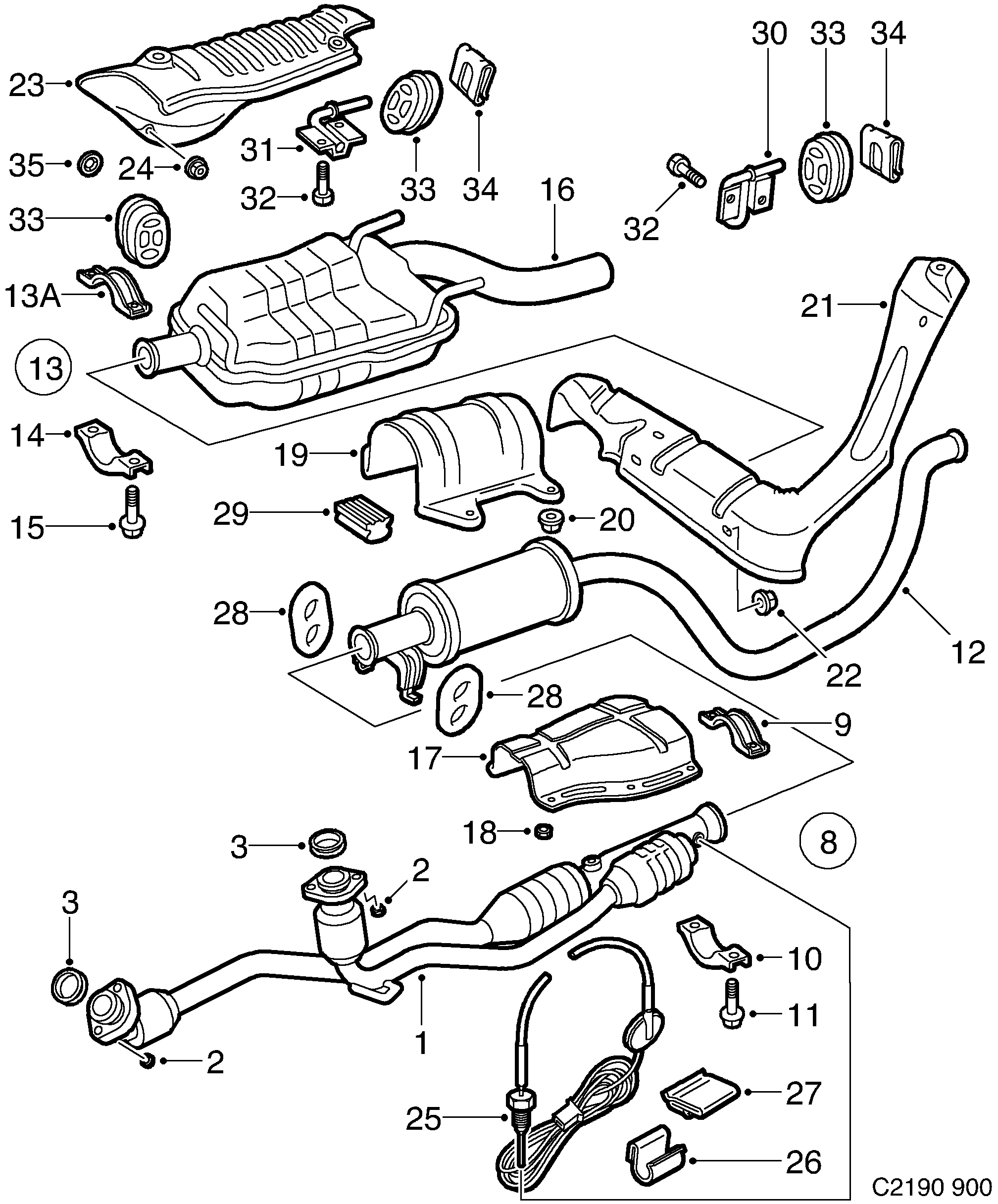

Group 2 Engine, section 1650
| Pos | Article | Part No. |
|---|---|---|
| 1 | Three way catalytic converter | 4526885 |
| 2 | Nut | 4685830 (replaces 4347902) |
| 3 | Exhaust gasket | 4443958 |
| 8 | Exhaust pipe clamp | 5465950 |
| 9 | Exhaust pipe clamp | 4229829 |
| 10 | Exhaust pipe clamp | 4229811 |
| 11 | Screw | 55566034 (replaces 7978190) |
| 12 | Muffler | 5467196 (replaces 4444188) |
| 12 | Muffler | 4876009 |
| 16 | Muffler | 5467204 (replaces 4528261) |
| 17 | Heat shield | 4235347 |
| 17 | Heat shield | 5324058 (replaces 4728663) |
| 18 | Hexagon nut | 11089471 (replaces 4345138) |
| 18 | Nut | 12802365 (replaces 4087664) |
| 19 | Heat shield | 4394235 |
| 19 | Heat shield | 4750949 |
| 21 | Heat shield | 4235362 |
| 23 | Heat shield | 4394128 |
| 25 | Sensor | 4433488 |
| 26 | Clip | 4433561 |
| 27 | Clip | 4433579 |
| 28 | Rubber mounting | 4235396 |
| 29 | Rubber damper | 4235412 |
| 30 | Bracket | 4229225 |
| 31 | Bracket | 4229209 |
| 32 | Screw | 92153212 (replaces 7972623) |
| 33 | Rubber mounting | 4235404 |
| 34 | Clip | 92152112 (replaces 4229910) |
| 35 | Lock washer | 4087722 |
