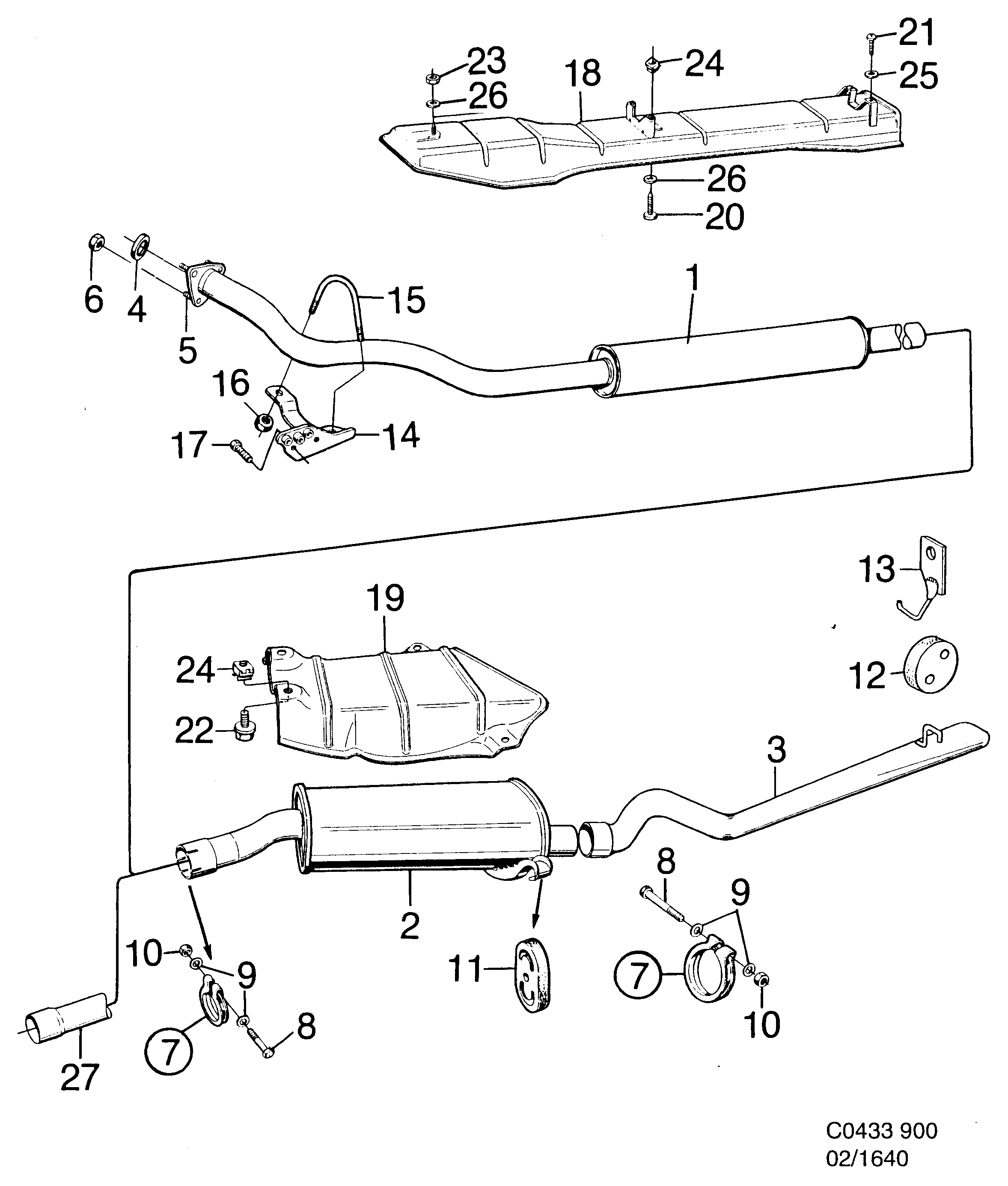

Group 2 Engine, section 1640
| Pos | Article | Part No. |
|---|---|---|
| 1 | Muffler | 5466206 |
| 2 | Muffler | 9349192 (replaces 8822280) |
| 3 | Exhaust pipe | 5466990 (replaces 7512254) |
| 3 | Exhaust pipe | 5466990 (replaces 7535925) |
| 4 | Seal | 9316407 |
| 5 | Stud | 7520224 (replaces 8367856) |
| 6 | Lock nut | 55557005 (replaces 7965767) |
| 7 | Clamp | 8336406 |
| 8 | Screw | 8084030 |
| 9 | Washer | 9319047 |
| 10 | Nut | 8151235 |
| 11 | Rubber mounting | 9328105 |
| 12 | Rubber mounting | 9365404 |
| 13 | Bracket | 9368093 |
| 14 | Brace | 7526916 |
| 15 | Brace | 9317058 |
| 17 | Screw | 55562873 (replaces 8082968) |
| 17 | Screw | 9166331 |
| 18 | Heat shield | 4021598 (replaces 9349804) |
| 18 | Shield | 4021598 |
| 19 | Shield | 7511645 |
| 20 | Screw | 9368218 |
| 21 | Screw | 7922503 |
| 22 | Screw | 7528953 |
| 24 | Cage nut | 7970429 |
| 25 | Washer | 8029951 |
| 25 | Washer | 9166364 |
| 26 | Washer | 92153033 (replaces 8029985) |
| 27 | Extension | 9397845 |
| Muffler kit | 8819708 | |
| Mounting kit | 7538440 | |
| Mounting kit | 9321563 | |
| Catalytic converter kit | 4393781 |
