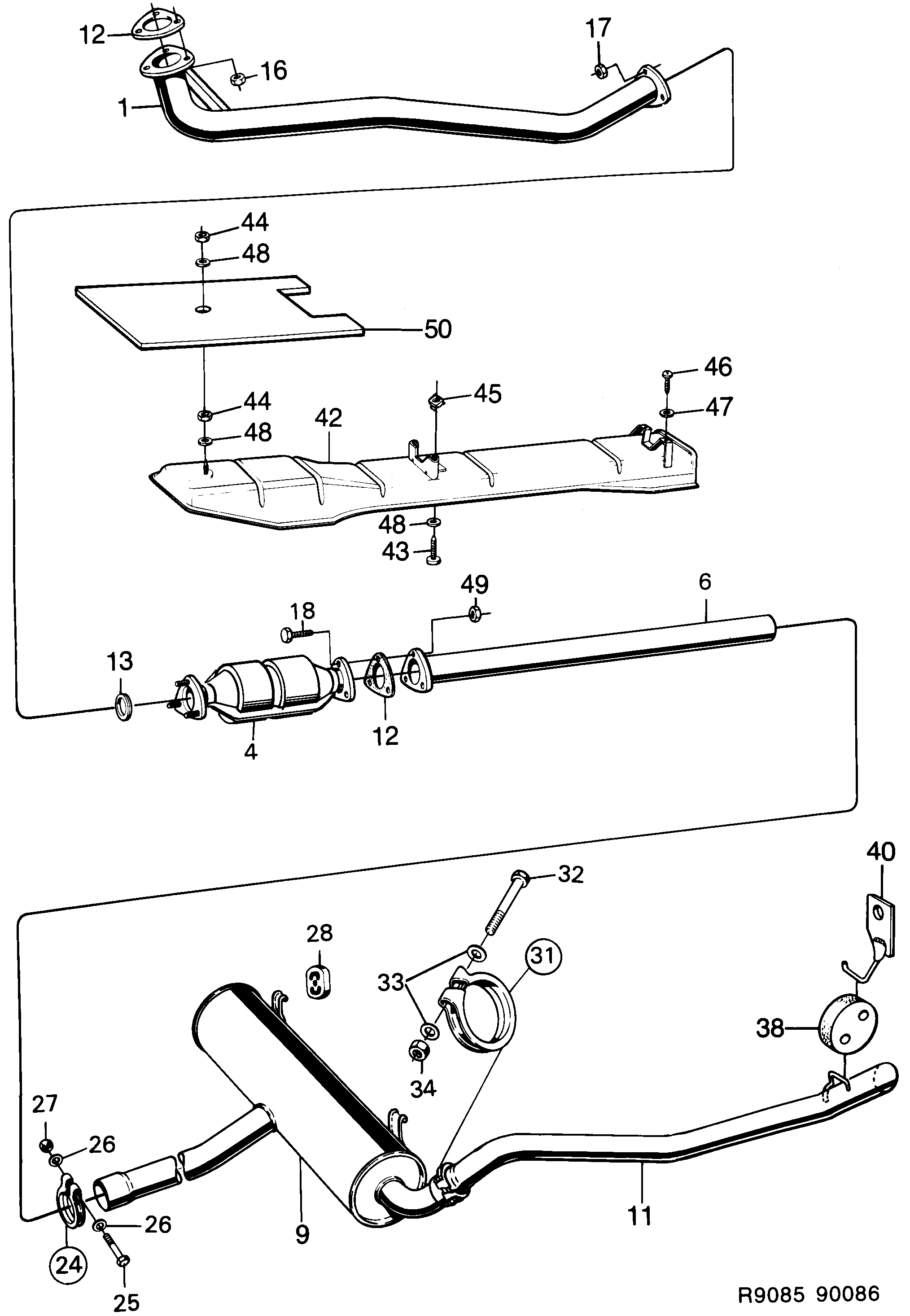

Group 2 Engine, section 1630
| Pos | Article | Part No. |
|---|---|---|
| 1 | Exhaust pipe | 7514250 |
| 4 | Three way catalytic converter | 9332461 |
| 6 | Exhaust pipe | 5466792 (replaces 9333840) |
| 9 | Muffler | 5466164 (replaces 9326448) |
| 11 | Exhaust pipe | 5467063 (replaces 9365727) |
| 12 | Gasket | 4024089 (replaces 8387052) |
| 13 | Ring | 8328726 |
| 16 | Lock nut | 7968415 (replaces 7970296) |
| 16 | Lock nut | 55557005 (replaces 7965767) |
| 17 | Nut | 8074106 |
| 17 | Nut | 8151235 |
| 18 | Screw | 7967789 |
| 24 | Clamp | 8386450 |
| 25 | Screw | 32000289 (replaces 8084014) |
| 26 | Washer | 9319047 |
| 27 | Nut | 8073942 |
| 27 | Nut | 8151060 |
| 28 | Rubber mounting | 9328105 |
| 31 | Clamp | 8384323 |
| 32 | Screw | 8084006 |
| 38 | Rubber mounting | 9365404 |
| 40 | Bracket | 9368093 |
| 42 | Heat shield | 4021598 (replaces 9349804) |
| 43 | Screw | 9368218 |
| 45 | Cage nut | 7970429 |
| 46 | Screw | 7922503 |
| 47 | Washer | 7910540 |
| 48 | Washer | 7910557 |
| 49 | Nut | 30509159 (replaces 7974264) |
| Mounting kit | 8818577 | |
| Muffler kit | 8817850 | |
| Muffler kit | 8819930 | |
| Mounting kit | 7538440 |
