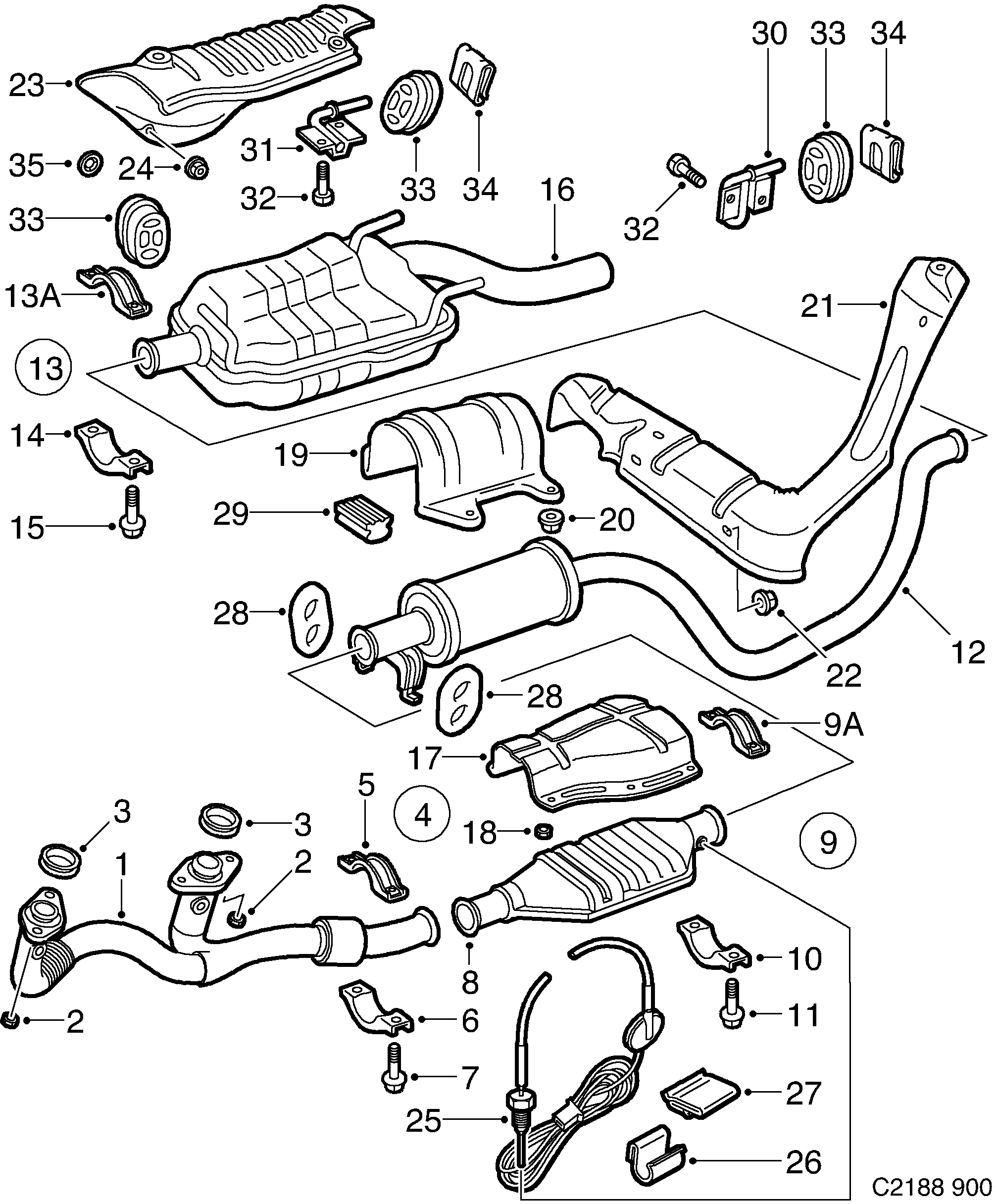

Group 2 Engine, section 1590
| Pos | Article | Part No. |
|---|---|---|
| 1 | Exhaust pipe | 4229852 |
| 2 | Lock nut | 4685830 (replaces 4087896) |
| 3 | Exhaust gasket | 4443958 |
| 4 | Exhaust pipe clamp | 5465950 |
| 5 | Exhaust pipe clamp | 4229829 |
| 6 | Exhaust pipe clamp | 4229811 |
| 7 | Screw | 55566034 (replaces 7978190) |
| 8 | Three way catalytic converter | 4229860 |
| 8 | Three way catalytic converter | 4526968 |
| 8 | Three way catalytic converter | 4229878 |
| 8 | Three way catalytic converter | 4526976 |
| 12 | Muffler | 4966859 (replaces 4226320) |
| 16 | Muffler | 5467204 (replaces 4235990) |
| 17 | Heat shield | 4235347 |
| 18 | Hexagon nut | 11089471 (replaces 4345138) |
| 19 | Heat shield | 4394235 |
| 21 | Heat shield | 4235362 |
| 23 | Heat shield | 4394128 |
| 25 | Sensor | 4433488 |
| 26 | Clip | 4433561 |
| 27 | Clip | 4433579 |
| 28 | Rubber mounting | 4235396 |
| 29 | Rubber damper | 4235412 |
| 30 | Bracket | 4229225 |
| 31 | Bracket | 4229209 |
| 32 | Screw | 92153212 (replaces 7972623) |
| 33 | Rubber mounting | 4235404 |
| 34 | Clip | 92152112 (replaces 4229910) |
| 35 | Lock washer | 4087722 |
