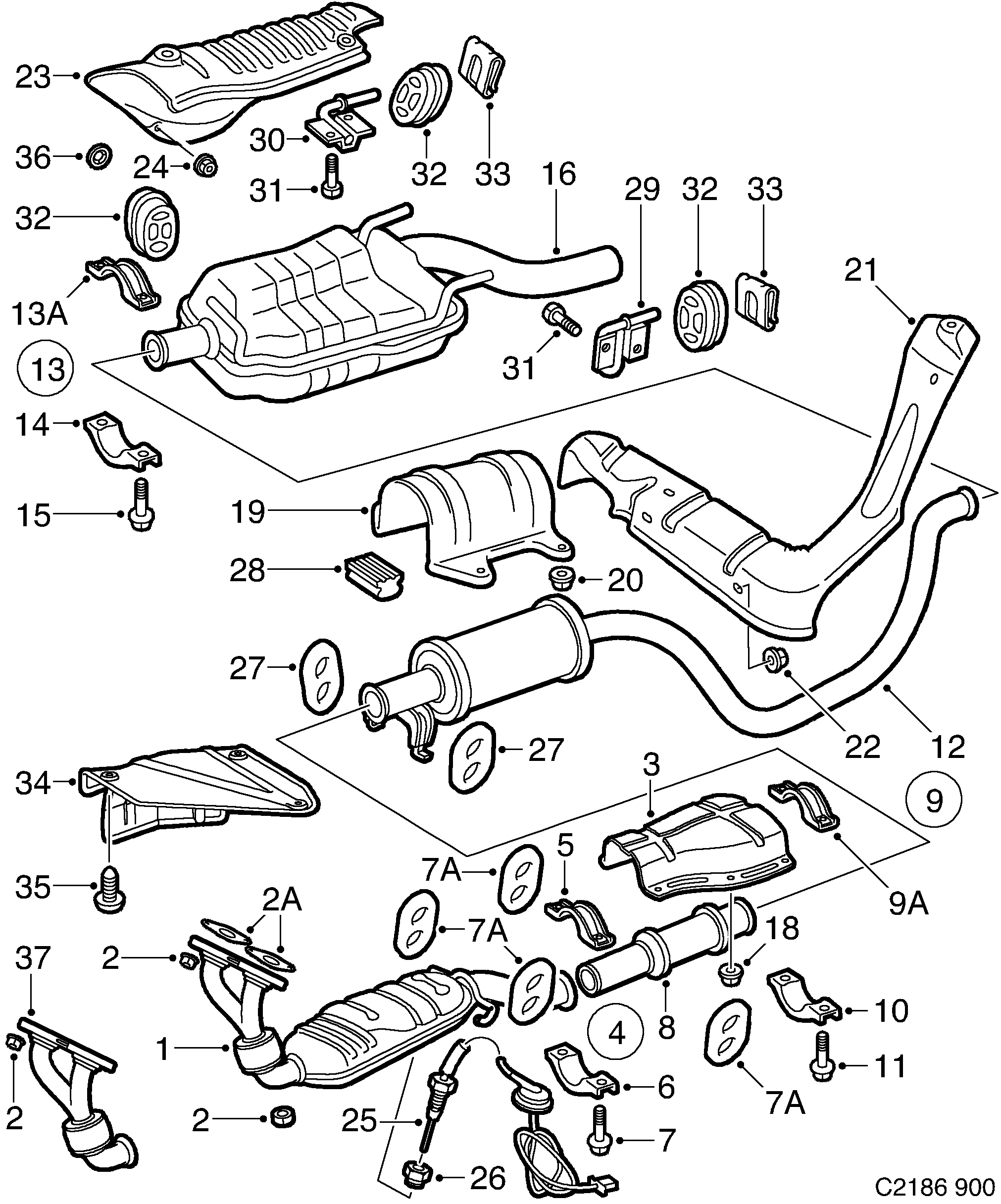

Group 2 Engine, section 1530
| Pos | Article | Part No. |
|---|---|---|
| 1 | Three way catalytic converter | 93167223 (replaces 4445433) |
| 1 | Three way catalytic converter | 93167223 (replaces 4878682) |
| 1 | Three way catalytic converter | 93167223 (replaces 4878690) |
| 1 | Three way catalytic converter | 4526844 |
| 2 | Nut | 7979503 |
| 2A | Gasket | 4624383 |
| 3 | Heat shield | 5324058 (replaces 4728663) |
| 4 | Exhaust pipe clamp | 5465950 |
| 5 | Exhaust pipe clamp | 4229829 |
| 6 | Exhaust pipe clamp | 4229811 |
| 7 | Screw | 55566034 (replaces 7978190) |
| 7A | Rubber mounting | 9365404 |
| 8 | Intermediate pipe | 4750741 (replaces 4445516) |
| 8 | Intermediate pipe | 4750741 |
| 12 | Muffler | 4966859 (replaces 4226320) |
| 12 | Muffler | 4966859 (replaces 4960936) |
| 16 | Muffler | 5174990 (replaces 4225751) |
| 16 | Muffler | 5174990 (replaces 4528287) |
| 18 | Hexagon nut | 11089471 (replaces 4345138) |
| 19 | Heat shield | 4394235 |
| 19 | Heat shield | 4750949 |
| 21 | Heat shield | 4235362 |
| 23 | Heat shield | 4394128 |
| 25 | Sensor | 4433488 |
| 25 | Sensor | 4587515 |
| 26 | Reduction nipple | 4226395 |
| 27 | Rubber mounting | 4235396 |
| 28 | Rubber damper | 4235412 |
| 29 | Bracket | 4229225 |
| 30 | Bracket | 4229209 |
| 31 | Screw | 92153212 (replaces 7972623) |
| 32 | Rubber mounting | 4235404 |
| 33 | Clip | 92152112 (replaces 4229910) |
| 33 | Clip | 92152112 (replaces 4685608) |
| 34 | Heat shield | 9144676 |
| 35 | Screw | 7971294 |
| 36 | Lock washer | 4087722 |
| 37 | Exhaust pipe | 5171798 |
